All stock codes associated to this product
ARCHERVR500V, ARCHER VR500V, NWTLARCHERVR500V, NWTL-ARCHERVR500V, 6935364081188

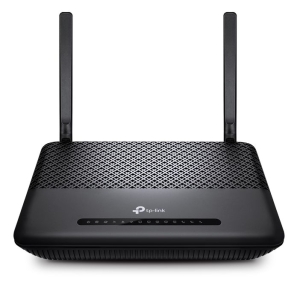

TP-Link Archer VR500v AC1200 Wireless Dual Band Gigabit VoIP
VDSL/ADSL Modem Router
- Superfast Wi-Fi 300Mbps (2.4GHz) and 867Mbps (5GHz) speeds,
are ideal for online gaming, HD streaming, and large file downloads
- Superior Range Two fixed antennas provide stable wireless
connections and optimal coverage
- Versatile Connectivity With DSL, EWAN, and USB ports, the Archer VR500v is
fully compatible with DSL connections, fiber/cable access and 3G/4G USB
dongles

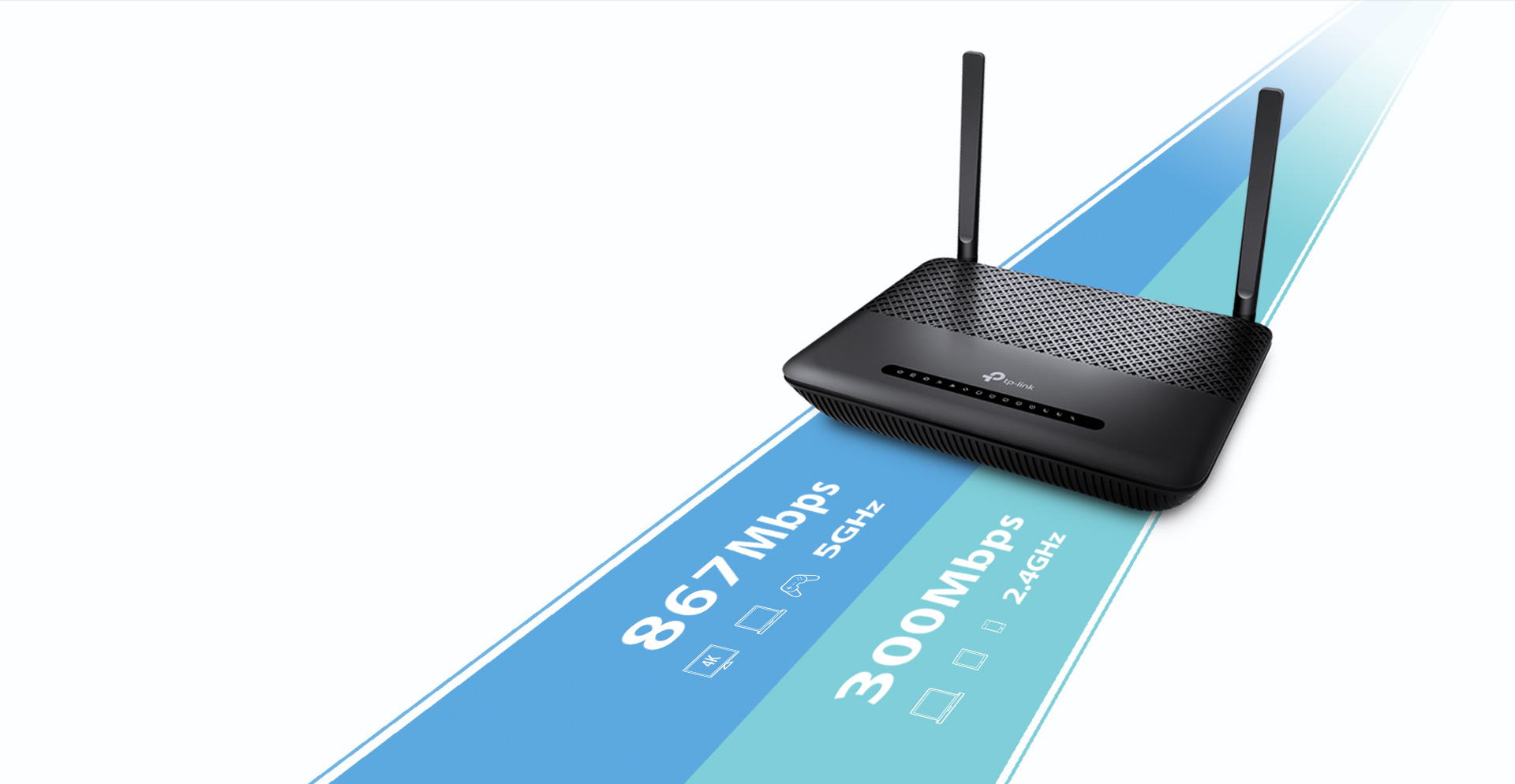

Superfast Wi-Fi - Up to 1.2Gbps
Provides combined dual-band Wi-Fi speeds of up to 1.2Gbps, including 300Mbps
on the 2.4GHz band and 867Mbps on the 5GHz band, ideal for online gaming, HD
streaming, and large file downloads
Upgrade Your Home Entertainment
The Archer VR500v unlocks the full potential of your internet connection by
providing combined dual-band Wi-Fi speeds of up to 1.2Gbps and impressive
broadband speeds of up to 100Mbps, helping all your devices reach peak
performance.

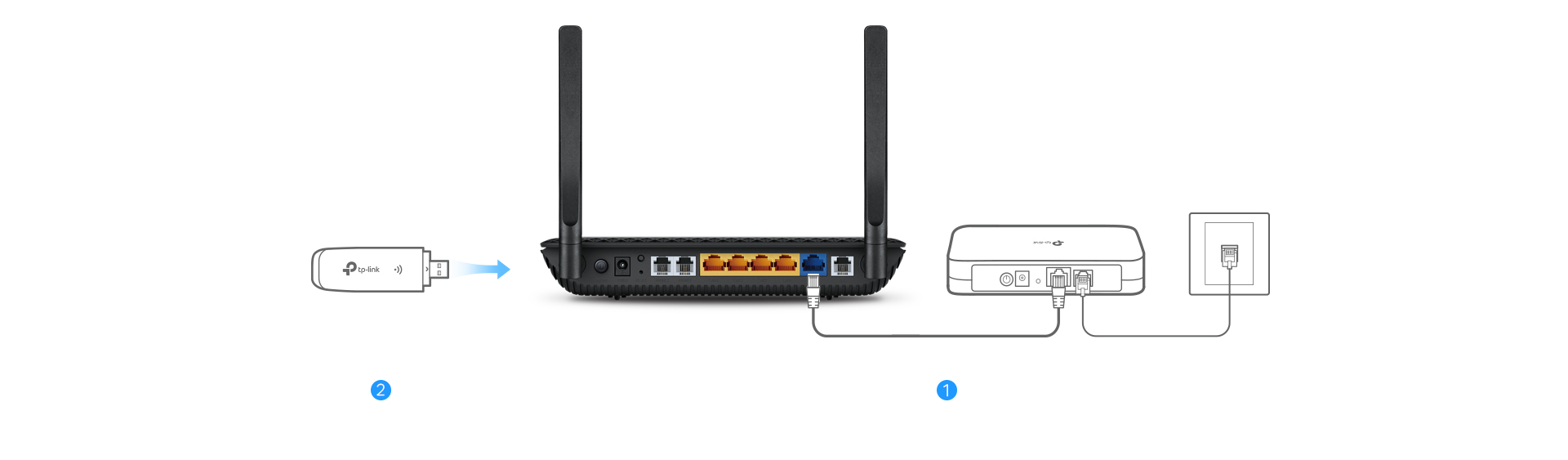

Versatile Connectivity
With DSL, EWAN, and USB ports, the Archer VR500v is fully compatible with DSL
connections, fibre/cable access and 3G/4G USB dongles
- Ethernet WAN Connection
- 3G/4G Dongle Connection
Complete Telephone Functionality
Various call features such as caller ID, call waiting, call holding, call
forwarding, call restrictions, 3-way conference calls, voice activity detection
and voicemail

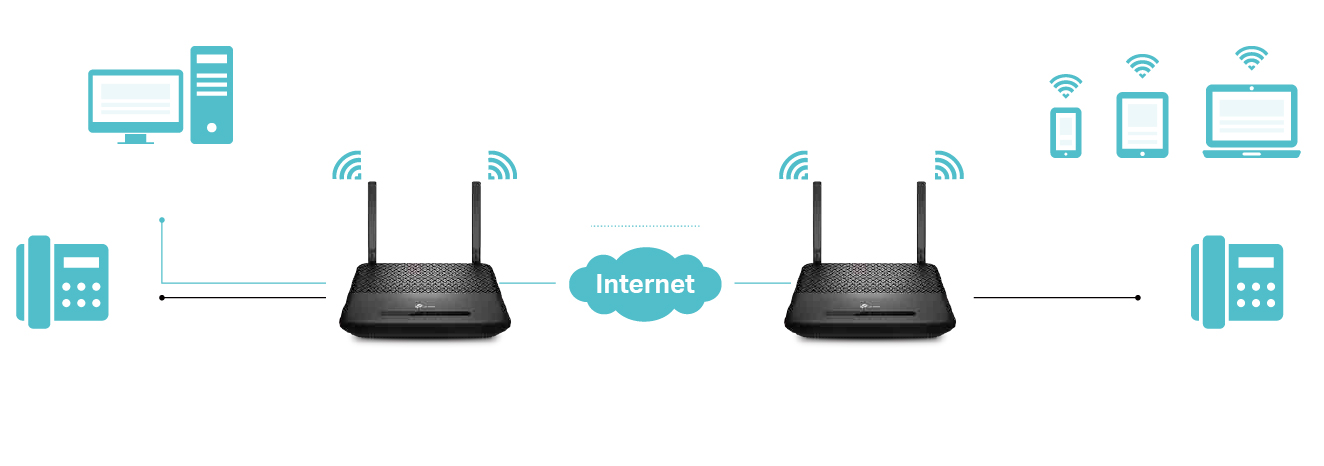

VoIP Calls
With 2 FXS ports, users can make or receive phone calls over the Internet
simply by connecting the device to their existing telephone set.

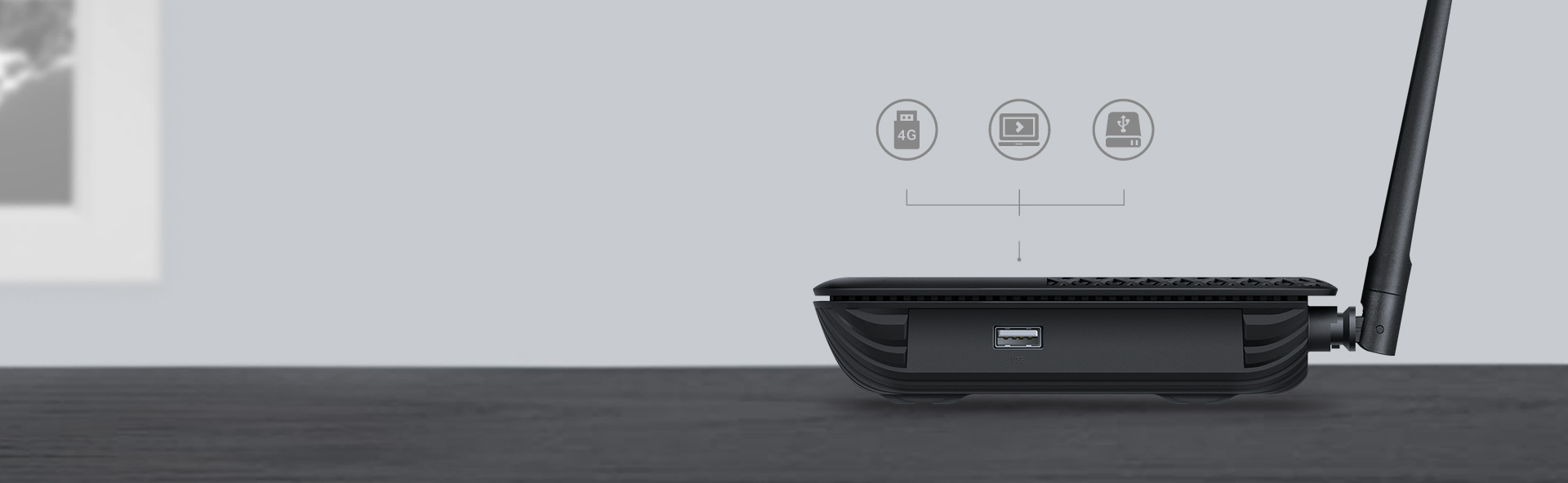

USB Port
Supports storage sharing, FTP and media servers as well as a 3G/4G
dongle
Full Gigabit Wired Connections
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10
faster than standard Ethernet connections. The Archer VR500v can provide robust
and high-speed connections to all of your favourite wired devices, including
game consoles, smart TVs, DVRs, and more.
Specifications
| HARDWARE FEATURES |
| Interface |
4 10/100/1000Mbps RJ 45 LAN Ports
1 10/100/1000Mbps RJ 45 WAN
Port
3 RJ11 Ports(1 DSL Port + 2 FXS Ports)
1 USB 2.0 Port |
| Button |
WPS/Wireless On/Off Button(2.4GHz &5GHz),Power On/Off Button
|
| Power Supply |
12V/1.5A |
| Wireless Standards |
IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz |
| IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards |
ITU-T G.993.2, Up to 30a profile (POTS)
ITU-T G.993.5
(G.vector)
ITU-T G.998.4 (G.INP |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T
G.992.2(G.Lite), |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
|
| ADSL2+ Standards |
ITU-T G.992.5 Annex A/M |
| Dimensions ( W x D x H ) |
217.7*155.5*36.8mm |
| Antenna Type |
2 External Fixed dual band antennas |
| Antenna Gain |
3dBi for 2.4G/ 4dBi for 5G |
| Antenna Beamwidth |
Omni, Dual Band External Fixed Antenna, 3dBi for 2.4G/ 4dBi for 5G
|
| Compatibility |
NBN - Fibre to the Node (FTTN) - DSL Modem Router Mode.
NBN - Fibre
to the Building (FTTB) - DSL Modem Router Mode.
NBN - Fibre to the
Premises (FTTP) - Wireless Router Mode.
NBN - Fibre to the Home (FTTH)
- Wireless Router Mode.
NBN - Hybrid Fibre Coaxial (HFC) - Wireless
Router Mode.
For further information on NBN connections please
visit:
https://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
|
| WIRELESS FEATURES |
| Frequency |
2.4GHz and 5GHz (Not Supports DFS) |
| Signal Rate |
867Mbps at 5GHz, 300Mbps at 2.4GHz |
| Transmit Power |
2.4GHz <20dBm
5GHz <23dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless
Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions
|
| SOFTWARE FEATURES |
| Quality of Service |
Bandwidth Control |
| Security |
NAT Firewall, Access Control,
IP and MAC Address Binding |
| Operating Modes |
VDSL2 Modem Router
Wireless Router
3G/4G Router |
| Management |
Web based configuration(HTTP)
SNMP v1/v2c
CWMP(TR-069) |
| DHCP |
Server, Client, DHCP Client List, Address Reservation,
DHCP Relay
|
| Port Forwarding |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, IPSec Passthrough |
| Protocols |
Supports IPv4 and IPv6 |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet
(RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge
(RFC1483 Bridge), PVC Up to 8 PVCs |
| Advanced Functions |
Parental Control, Network Address Translation(NAT),
Port
Mapping(Grouping), Static Routing, RIP
v1/v2(optional), DNS
Relay,
DDNS, IGMP V1/V2/V3 |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server, 3G/4G Modem |
| IPSec VPN |
Supports up to 16 IPSec VPN tunnels c |
| OTHERS |
| Certification |
CE, RoHS,Broadsoft |
| Package Contents |
DSL VoIP Modem Router Archer VR500v
External Splitter
RJ11 DSL
Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
|
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 7, 8,
8.1,10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox
12.0, Chrome 20.0,
Safari 4.0, or other Java-enabled browser
Cable
or DSL Modem Subscription with an Internet Service Provider (for Internet
access) |
| Environment |
Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70
(-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage
Humidity: 5%~90% non-condensing |
