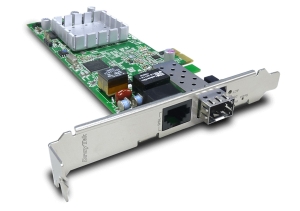

Draytek DVNIC132F VigorNIC
132F
Features
- Support IPv6 & IPv4 network
- Firewall with URL filtering
- Support Windows8 & Ubuntu
- Multi-PVC for triple-play application
- Built-in VDSL2 modem for easy Internet access

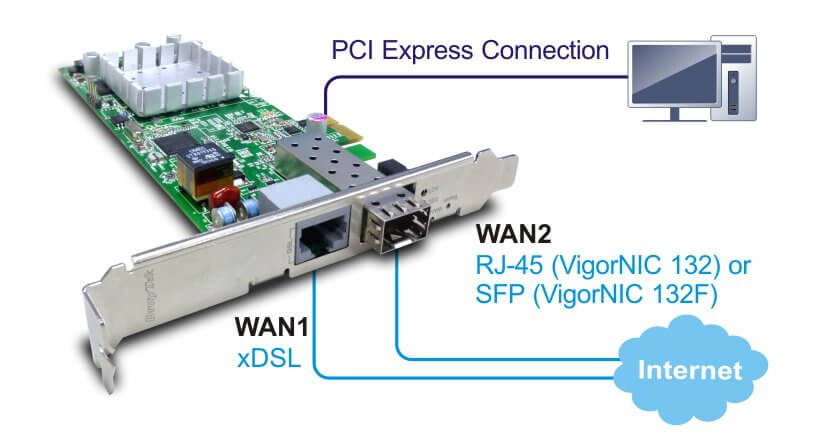

- Dual port for Internet backup
Overview
VigorNIC 132 series, as a comprehensive network card, can be installed inside
the network server frame. It is designed for the usage of industrial and server
field. Unlike using the Ethernet interface, VigorNIC 132 series can be directly
connected to the POTS line. It can also be connected to the fiber network with
external fiber modules. The back-up function makes sure the immediate recovery
of service activated between different lines.
In addition, in response to different network environments and different user
needs, VigorNIC 132 series is not just a network card but also a router with
DrayTek owned DrayOS software inside. The built-in DrayOS system allows users to
set it to bridge mode or router mode based on different environment. It also
provides an object firewall functions. With the high-speed PCI-e bus interface,
VigorNIC 132 series can avoid congestion and packet delay. Besides, the PCI-e
interface also offers power directly to save the power consideration and has the
advantage of lightning or power surges protection. Moreover, the maximum power
consumption of VigorNIC 132 series is only 6 watts.
Specifications
VigorNIC 132 Series Front panel
|
Hardware
Interface |
1 x VDSL2/ADSL2+ port
with RJ-11 for Annex A (WAN1) |
|
1 x SFP Fiber Ethernet
(WAN2) |
|
1 x PCI express 1.1 Bus
with (x1) Connector |
|
1 x Factory Reset
Button |
|
|
|
Temperature
Operating |
|
|
Operating |
0°C ~
45°C |
|
Storage |
-25°C ~ 70°C |
|
|
|
Humidity |
10% ~ 90%
(non-condensing) |
|
|
|
Power |
PCI Express 12V and
3.3V |
|
|
|
Power
Consumption |
6
watt |
|
|
|
Dimension and
Weight |
WxDxH = 120.9 x 166.5 x
21.6 mm (Standard Profile ), 86.5g |
|
WxDxH = 80.1 x 166.7 x
23 mm (Low Profile ), 81.1g |
ADSL2/2+ & VDSL2
- Compliant with ITU-T VDSL2 G.993.2
- Compliant with ITU-T G.vectoring
- Auto Fall back to ADSL2/2+
- ANSI T1.413 Issue2
- ITU-T G.992.1 G.dmt
- ITU-T G.992.3 ADSL2 (G.dmt.bis)
- ITU-T G.992.5 ADSL2+
- VDSL Band Plan: 997, 998
- VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
- Annex A, Annex B, Annex M, Annex J
- Loop diagnostic Mode
- Compatible with POTS/PSTN
IP Version
- IPv4
- IPv6
- Tunnel Mode: TSPC, AICCU, 6in4, 6rd
- Dual Stack: PPP, DHCPv6 Client, Static IPv6
WAN Protocol
- DHCP Client
- Static IP
- PPPoE
- PPPoA (ADSL2/2+ only)
- MPoA (RFC1483/2684)
- PPTP/L2TP (VDSL2 only)
- 802.1q VLAN Tagging
Content Security Management
URL Content Filter:
- URL Keyword Filter (White List and Black List)
- Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File
Blocking

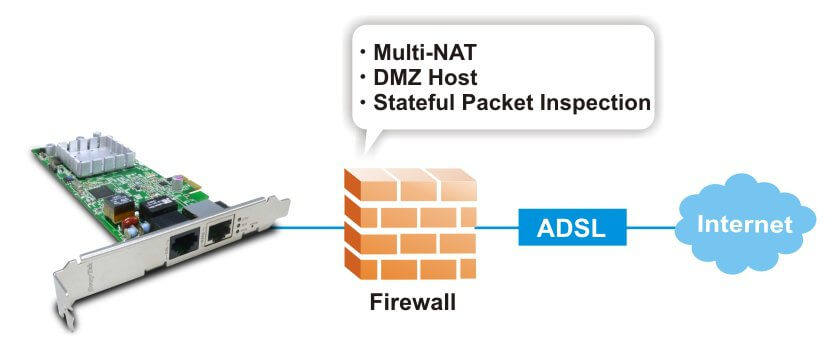

Firewall
- DMZ Host, Port-redirection(Up to 20 entries) and Open Port(Up to 20
entries)
- MAC Address Filter
- SPI (Stateful Packet Inspection)
- DoS Prevention
- E-mail Alert and Logging via Syslog
- Time Schedule Control
- VPN Pass-through (IPsec, PPTP, L2TP)
Network Feature
- Router/Bridge Configurable
- IGMP Proxy V2/V3
- DHCP Client/Relay/Server
- UPnP 100 Sessions
- DNS Cache/Proxy
- Dynamic DNS
- NTP Client
- Static Route
Network Management
- Web-based User Interface (HTTP/HTTPS)
- Quick Start Wizard
- CLI (Command Line Interface, Telnet/SSH)
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/FTP/WUI/TR-069
- Administration Access Control
- Logging via Syslog
- TR-069 Compliance with VigorACS SI
- SNMP v1/v2c
Multiple-PVC/VLAN
- Multiple-PVC : up to 5 PVCs
- Triple-Play Application
- TR-069 Management with dedicated PVC
- Support PVC to PVC binding
Operating System
- Support Windows 8, 10 & Ubuntu
