All stock codes associated to this product
TLLPBWN781ND, TL-LPB-WN781ND

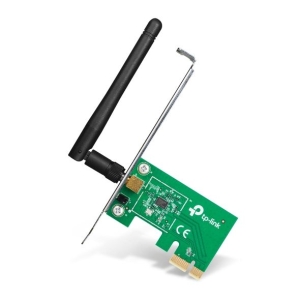

TP-Link TL-LPB-WN781ND 150Mbps Wireless N PCI Express
Adapter
Features
- Up to 150Mbps wireless transmission rate
- Provides PCI Express interface
- Advanced secure connection with WPA/WPA2 encryption
- Bundled utility enables easy management
Overview
TP-LINK TL-WN781ND is designed to provide a complete end-to-end wireless
performance from the server or server backbone to the switch infrastructure and
down through to the desktop with the PCI Express connector. TL-WN781ND Wireless
N PCI Express(x1) Adapter provides a wider compatibility, fitting with any
standard PCI Express slot, x1, x2, x8, or x16. Compared with standard PCI
network cards, it offers increased bandwidth, reliability and more
functionality, allowing you to enjoy a fast and advanced connection, such as
downloading, making internet call and video streaming.
Wireless N - Speed & Range
Complying with the IEEE 802.11n standard, TL-WN781ND can easily establish a
wireless network and get up to 9X the speed and 4X the range of conventional 11g
products. Compared with legacy 54M products, TL-WN781ND delivers performance
enhancements, allowing you to have a more joyful surfing experience, including
sharing files, watching streaming media.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from
intruders.
Detachable Antenna
The antenna can be replaced with diverse antennas to show even greater
flexibility and wider wireless coverage.
Specifications
|
HARDWARE
FEATURES |
|
|
Interface |
PCI
Express |
|
Dimensions
( W x D x H ) |
4.8
x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm) |
|
Antenna
Type |
Detachable
Omni Directional (RP-SMA) |
|
Antenna
Gain |
2dBi |
|
|
|
|
WIRELESS
FEATURES |
|
|
Wireless
Standards |
IEEE
802.11n, IEEE 802.11g, IEEE 802.11b |
|
Frequency |
2.400-2.4835GHz |
|
Signal
Rate |
11n:
Up to 150Mbps(dynamic) |
|
|
11g:
Up to 54Mbps(dynamic) |
|
|
11b:
Up to 11Mbps(dynamic) |
|
Reception
Sensitivity |
130M:
-68dBm@10% PER |
|
|
108M:
-68dBm@10% PER |
|
|
54M:
-68dBm@10% PER |
|
|
11M:
-85dBm@8% PER |
|
|
6M:
-88dBm@10% PER |
|
|
1M:
-90dBm@8% PER |
|
Transmit
Power |
<20dBm(EIRP) |
|
Wireless
Modes |
Ad-Hoc
/ Infrastructure mode |
|
Wireless
Security |
Support
64/128 bit WEP, WPA-PSK/WPA2-PSK |
|
Modulation
Technology |
DBPSK,
DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
|
|
|
|
OTHERS |
|
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |
Wireless
Adapter |
|
|
Detachable
Omni directional antenna |
|
|
Resource
CD |
|
|
Quick
Installation Guide |
|
System
Requirements |
Windows
8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits), Windows
XP(32/64bits) |
|
Environment |
Operating
Temperature: 0℃~40℃(32℉~104℉) |
|
|
Storage
Temperature: -40℃~70℃(-40℉~158℉) |
|
|
Operating
Humidity: 10%~90% non-condensing |
|
|
Storage
Humidity: 5%~90%
non-condensing |
