All stock codes associated to this product
AS2024P, AS2024-P, NHA-AS2024-P

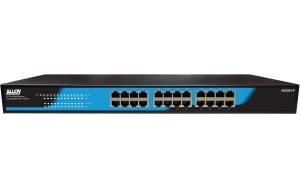

Alloy AS2024-P 24 Port Unmanaged Fast Ethernet 802.3at
PoE Switch, 250 Watts
Features
- 24 PoE+ IEEE 802.3at Power over Ethernet RJ-45 ports (802.3af compatible)
- Fully compliant to IEEE 802.3af and 802.3at PoE standards
- Fast Ethernet network speed
- Each PoE+ port provides up to 30 watts of power
- Up to 250 watts power budget
- Wirespeed performance - up to 4.8Gbps switching capacity
- Ideal for small and enterprise networks
- Robust all metal 19" rackmount case
- 19" Rackmount brackets included
- Industry-leading per port value
- Fast, plug and play deployment
- 3 Year Warranty
Overview
ALLOY AS2024-P 24 Port Unmanaged Fast Ethernet 802.3at PoE Switch, 250
Watts
The AS2024-P is an unmanaged, low cost Fast Ethernet Power over Ethernet
(PoE) rackmount switch, designed to support small density workgroups where
devices such as IP Phones require powering from the switch over UTP data
cable.
The AS2024-P is a rackmount switch with 24x 10/100Mbps PoE ports, fully
compliant to the IEEE 802.3at and af Power over Ethernet standards. All ports
are auto sensing, auto MDI/X, allowing easy connectivity to your existing
switching infrastructure and your PoE Powered Device (PD), such as IP Phones,
Wireless Access Points and IP Video Cameras. All ports support up to 10.4W of
power, with the switch supporting up to 250 watts total power. The switch is
powered by an internal power supply.
The AS2024-P is the ideal solution for adding low cost PoE capability to
support PoE powered devices on smaller networks.
Specifications
|
Standards |
IEEE
802.3 10Base-T Ethernet |
|
|
IEEE
802.3u 100Base-TX Fast Ethernet |
|
|
IEEE
802.3x Full Duplex Flow Control |
|
|
IEEE
802.3af Power over Ethernet |
|
|
IEEE
802.3at Power over Ethernet |
|
Physical
Ports |
24x
Fast Ethernet Ethernet 100Base-TX PoE ports |
|
|
|
|
Performance |
|
|
Switching
Capacity |
4.8Gbps |
|
Forwarding
Rate |
14880pps
(Ethernet); 148800pps (Fast Ethernet) |
|
MAC
Address Table Size |
4K |
|
PoE
Specifications |
|
|
Maximum
PoE power per port |
30
watts |
|
Maximum
PoE power per port (full load) |
10.4
watts |
|
Total
PoE Power support by Switch |
250
watts |
|
POE
Pins |
PoE
delivered on pins 4, 5, 7 and 8 |
|
Mechanical
Specifications |
|
|
Form
Factor |
19"
Rackmount case |
|
Dimensions |
440mm
x 200mm x 44mm (W x D x H) |
|
Weight |
2.5Kg
(5.62lbs) |
|
LED
Indicators |
System
Power, LINK/ACT, POE |
|
AC
input |
100-240VAC
internal power supply |
|
|
|
|
Environmental
Specifications |
|
|
Operating
Temperature |
0°C
- 40°C |
|
Storage
Temperature |
-40°C
- 70°C |
|
Operating
Humidity |
10%-90%
non-condensing |
|
Storage
Humidity |
5%-90%
non-condensing |
|
|
|
|
Certification |
C-Tick,
CE, FCC, RoHS |
