Delta Static Transfer Switch (STS) - Single phase 16A, 200/208/220/230/240V, Input C20(2), Output C13(4), C19

IMG 1 of 1
No Longer Available
Part Number:
440620
(?) Brand:
Delta Web Site
Manuf No:
STS16002SR000A9
Shipping Weight:
6.1 KG (Includes product packaging)
Estimate Shipping
Date Added:
7/1/2019
Details Files Finance Images & Video
All stock codes associated to this product
STS16002SR000A9

Delta Rack-Mount Static Transfer Switch



Overview

Highly reliable power redundancy for mission critical IT equipment

TheRack-Mount Static Transfer Switch (rSTS) safeguards the uninterrupted operation of mission critical IT equipment. Powered by two independent power sources, the rSTS rapidly switches from one source to the other automatically when the power supply used to power its connected load fails. For datacenter applications the rSTS allows power drop risk to be shared or distributed to each rack to prevent power loss for the whole system. The rSTS offers an efficient and reliable switch that supports the high redundancy requirements of mission critical power systems.

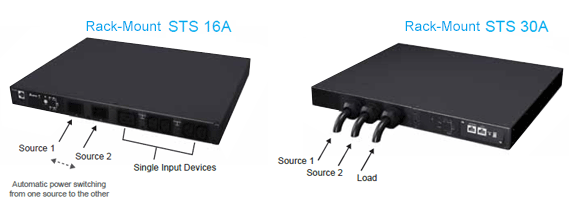

Supports power redundant configurations for high reliability

Supports power redundant configurations for high reliability

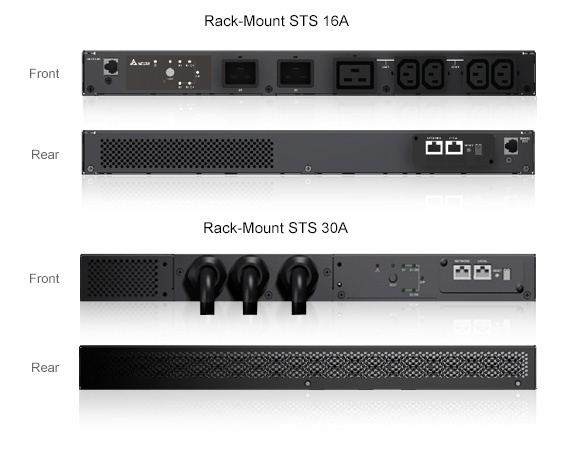

Static Transfer Switch Series front and rear - 16A and 30A

Features

Availability

  • Adopts SCR with a relay in parallel as a switching device to increase reliability without sacrificing efficiency
  • Supports power redundant configurations for high reliability
  • Monitors the health of the power source and performs the transfer automatically
  • Short transfer time (6~12ms)

Convenience

  • Rack-mounted type with 1U size for easy installation and relocation
  • Built-in SNMP for remote management
  • LED indicators show power flow
  • Self-test function

Safety

  • Break before make prevents short circuits between two sources

Specifications

Model

STS16002SR00035

Rated Current

16A

Regulatory

CE / UL

Nominal Voltage

200/208/220/230/240 Vac

Display

LED

Connection

Input

 C20 x 2 pcs

Output

 C13 x 4 + C19 x 1 pcs

Communication

SNMP

Operating temperature

0~40

Storage temperature

-15~50

Humidity

0%~95% RH (non-condensing)

Audible Noise (at one meter)

<40 dB

Physical Dimensions (H x W x D)

43 x 440 x 385 mm

Weight

4.85kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Delta) web site.
