All stock codes associated to this product
SF110D16HPAU, SF110D-16HP-AU, CS10007, 882658722578

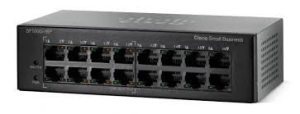

Cisco SF110D-16HP-AU Small Business 110 Series Unmanaged
Switches
Features
Affordable, Easy-to-Use Switches for Small Business Networks, with Zero
Configuration Required
- Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry
applications
- 5- to 24-port models that are desktop or rack mountable
- Power over Ethernet models to provide power to IP phones, access points,
and other devices
- Works right out of the box: plug and play and no setup
Overview
Give your office network a boost of speed and performance at a low price that
takes almost no time to set up. Easily build a highly reliable network to
connect your computers, printers, copiers, and other office equipment. If your
business is like most small companies, you do not have an IT staff to set up
your network for you. Now you can have a high-performance, business-class office
network that just works, right out of the box, with the Cisco110 Series Unmanaged Switches. Users, workgroups,
labs, departments, or growing offices can now deliver large amounts of
multimedia, image, and video information across the network in almost no
time.
Cisco 110 Series Unmanaged Switches deliver basic network connectivity
and reliability for small businesses that is easy on the budget and without all
the complexity. These switches provide all of the features, expandability, and
investment protection you expect from Cisco, with no installation software and
nothing to configure. Just plug itin, connect your computers and other business
equipment, and get to work.
Cisco 110 Series Unmanaged Switches (Figure 1), part of the Cisco Small
Business networking solutions, arealine of unmanaged switches that provide
wire-speed Fast Ethernet and Gigabit Ethernet connectivity to connect your small
business office. Available in desktop and rack-mount models, these switches are
designed to suit any office space with basic network needs and to optimize power
efficiency. They use less power and provide the robust, reliable connectivity
your business demands, as well as support for advanced features such as quality
of service (QoS), loop detection, and cable diagnostics, all in a switch that
you can set up yourself in minutes. A business-class, affordable network
solution, Cisco 110 Series switches bring the proven reliability and investment
protection of Cisco networking solutions to your small business.
Cisco 110 Series Unmanaged Switches
Cisco 110 Series switches provide an easy-to-use solution for your
small business network. Theyoffer:
Ease of use:
Cisco 110 Series switches work right out of the box, with no software
to install and nothing to configure. Each switch port independently sets itself
for the optimal speed and determines whether to run in half- or full-duplex mode
automatically. As a standards-based Cisco solution, Cisco 110 Series switches
are also designed to immediately accommodate all of the devices in your network,
including:
- Support for 10 megabits per second (Mbps), 100 Mbps, and up to 1 gigabit
per second (1000 Mbps) devices in the same network
- Automatic cable detection, so you do not have to worry about using the
wrong cable type
- Compatibility with network devices from other vendors
Simple setup:
Designed for small office spaces, Cisco 110 Series switches are available in
both compact desktop and rack-mount models. The desktop models offer a
wall-mount option for discreet mounting under a desk or on the wall of an office
or conference room.
High performance:
Cisco 110 Series switches deliver the performance you need to run your
business applications, including bandwidth-intensive video services, and avoid
slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a
new level of capacity and performance in your business network and letting you
transfer large files in seconds.
Reduced energy costs:
Cisco 110 Series switches are designed to help conserve energy by optimizing
power use without compromising performance, which protects our environment and
reduces your energy costs. In addition, they support the Energy Efficient
Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring
the amount of traffic on an active link and putting the link into a sleep state
during quiet periods. Most of the switches have no fans, so they run silently
and unobtrusively while lowering energy costs.
Power over Ethernet (PoE):
Cisco 110 Series switches are available with PoE ports on both Fast Ethernet
and Gigabit Ethernet models. This capability simplifies the deployment of IP
telephony, wireless, video surveillance, and other solutions by allowing you to
connect and power network endpoints over a single Ethernet cable. With no need
to install separate power supplies for IP phones or wireless access points, you
can take advantage of advanced communications technologies more quickly and at a
lower cost.
Support for advanced technologies:
All switches include advanced Cisco traffic-handling features to keep your
applications running at peak performance. Integrated QoS intelligence on all
models automatically prioritizes delay-sensitive services such as voice or video
to improve your network's performance. Loop detection helps discover loops in
the network that you might have accidentally created, thus avoiding broadcast
storms that will bring your network to a stall. Cable diagnostics help to
quickly identify and troubleshoot network cabling faults and issues. Fast
store-and-forward switching identifies damaged packets and prevents them from
being passed on through the network. All of these features run automatically,
with no management or configuration required.
Peace of mind:
Cisco 110 Series switches deliver the rock-solid reliability you expect from
a Cisco switch. The solution has been rigorously tested to make sure of optimal
uptime and performance. In addition, the limited lifetime hardware warranty
provides peace of mind.
Specifications
Standards |
IEEE
802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE
802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE
802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af,
Power over Ethernet |
Cabling
type |
Category
5e or better |
LED
indicators |
System/PWR,
link/activity, 100M,*PoE, *mMax PoE, cable diagnostics, loop detection,
gigabit,* mini-GBIC* |
*if
present |
Physical
Interfaces |
Ports |
10/100/1000
Ethernet, with support for 802.3af PoE, power port for AC adapter or power
cord |
Power
supply |
SF110D-16HP:
110-240VAC, 50-60 Hz, internal, universal |
Lock
slot |
Slot
for Kensington lock |
Physical
Specifications |
Physical
dimensions (W x D x H) |
SF110D-16HP:
6.29 x 3.54 x 1.69 inches (160 x 90 x 43 mm) |
Weight |
SF110D-16HP:
0.99 lb. (0.45 kg) |
Ports |
SF110D-16HP:
16 RJ-45 connectors for 10BASE-T/100BASE-TX |
Power
over Ethernet (PoE) |
Model
Name |
Power
Dedicated to PoE |
Number
of PoE Ports |
|
SF110D-16HP |
64
watts |
8 |
Fan/fanless
models |
All
models have no fans and are fanless, except for
SG100-24HP |
Performance |
Switching
capacity |
SF110D-16HP:
3.2 Gbps |
Forwarding
capacity |
Forwarding
rate in million packets per second (mpps) (based on 64-byte
packets): |
|
SF110D-16HP:
1.4 mpps |
Capabilities |
Head-of-line
(HOL) blocking |
HOL
blocking prevention |
Jumbo
frame |
9216
bytes |
Quality
of service (QoS) |
802.1p
priority based, 4 hardware queues, priority queuing and weighted
round-robin (WRR) |
Loop
detection |
Helps
discover loops in the network to avoid broadcast
storms |
Cable
diagnostics |
Quickly
identify and troubleshoot network cable faults and/or
shorts |
Mounting
and Physical Security |
Mounting
options |
Desktop
or rack mount |
Physical
security lock |
Kensington
lock slot |
Environmental |
Compliance/certifications |
UL
(UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC
Class B* |
*select
models |
Operating
temperature |
32°
to 104°F (0° to 40°C) |
Storage
temperature |
-4°
to 158°F (-20° to 70°C) |
Operating
humidity |
10%
to 90%, relative, noncondensing |
Storage
humidity |
5%
to 90%, relative, noncondensing |
System
memory |
128-MB
RAM |
128-MB
Flash |
Package
Contents |
●
Cisco 110 Series switch |
●
Power cord/power adapter |
●
Quick-start guide |
●
Mounting hardware |
Minimum
Requirements |
●
Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab
Gigabit Ethernet |
●
Cat5 or better Ethernet cable |
●
Network interface card for each computer |
Warranty |
Cisco
110 Series switch |
Limited
lifetime |
