All stock codes associated to this product
PSLTP0650NHSANA1, PS-LTP-0650NHSANA-1

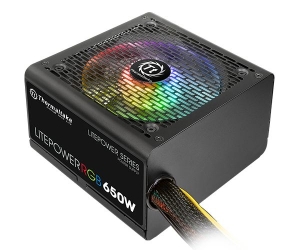

Thermaltake PS-LTP-0650NHSANA-1 Litepower RGB 650W
(230V)
Overview
Available in 450W - 650W models, the Litepower RGB series features black
coated finish for a stylish statement and 10 RGB LEDs to give illumination
options of 7 colors and an RGB cycle. Its hydraulic bearing fan helps ensure
excellent airlow and silent operation. The included EPS/ATX 12V 4+4pin CPU
cables are sufficient for compatibility with full tower chassis and better cable
routing. With a 2-year warranty, the Litepower RGB series satisfies the users,
who are looking for a power supply with excellent performance and
aesthetics.
10 RGB LEDs Preinstalled
The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7
colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination
modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.
One Button to Your Desired Color
Adding personal appeal to your build has never been so easy by just pressing
one RGB lighting button! There is also a built-in memory function to save the
color applied and insure the same color selection every time you boot your
PC.
Ultra Quite 120mm Hydraulic Bearing Fan
Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to help
guarantee superior cooling performance and silent operation.
Active PFC
Avoids harmonic distortion while saves more energy and gives more stability
to meet higher environment standards.
Sufficient EPS/ATX 12V 4+4pin CPU Cables for Enhanced
Compatibility
The cables are designed to elevate the look of your build while power the
system at an advantageous voltage, make cable management easier, reduce clutter
and increase airflow inside the chassis. The EPS/ATX 12V 4+4pin CPU cables are
sufficient for compatibility with full tower cases.
High Amperage Single +12V Rail
Powerful single +12V rail helps ensure a stable and reliable supply to other
PC components.
Intel C6/C7 States Ready
The Litepower RGB series has been optimized to work with all generations of
Intels processors to achieve maximum energy saving.
Specifications
|
P/N |
PS-LTP-0650NHSANA-1 |
|
Type |
ATX
12V 2.3 |
|
Max.
Output Capacity |
650W |
|
Color |
Black |
|
Dimension
W / H / D |
150mm
x 86mm x 140mm |
|
PFC
Power Factor Correction |
Active
PFC |
|
Power
Good Signal |
100-500
msec. |
|
Hold
Up Time |
>16msec |
|
Input
current |
9A |
|
Input
Frequency Range |
50Hz
- 60Hz |
|
Input
Voltage |
230V |
|
Operating
Temperature |
+5℃
to +35℃ |
|
Operating
Humidity |
20%
to 85%,non-condensing |
|
Storage
Temperature |
-40℃
to +55℃ |
|
Storage
Humidity |
10%
to 95%, non-condensing |
|
Cooling
System |
120mm
Fan: 2000±10% RPM |
|
MTBF |
100,000
hrs minimum |
|
Safety
Approval |
CE,
TUV SUD, CB, EAC and RCM certified. |
|
PCI-E
Connector |
6+2pin
PCI-E Connector x 2 |
