All stock codes associated to this product
BFCESM150WWWGKRP, BFC-ESM-150-WWWGK-RP, 4712883216718

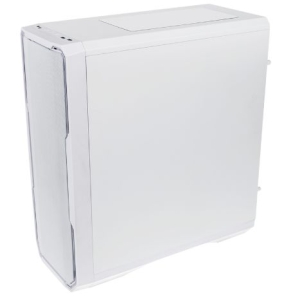

Bitfenix BFC-ESM-150-WWWGK-RP Mid Tower Chassis -
White
Overview
BitFenix presented Aurora, Shogun and Alchemy 2.0 RGB Magnetic LED Strips
co-developing AURA SYNC technology with Asus bringing in the comprehensive neat
RGB LED concept for PC build . Today BitFenix present the BitFenix ENSO and the
Alchemy 3.0 Addressable RGB Magnetic LED Strips, again co-developing with Asus,
supporting the latest ASUS AURA SYNC 3-pin technology for addressable RGB
illumination.
Sleek Design With Mesh Front Panel
The clean design concept is well balanced between a perfectly organized
interior structure and a sleek exterior design. It is complemented by a 4mm
see-through-tinted tempered glass panel on the side and addressable RGB
illumination surrounding the High density mesh front.
Enhanced Addressable RGB Illumination
The BitFenix ENSO MESH premieres BitFenix new RGB illumination. The
addressable RGB lighting allows multiple LED colors in one zone instead of one
static color at a time.
It is powered by a built in controller (compatible to both, BitFenix Alchemy
2.0, static, and BitFenix 3.0, addressable, RGB products ) offering single
colors to match different system builds, but also featuring different rainbow
modes.
AURA SYNC 3 Pin Addressable RGB Technology
The RGB illumination of the ENSO MESH supports the latest ASUS AURA Sync 3
pin addressable RGB motherboards, currently found in high-end segment. It
enables users to coordinate multiple color lighting on different devices,
including the all new Alchemy 3.0 addressable RGB strip, all controlled and
synchronized by the ASUS AURA software bundled with Asus AURA SYNC 3 pin
motherboards.
See-through-tinted 4mm Tempered Glass Side Panel
The ENSO MESH comes with a high-quality tempered glass side panel with a
strength of 4mm. The tempered glass panel is see-through-tinted, allowing a peak
into the case showing off the now often RGB illuminated main components.
Clean Interior With 23mm Cable Management Space Behind Motherboard
Tray
The ENSO MESH comes with a PSU shroud hiding the PSU and up to two HDDs
beneath it, while three SSDs can be attached to the back of the motherboard
tray, showing only the motherboard, graphics cards and the cooling solution
through the tempered glass panel. The 23mm cable management space behind
motherboard tray makes it an easy job to manage the cables clean. With the
drive-trays out of the way, the ENSO MESH provides plenty of space for graphics
cards with a length up to 340mm.
Thermal Capability
To cool down the components, high density mesh on the front panel has offered
smooth intake. ENSO MESH supports up to two 140mm fans or a 280mm or a 360mm
radiator in the front while a 120mm rear-fan or radiator at the rear and up to
two 120mm fans in the top will push the hot air out. ENSO also supports up to
160mm high CPU air cooler.
Cooling Engineering
ENSO MESH doesn’t compromise the sleek design of Mesh front panel. The high
density mesh has provided over ten thousand holes with magnetic removable
function. The clean interior design creates no interference to the air flow
blowing straight on GPU that helps not only to cool down the GPU also provide
much focus air flow to the GPU. The close and clean PSU shroud keeps ENSO MESH
to have two individual chambers. It makes all components will have individual
cooling section. And the soft foams complemented with tempered glass lock the
noise inside. Bundled with the mesh dust filter offers the extreme cooling
performance.
Easy Clean With Removable Dust Filters
To keep the interior of the ENSO MESH dust-free, multiple filters are placed
around the case. The front and top filters are attached via magnets and can be
easily slid off to clean it.
The ENSO MESH also features BitFenix Sidewayâ„¢-removable PSU filters in the
bottom, thus enabling users to remove the PSU filter easily without lifting or
moving the case.
- Step 1. Please target the 2 tenos on the Front panel
- Step 2. Please insert the filter into tenos and let the magnets attach to
front panel.
Specifications
Color |
White |
Material |
Steel
│ Plastic │ Tempered Glass |
Motherboard
Support |
Mini-ITX,
MicroATX, ATX, E-ATX up to 272mm(10.7 inch) |
Maximum
CPU Cooler Height |
160mm(6.2
inch) |
Maximum
Graphics Card Support (Length) |
340mm
(13.3inch) |
Maximum
Graphics Card Support (width) |
150mm(5.9
inch) |
Cable
Management Space |
23mm(0.9
inch) |
Expansion
Slots (PCI-E) |
7 |
Front
I/O Ports |
2
x USB 3.0, 1 x HD Audio/Mic |
2.5"
Drive Bay |
3 |
3.5"
Drive Bay |
2
(Usable as 2.5" bay) |
Fan
Support(Front) |
2
x 140mm or 3 x 120mm |
Fan
Support(Top) |
2
x 120mm |
Fan
Support(Rear) |
1x
120mm |
Included
Fans(Front) |
1
x 120mm Fan (Black) |
Included
Fans(Rear) |
1
x 120mm Fan (Static RGB) |
Radiator
Support(Front) |
240mm
x 1 / 280mm x 1 / 360mm x 1 ( Thickness up to 35mm(1.4inch) / width up to
141mm(5.6inch)/ Length up to 400mm(15.7inch) ) |
Radiator
Support(Rear) |
1
x 120mm |
Power
Supply |
ATX
& EPS 12V, Up to 160mm(6.3inch) |
Dimensions
(W x H x D) |
210mm(8.3inch)
x 489mm(19.3inch) x 452mm(17.8inch) |
Weight |
7kg/
8.5Kg (15.5lb/
18.8lb) |
