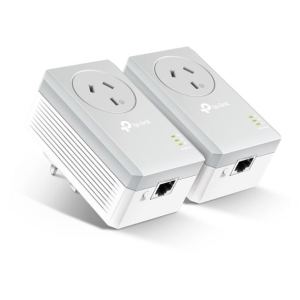

TP- Link TL-PA4010P KIT AV600 Passthrough Powerline Starter Kit



Features

  • Data transmission rates up to 600Mbps1 over electrical wires, ideal for HD video streaming
  • Integrated power socket making sure that no power outlet is going to waste
  • Plug and play design and easy encryption on a push of pair button
  • Power-Saving Mode automatically reduces power consumption by up to 85%2

Overview

What This Product Does

The TL-PA4010P KIT turns your existing powerline into a high-speed network with no need for new wires or drilling. No configuration is required, simply plug your adapter into your power socket and you can establish networking infrastructure in a flash. In addition, its integrated power socket makes sure that no power outlet is going to waste. With speeds up to 600Mbps and 300 meters over the household electric wires, the TL-PA4010P KIT is a great choice for an easy to build multimedia entertainment network.

Upgraded to 600Mbps, 300 Meters

With advanced HomePlug AV technology, the TL-PA4010P KIT can provide users with a stable high-speed data transmission rates of up to 600Mbps over a household electric circuit for up to 300 meters. the TL-PA4010P KIT is a great choice for a whole home solution to connect all network compatible devices--from computers and game consoles to set-top boxes for IPTV to printers and NAS hard drives.

Mains Filter for Better Performance

With its Integrated Mains Filter, the TL-PA4010P KIT can optimize powerline communication performance by suppressing noise interference generated by surrounding electronic equipment that can affect network performance. That means that users won't experience a sudden speed drop when a larger power consuming device is plugged into the power socket.

Pair Button for Easy Network Security

You can set up a hassle-free Powerline network within minutes with TP-Link’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.

  1. Plug one Internet-connected adapter into a nearby power outlet.
  2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable - and you're done!

*Recommended: Press the pair buttons for network security and data encryption.

Extra Power Socket for Additional Devices

With its integrated power socket, the new TL-PA4010P KIT provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4010P KIT plugged in, no power outlet is going to waste.

Reduce Power Consumption by Up to 85%

The TL-PA4010P KIT, a new-generation of Powerline Adapter, with its practical product design and environment-conscious Power-Saving Mode, will automatically switch from its regular "Working Mode" to "Power-Saving Mode" that will reduce energy consumption by up to 85%.

Note: Powerline adapters should be deployed on the same circuit and in a set of two or more.

Specifications

Plug Type

AU

Standards and Protocols

HomePlug AV, IEEE802.3, IEEE802.3u

Interface

1* 10/100Mbps Ethernet Port, Power Socket

Button

Pair Button

Power Consumption

Maximum: 5.00W (220V/50Hz)



Typical: 4.60W (220V/50Hz)



Standby: 0.72W (220V/50Hz)

LED

Power, Powerline, Ethernet

Dimensions ( W x D x H )

3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm)

Range

300 meters in house

SOFTWARE FEATURES



Modulation Technology

OFDM

Encryption

128-bit AES Encryption

OTHERS



Certification

CE, FCC, RoHS

Package Contents

Powerline Ethernet Adapter *2



Ethernet cable (RJ45) *2



Resource CD



Quick Installation Guide

System Requirements

Windows 8/7/Vista/XP/2000, Mac OS, Linux*

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)



Storage Temperature: -40°C~70°C (-40°F~158°F)



Operating Humidity: 10%~90% non-condensing



Storage Humidity: 5%~90% non-condensing

Warranty

Limited 3-Year Warranty
