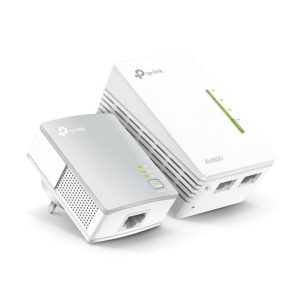

TP-Link TL-WPA4221KIT 300Mbps AV600 Wi-Fi Powerline
Extender Starter Kit
Overview
-
HomePlug
AV standard providing up to 600Mbps1high speed data transmission over a
homes existing electrical wiring, ideal for lag-free HD or 3D video streaming
and online gaming
-
Extend
300Mbps wireless connections to previously hard-to-reach areas of your home
and office
-
One
Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi
configuration and helps build a seamless unified home network
-
Plug
and Play with no configuration required
Wired or Wireless?Why not Both! Meet an Excellent Home Network Solution
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing
the Wi-Fi Clone button instantly copies your network name and password from your
router for easy setup. Wi-Fi Move automatically applies any settings changes
across the network. Your existing Wi-Fi settings will be synchronized to the new
extender automatically.
Extend Your Powerline Network to Any Room
Based on the Powerline technology, your network extension is never limited to
the primary coverage of your router. With advanced HomePlug AV2, TL-WPA4221 KIT
is perfect for providing stable, high-speed data transfer rates of up to 600
Mbps on a line length of up to 300 meters, bring network to anywhere there is a
power outlet.
Plug and Play!
Plug the TL-PA4010 in the wall and connect it to the router with an Ethernet
cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! Just
enjoy the seamless, high speed wired and wireless network.
Press the Pair buttons on both adapters to create a more secure network.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network
settings, set schedules for Wi-Fi availability and even control the LED
indicators on your adapters from any iOS or Android device. You can download the
tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC
Utility for your PC at www.tp-link.com/en.
Specifications
|
HARDWARE
FEATURES |
|
Plug
Type |
AU |
|
Standards and
Protocols |
HomePlug AV, IEEE802.3,
IEEE802.3u, IEEE802.11b/g/n |
|
Interface |
2*10/100Mbps Ethernet
Port |
|
Button |
Pair, Reset,
Wi-Fi/Wi-Fi Clone |
|
Power
Consumption |
TL-WPA4220: Maximum:
5.6W, Typical: 5.2W |
|
TL-PA4010: Maximum:
2.6W, Typical: 2.3W |
|
LED
Indicator |
PWR, PLC, ETH,
Wi-Fi/Wi-Fi Clone |
|
Dimensions ( W x D x H
) |
TL-WPA4220: 2.1 x 1.6 x
3.7 in. (54 40 94 mm) |
|
TL-PA4010: 2.0 1.1 2.6
in. (52 28.5 65 mm) |
|
Range |
300 Meters over
electrical circuit |
|
|
|
WIRELESS
FEATURES |
|
Frequency |
2.4-2.4835GHz |
|
Signal
Rate |
11n: Up to
300Mbps(dynamic) |
|
11g: Up to
54Mbps(dynamic) |
|
11b: Up to
11Mbps(dynamic) |
|
Reception
Sensitivity |
270M: -68dBm@10%
PER |
|
130M: -68dBm@10%
PER |
|
108M: -68dBm@10%
PER |
|
54M: -68dBm@10%
PER |
|
11M: -85dBm@8%
PER |
|
6M: -88dBm@10%
PER |
|
1M: -90dBm@8%
PER |
|
Transmit
Power |
CE:<20dBm(2.4GHz) |
|
FCC:<30dBm |
|
Wireless
Security |
64/128-bit WEP / WPA /
WPA2,WPA-PSK / WPA2-PSK |
|
Advanced
Functions |
Enable/DisableWireless
Radio,WMM, Wireless Statistics |
|
|
|
SOFTWARE
FEATURES |
|
Modulation
Technology |
OFDM
(PLC) |
|
Encryption |
Powerline
Security: |
|
128-bit
AES |
|
Wireless
Security: |
|
WEP, WPA/WPA2,
WPA-PSK/WPA2-PSK Encryption |
|
|
|
OTHERS |
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
Powerline Ethernet
Adapter TL-WPA4220 & TL-PA4010 |
|
2 * 6.5 ft. (2 m)
Ethernet cable (RJ45) |
|
Quick Installation
Guide |
|
System
Requirements |
Windows
10/8.1/8/7/Vista/XP, Mac OS, Linux |
|
Environment |
Operating Temperature:
0C~40C (32F ~104F) |
|
Storage Temperature:
-40C~70C (-40F ~158F) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~90% non-condensing |
Networking
