All stock codes associated to this product
RE200, 2681954, 6935364071295, 6935364071882

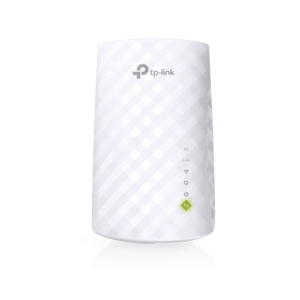

TP-link RE200 AC750 Wi-Fi Range
Extender
Features
- Boosts wireless signal to previously unreachable or hard-to-wire areas
flawlessly
- Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
- Dual band speeds up to 750Mbps*
- Miniature size and wall-mounted design make it easy to deploy and move
flexibly
- Ethernet port allows the Extender to function as a wireless adapter to
connect wired devices
Overview
Easy Wi-Fi Extension Flexible Placement
AC750 Wi-Fi Range Extender
RE200
Boost Your Wi-Fi Network to Cover hard-to-reach Areas
Place the RE200 between your wireless router and wireless devices, expanding
Wi-Fi coverage while eliminating Wi-Fi dead zones. Enjoy a seamless wireless
network throughout your home or office. The dual bands Wi-Fi up to 750Mbps not
only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high
ISP speed — ideal for HD video streaming, online gaming and other
bandwidth-intensive tasks.
- RE200 Coverage
- Router Coverage
AC750 Wi-Fi for Compatible Connections
The RE200’s Wireless AC technology create stronger Wi-Fi connections across
your home. Work with any standard router or access point, making it convenient
to provide wide, non-droppingDual Band Wi-Fi to multiple devices.
One Key Connection
Press the WPS button on your router and RE button on your RE200 within 2
minutes to easily connect to the network. Once connected with an existing
router, you can simply relocate the RE200 at any location for the best signal
strength.
Smart Signal Indicator
Smart signal lights indicate the signal strength received from the existing
router. Read the lights to find the best location for your RE200.
- Good connection
- Too far away from the router
- No connection
Entertainment Adapter
With an Ethernet port, RE200 can function as a wireless adapter to connect
wired devices like desktop, gaming consoles, Blu-ray® players, and Internet TVs.
At the same time, the device can share the wireless network as well.
Dedicated to Networking for over 20 years
Dedicated provider of networking products for over 20 years, with
industry-leading professionalism and time-proven reliability.
Specifications
|
HARDWARE
FEATURES |
|
|
Plug
Type |
EU,
UK, US, AU |
|
Standards
and Protocols |
IEEE802.11ac,IEEE
802.11n, IEEE 802.11g, IEEE 802.11b |
|
Interface |
1
* 10/100M Ethernet Port (RJ45) |
|
Button |
RE
(Range Extender) Button, Reset Button |
|
Power
Consumption |
About
6.5W |
|
Dimensions
( W x D x H ) |
4.3x
2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
|
Antenna |
3
* internal |
|
WIRELESS
FEATURES |
|
|
Frequency |
2.4GHz
& 5GHz |
|
Signal
Rate |
5GHz:Up
to 433Mbps |
|
|
2.4GHz:Up
to 300Mpbs |
|
Reception
Sensitivity |
2.4G: |
|
|
270M:
-70dBm@10% PER |
|
|
130M:
-70dBm@10% PER |
|
|
108M:
-73dBm@10% PER |
|
|
54M:
-75dBm@10% PER |
|
|
11M:
-86dBm@8% PER |
|
|
6M:
-92dBm@10% PER |
|
|
1M:
-94dBm@8% PER |
|
|
5G: |
|
|
390M:
-60dBm@10% PER |
|
|
29.3M:
-83dBm@10% PER |
|
|
180M:
-64dBm@10% PER |
|
|
13.5M:
-87dBm@10% PER |
|
|
78M:
-68dBm@10% PER |
|
|
6.5M:
-90dBm@10% PER |
|
|
54M:
-75dBm@10% PER |
|
|
6M-90dBm@10%
PER |
|
Transmit
Power |
<
20 dBm (EIRP) |
|
Wireless
Modes |
Range
Extender |
|
Wireless
Functions |
WMM
(Wi-Fi Multimedia) |
|
|
Wireless
Statistic |
|
|
Domain
Login Function |
|
Wireless
Security |
64/128/152-bit
WEP |
|
|
WPA-PSK
/ WPA2-PSK |
|
OTHERS |
|
|
Certification |
FCC,
RoHS |
|
Package
Contents |
AC750
Wi-Fi Range Extender RE200 |
|
|
RJ-45
Ethernet Cable |
|
|
Resource
CD |
|
|
Quick
Installation Guide |
|
System
Requirements |
Microsoft®
Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®,
UNIX® or Linux. |
|
Environment |
Operating
Temperature: 0°C~40°C (32°F~104°F) |
|
|
Storage
Temperature: -40°C~70°C (-40°F~158°F) |
|
|
Operating
Humidity: 10%~90% non-condensing |
|
|
Storage
Humidity: 5%~90%
non-condensing |
