Cisco Unified IP Phone Expansion Module
7916
Overview
Call coverage is a critical capability for administrative assistants and
others who must monitor, manage, and cover the status of calls. This capability
requires the ability to instantly determine the status of numerous lines beyond
the six-line capability of the Cisco Unified IP Phone 7962G and 7965G models and
eight-line capability of the Cisco Unified IP Phone 7975G.

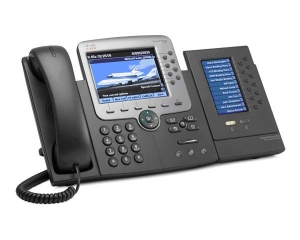

The Cisco Unified IP Phone Expansion Module 7916 extends the capabilities of
the Cisco Unified IP Phone 7962G, 7965G, and 7975G models with additional
buttons and an LCD display. With this expansion module, you add 12 physical keys
with access to 12 additional keys through the page keys for a total of 24
buttons to the existing 6 buttons of the Cisco Unified IP Phone 7962G and 7965G
(Figure 2) models and the existing 8 buttons of the Cisco Unified IP Phone
7975G. You can use up to two Cisco Unified IP Phone Expansion Module 7916
modules (Figure 3) with the Cisco Unified IP Phone 7962G, 7965G, and 7975G
models.
Features and Benefits
The large LCD display of the Cisco Unified IP Phone Expansion Module 7916
allows for quick and easy identification of associated buttons. Using the
Settings menu of the Cisco Unified IP Phone 7962G, 7965G, and 7975G models, you
can adjust the brightness of the individual LCDs for these phones and the Cisco
Unified IP Phone Expansion Module 7916 according to your preference. You can
program the buttons on each Cisco Unified IP Phone Expansion Module 7916 as a
directory number, line key, or speed-dial key, much like on the Cisco Unified IP
Phone 7962G, 7965G, and 7975G models. Buttons used as a directory-number (DN) or
shared line keys are illuminated, allowing easy identification of call state
Illuminated Buttons
Button |
Line Status |
Off (dark) |
Line
available |
Green, steady |
Line in use |
Red, steady |
Line in use by someone
else |
Amber, flashing |
Line ringing |
Green, flashing |
Call is on
hold |
These capabilities provide features
that are similar to typical Direct Station Selection/Busy Lamp Field (DSS/BLF)
modules but are not intended to be directly comperable to traditional DSS/BLF
modules. The Cisco Unified IP Phone Expansion Module 7916 is not an operator or
attendant console. The primary function of this module is to provide the Cisco
Unified IP Phone 7962G, 7965G, and 7975G models with additional keys for
features such as speed dial or directory numbers. The illuminated buttons
provide ease of line status, making the Cisco Unified IP Phone Expansion Module
7916 an ideal call-coverage tool.
Features and Description
Feature |
Description |
Graphical
display |
4.3 graphical (TFT) color
display, 16-bit color depth, 480 x 272 effective pixel resolution, with
backlight. The display also supports localization requiring double-byte
Unicode encoding for fonts. |
Directory-number and feature
buttons |
The module has 12 physical
buttons (24 with page key). |
Page buttons |
The two Page buttons are used
to access each page of 12 buttons and provide phone
status. |
Sleep or inactivity
mode |
When Cisco Unified IP Phone
7965G or 7975G models are in power-saving sleep or inactivity mode, the
Cisco Unified IP Phone Expansion Module 7916 is also in sleep or
inactivity mode. In addition to the Display button, any button on the
Cisco Unified IP Phone Expansion Module 7916 that is pressed will cause
the displays to awaken. The inactivity period is configured by the system
administrator. |
