SOHO Ethernet Switch Series


Expanding Wired Connectivity for SOHO Networks

Overview

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to home and small offices. They are easy to use and reliable. With these Plug-N-Play switches, you can expand your network connections to multiple devices instantly. This series of switches also implement various energy saving technologies, helping you save power and money.

  • Choice of Fast Ethernet and Gigabit Ethernet connectivity
  • Available in plastic or metal enclosures
  • Energy-efficient technology for power savings
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Fan-less design for quiet operation


Specifications:

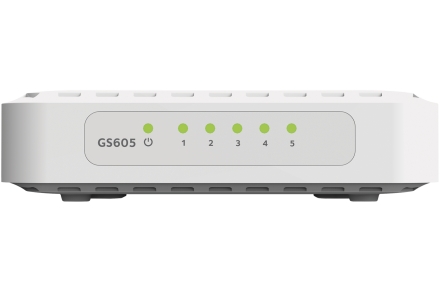

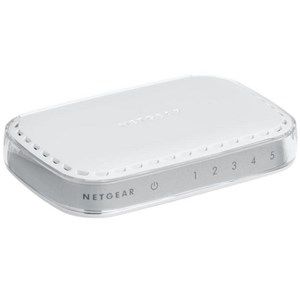

Product Number: GS605

Product Thumbnail

Model Description

  • 5-port Gigabit Ethernet Switch

  • GS605 Datasheet

Speed

  • 10/100/1000Mbps Gigibit Ethernet

Number of Ports

  • 5

Connector Type

  • Copper

Switch Housing

  • Plastic

PoE ports (total PoE Budget)

  • n/a

Loop Detection

  • n/a

Short cable power saving

  • n/a

Energy Efficient Ethernet Support (IEEE802.3az)

  • Yes

Jumbo Frame Support

  • Yes

Queue WRR Ratio

  • 1:2:4:8

MAC Table Size

  • 2K

Packet buffer size

  • 128KB

IEEE 802.1p QoS

  • n/a

Dimensions (WxDxH) @ mm

  • 147 x 97 x 28 mm

Weight (kg)

  • 0.1

Max Power Consumption

  • 3.7W

Max Operating Temperature

  • 40C

MTBF (hours)

  • 6,421,778

FCC Class

  • B

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 year return to base

Full manufacturers warranty details are available at the manufacturers (Netgear) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
