Cisco UCS-CPU-I4214 UCS B200 M5 Blade Server



OVERVIEW

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.

The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Ciscos Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel Xeon processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.

The May 2019 update includes support for the following:

  • 2nd Generation Intel Xeon Scalable Processors.
  • 2933-MHz DDR4 memory DIMMs.
  • 128 GB, 256 GB, 512 GB Intel OptaneTM DC Persistent Memory Modules (DCPMM).
  • Up to 9 TB of memory is available if the memory slots are populated as follows:
    • 12 x 256 GB DDR4 DIMMs1
    • 12 x 512 GB DCPMMs

BASE SERVER STANDARD CAPABILITIES and FEATURES

Table 1 lists the capabilities and features of the base server. Details about how to configure the server for a listed feature or capability (for example, number of processors, disk drives, or amount of memory) are provided in CONFIGURING the SERVER on page 7

Table 1 Capabilities and Features

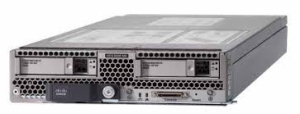

Figure 1 Cisco UCS B200 M5 Blade Server

Capability/Feature

Description

Chassis

The UCS B200 M5 Blade Server mounts in a Cisco UCS 5108 Series blade server chassis or UCS Mini blade server chassis.

CPU

One or two Intel Xeon scalable family CPUs or one or two 2nd Generation Intel Xeon scalable family CPUs. Also note that the B200 M5 Blade Server BIOS inherently enables support for Intel Advanced Encryption Standard New Instructions (AES-NI) and does not have an option to disable this feature.

Chipset

Intel C620 series chipset (Lewisburg)

Memory

24 total DIMM slots

Support for Advanced ECC

Support for registered ECC DIMMs (RDIMMs)

Support for load-reduced DIMMs (LR DIMMs)

Support for through-silicon via DIMMs (TSV DIMMs)

Support for DC Persistent DIMMs (DCPMMs)

Up to 3072 GB DDR4 DIMM memory capacity (24 x 128 GB DIMMs)

Up to 9 TB memory with a mix of DIMMs and DCPMMs

12 x 256 GB DIMMs1

12 x 512 GB DCPMMs

Modular LOM

One modular LOM (mLOM) connector at the rear of the blade for a Cisco mLOM VIC adapter, which provides Ethernet or Fibre Channel over Ethernet (FCoE) connectivity

Mezzanine Adapters (Rear)

One rear mezzanine connector for various types of Cisco mezzanine adapters

Cisco Mezzanine VIC Adapter, or

Cisco Mezzanine Port Expander, or

Cisco Mezzanine NVMe Storage Adapter, or

Cisco Mezzanine nVIDIA P6 GPU (can also be placed in front connector)

Mezzanine Adapters (Front)

One front mezzanine connector for

Cisco FlexStorage controller with drive bays, or

Cisco Mezzanine nVIDIA P6 GPU (can also be placed in rear connector)

NOTE: No front mezzanine cards are allowed with CPUs that dissipate equal to or more than 165 W.

Storage controller

For the front mezzanine connector:

Cisco FlexStorage 12G RAID controller with drive bays

Cisco FlexStorage 12G RAID controller with 2GB Cache with drive bays

Cisco FlexStorage NVMe Passthrough controller with drive bays (you can

also have an NVMe storage adapter in the rear mezzanine connector at

the same time)

Storage devices

Up to two optional, front-accessible, hot-swappable, 2.5-inch small form factor (SFF) drive slots. Choice of:

10K RPM or 15K RPM hard disk drives (HDD)

Enterprise performance or enterprise value solid state drives (SSD)

High or medium endurance NVMe Drives

Internal mini-storage modules that can accommodate either:

Up to two SD modules (32 GB, 64 GB, or 128 GB supporting RAID 1, or

Up to two M.2 SATA drives (240 GB or 960 GB) supported by LSI SW RAID

Internal UCS 3.0 Port that can accommodate a Cisco 16 GB USB drive

Video

The Cisco Integrated Management Controller (CIMC) provides video using a Matrox G200e video/graphics controller.

Integrated 2D graphics core with hardware acceleration

DDR4 memory interface supports up to 512 MB of addressable memory

(8 MB is allocated by default to video memory)

Supports display resolutions up to 1920 x 1200 32 [email protected] 60Hz

Single lane PCI-Express host interface running at Gen 2 speed

Interfaces

One KVM console connector on the front panel

Power subsystem

Integrated in the Cisco UCS 5108 blade server chassis

Fans

Integrated in the Cisco UCS 5108 blade server chassis.

Integrated management processor

The built-in Cisco Integrated Management Controller (CIMC) GUI or CLI interface enables monitoring of server inventory, health, and system event logs

ACPI

Advanced Configuration and Power Interface (ACPI) 4.0 Standard Supported.

Notes: 1. 256 GB DIMMs will be available in the second half of CY2019

Specifications

Product ID (PID)

UCS-CPU-I4210

Clock Freq (GHz)

2.2

Power (W)

85

Cache Size (MB)

16.75

Cores

12

UPI1 Links (GT/s)

9.6

Highest DDR4 DIMM Clock Support (MHz)2

2400

Front Mezz3

Y

Workload

Data Protection, Scale Out Storage

2nd Gen IntelĀ® Xeon
