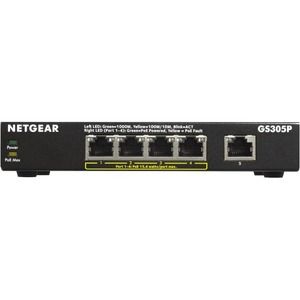

Netgear GS305P 5-Port Gigabit Ethernet Switch with 4-Ports
PoE
Overview
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable
network connectivity to small offices and home/offices. They are easy to use,
reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is
also available for supplying both power and data across a single CAT-5 ethernet
cable to devices such as IP security cameras, VoIP phones, wireless access
points, etc. With these Plug-and-Play switches, you can quickly and easily
expand your network connections to multiple devices, with no configuration
required. Available with 5 ports to 48 ports, these switches also support energy
saving technologies to help you save power and money.
-
Choice
of Fast Ethernet and Gigabit Ethernet connectivity
-
Energy-efficient
technology for power savings
-
Auto-MDI/MDIX
eliminates the need for crossover cables
-
Non-blocking
switching architecture for maximum throughput at wire speed
-
Auto-negotiation
for automatic connection at the highest common speed between switch and an end
device
-
Power-over-Ethernet
(PoE) option available for powering IP Security Cameras, VoIP phones, wireless
access points, and other PD-powered devices
-
Fanless
design for silent operation
-
Desktop,
wall-mountable or rack-mountable (GS324, GS348)
Specifications
Model
Description |
5-Port Gigabit Ethernet
Switch with 4-Ports PoE |
Speed |
Gigabit |
Number of
Ports |
5 |
PoE Ports / Max
Power Per Port |
Ports 1-4 / 15.4W
(802.3af) |
PoE Max Power
Supplied (All Ports) |
55.5W |
Connector
Type |
Metal |
Switch
Housing |
Metal |
LEDs |
Power, Link/Activity
(Left), Ports 1-4: PoE Power (Right) |
Short cable power
saving |
Yes |
Energy Efficient
Ethernet Support (IEEE 802.3az) |
Yes |
Jumbo Frame
Support |
9,720
bytes |
MAC Table
Size |
2K |
Packet buffer
size |
128
KB |
DC Power
Adapter |
48V /
1.25A |
Max Power
Consumption (Watts) |
60.0W |
Acoustic Noise Level
@ 25 C (dBA) |
0 dBA
(Fanless) |
Operating
Temperature |
0 to 40C (32 to
104F) |
MTBF (@ 25
C) |
2,244,211
hours |
Electromagnetic
compliance (A or B) |
Class
A |
Form
Factor |
Desktop or
wall-mountable |
Dimensions (W x D x
H) |
158 x 101 x 29 mm (6.2
x 4.0 x 1.1 in) |
Weight |
0.41 kg (0.90
lb) |
