All stock codes associated to this product
MCBQ500LKANNS00, MCB-Q500L-KANN-S00, 4489691, 4719512080580, 884102053078

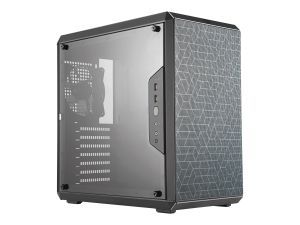

Coolermaster MasterBox Q500L Mid Tower Case
Overview
CHOOSE YOUR STYLE
- Highly Compact Standard ATX
- Orientation & A Movable I/O Panel
- Versatile PSU Bracket
- Fully Perforated Chassis
- Magnetic Dust Filters
- Edge-to-Edge Transparent Side Panel
- Clean Routing Space

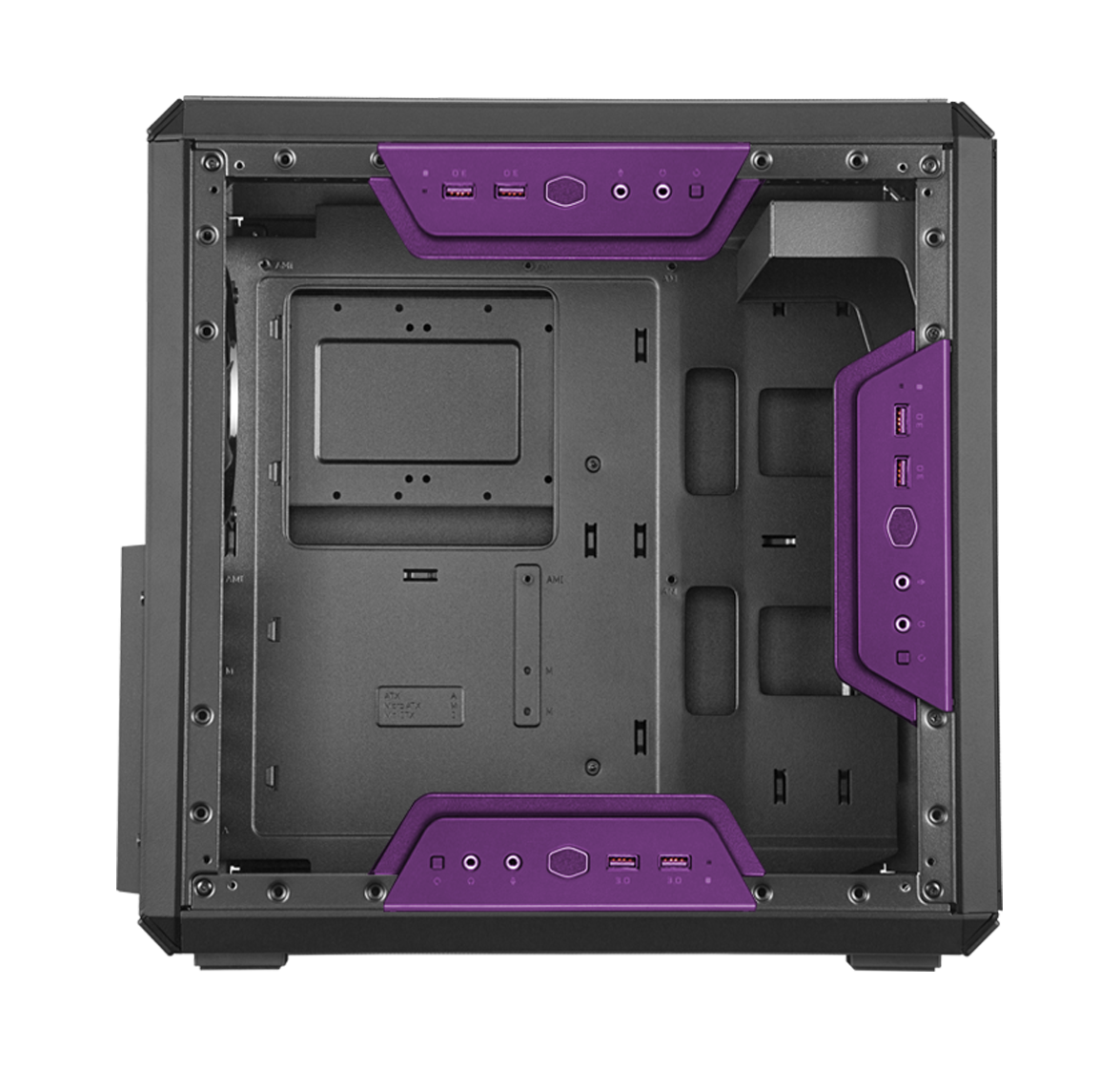

ORIENTATION & A MOVABLE I/O PANEL
The modular MasterBox Q500L can orient vertically and horizontally with
rubberized thumbscrews that also act as feet. Depending on hardware
configuration, the movable I/O panel can be relocated to multiple positions to
retain its accessibility.
VERSATILE PSU BRACKET
The PSU bracket enables the PSU to adapt to different clearance requirements
and motherboard form factors. The PSU bracket can shift up or down for top
radiator/graphics card clearance and can also be relocated for ITX systems.

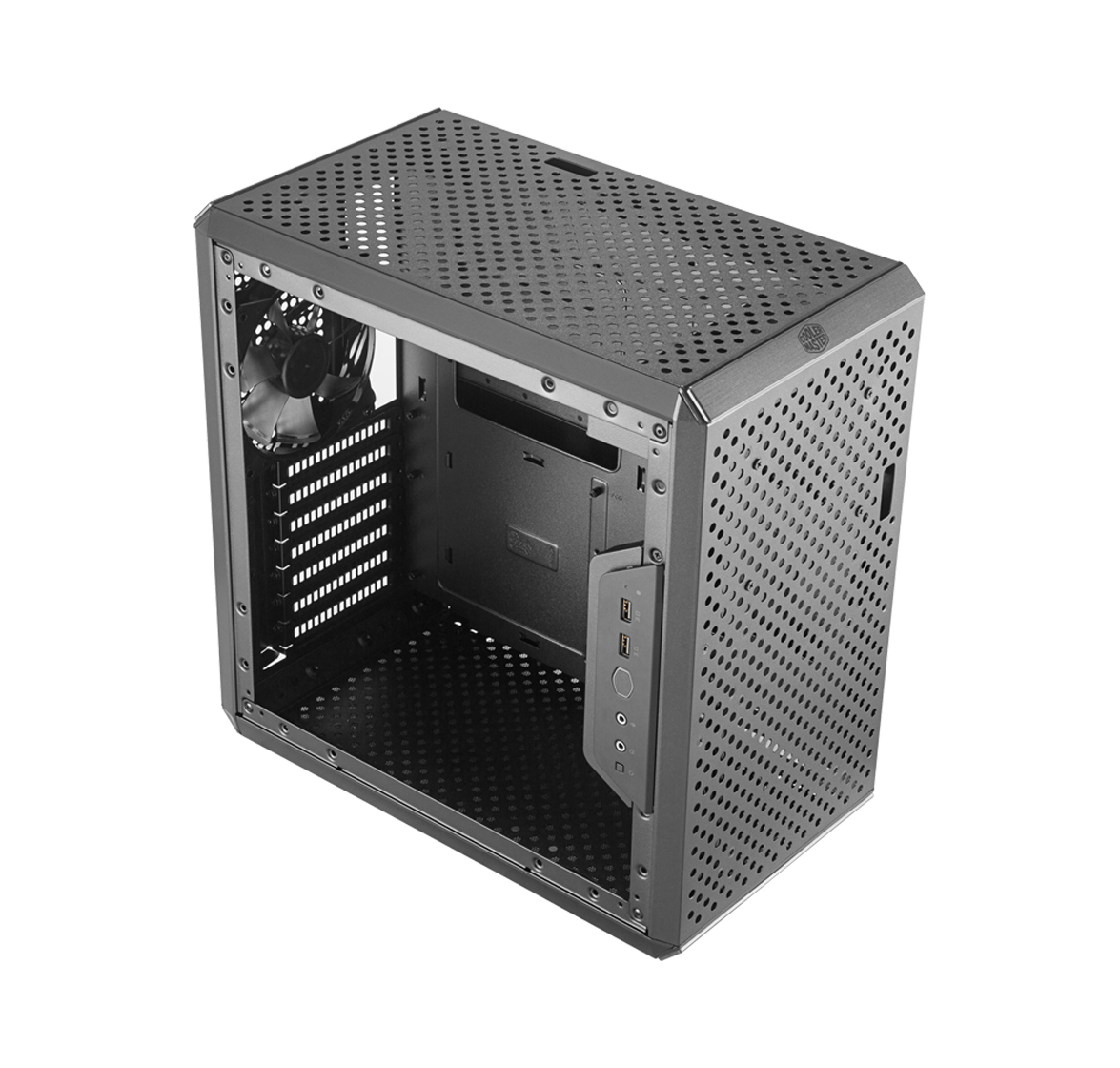

FULLY PERFORATED CHASSIS
The top, front, rear, and bottom panels are fully perforated to support
various fan configurations.

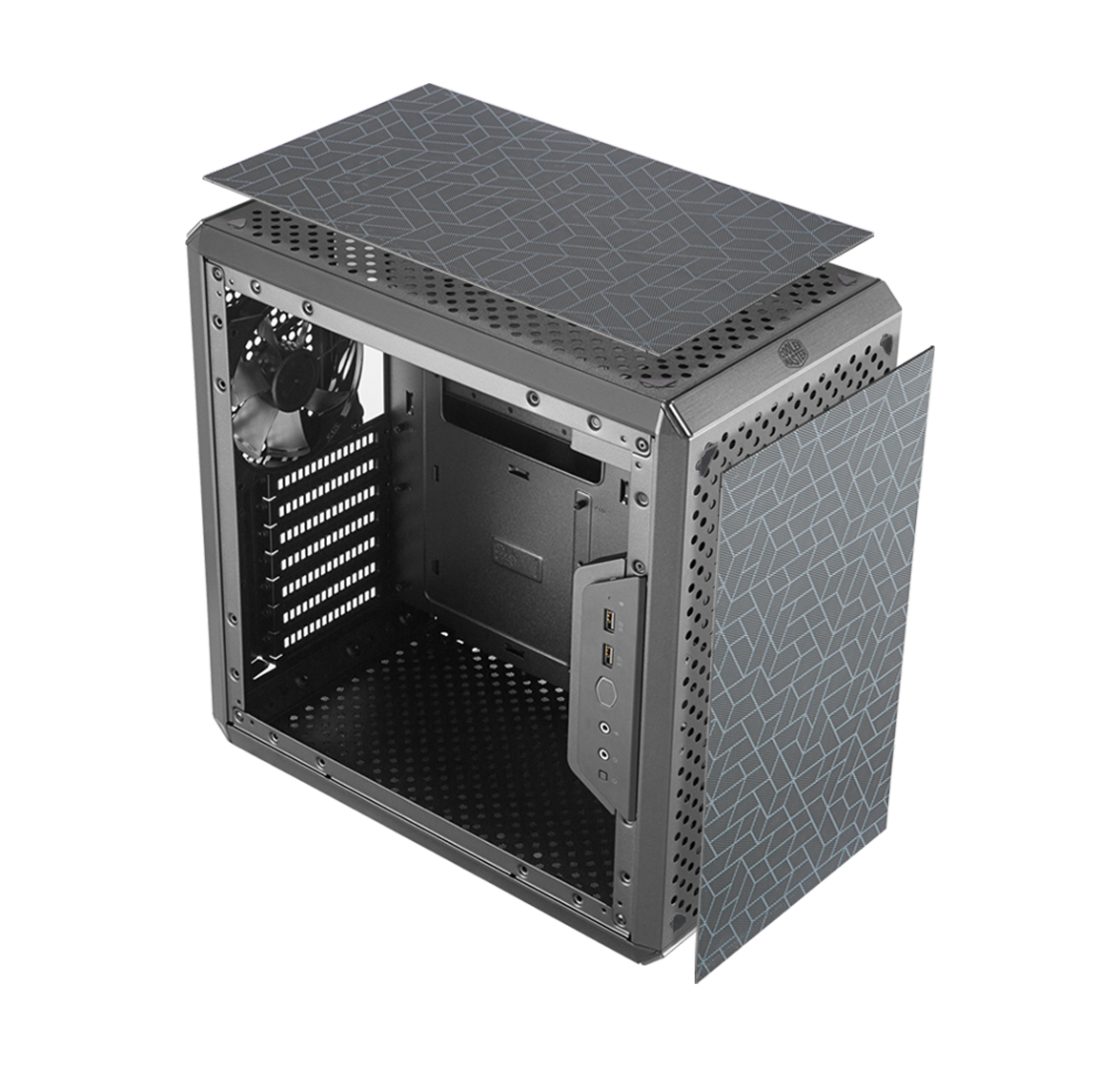

MAGNETIC DUST FILTERS
The magnetic dust filters feature a unique design. Magnets allow for quick
removal and installation for easy cleaning of the dust filters with rubber
stompers to keep the filters from sliding.
EDGE-TO-EDGE TRANSPARENT SIDE PANEL
The side panel displays system builds in full view.

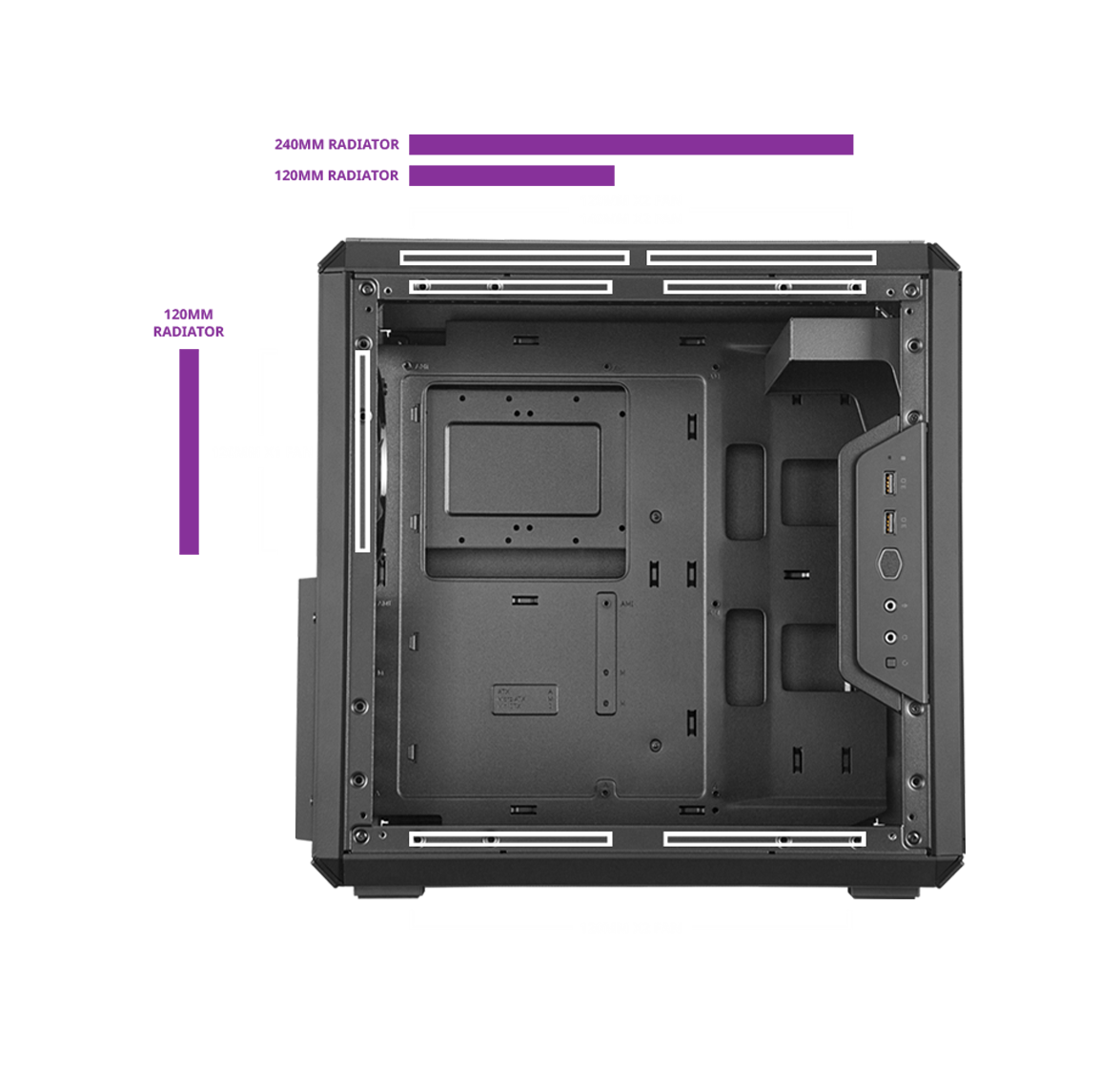

COOLING SUPPORT
- The bottom supports up to two 120mm fans.
- The rear supports a 120mm fan or 120mm radiator.
- The top supports up to two 120mm/140mm fans or a 120/240mm
radiator.
STORAGE SUPPORT
Each storage caddy can mount either 2x 2.5" drives or 1x 3.5" drive, two
caddies included.
Possible Configurations:
4x 2.5" drives | 2x 3.5" drives | 2x 2.5" drives + 1x 3.5" drive
MOTHERBOARD SUPPORT
The internal layout and PSU location adapts to the motherboard. If a standard
ATX motherboard is used, the PSU mounts to the top-front of the chassis with the
ability to shift upward or downward. For mini-ITX builds, the PSU can be located
in the conventional bottom-rear position for increased front panel
ventilation.

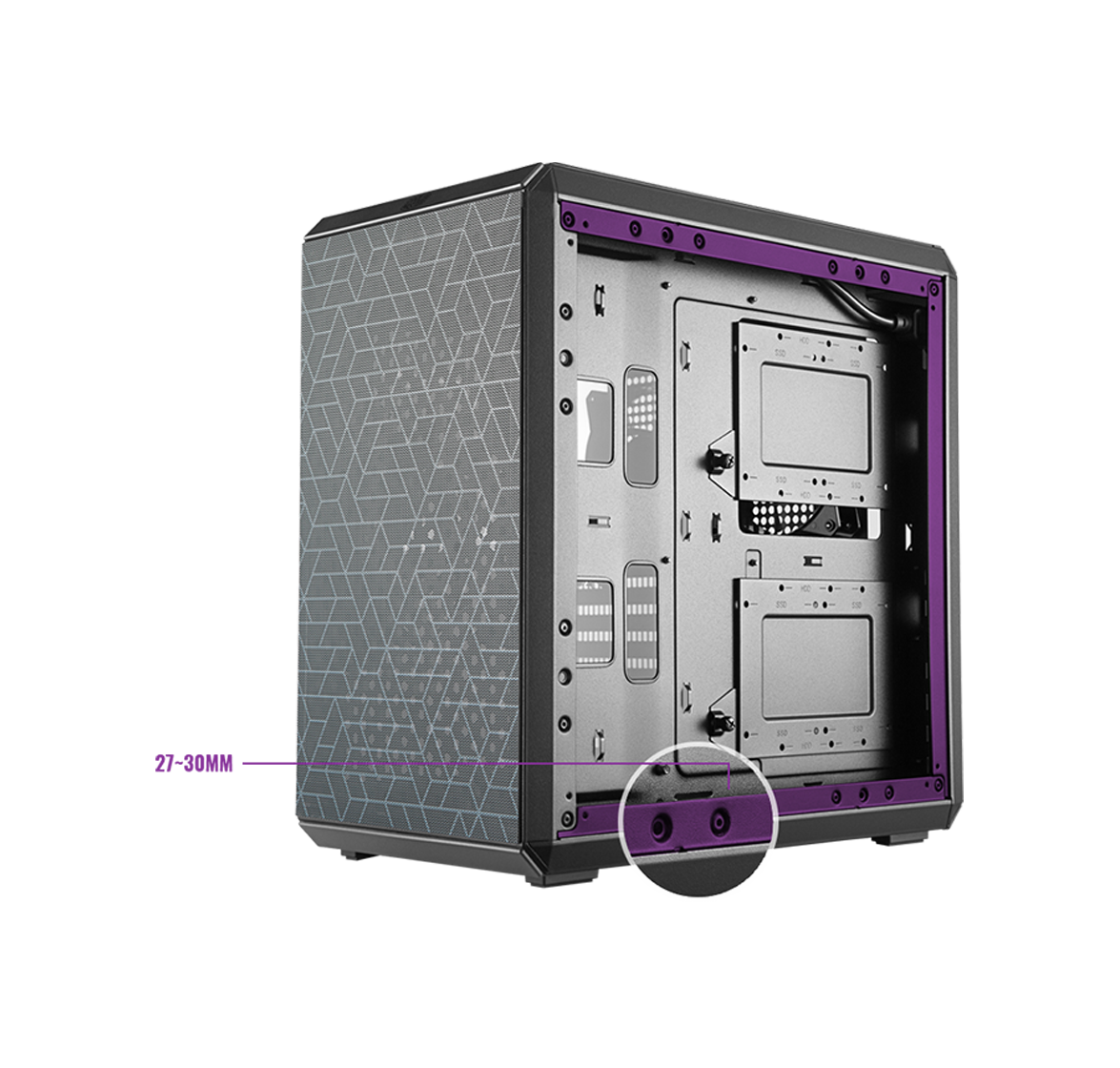

CLEAN ROUTING SPACE
Behind the motherboard tray, 27~30mm width of space is offered for cable
management with the entire perimeter dedicated as a channel for cables.
Specifications
|
MATERIALS - SIDE
PANEL |
Acrylic |
|
DIMENSIONS
(LXWXH) |
386(L) x 230(W) x
381(H) mm |
|
MOTHERBOARD
SUPPORT |
ATX, Micro ATX, Mini
ITX |
|
EXPANSION
SLOTS |
7 |
|
5.25" DRIVE
BAYS |
0 |
|
2.5" / 3.5" DRIVE
BAYS (COMBO) |
2 (each bay supports: 1
HDD or 2 SSDs) |
|
2.5" DRIVE
BAYS |
0 |
|
I/O
PANEL |
2x USB 3.0, 1x 3.5mm
Audio Jack, 1x 3.5mm Mic Jack |
|
PRE-INSTALLED FANS -
REAR |
1x
120mm |
|
FAN SUPPORT -
TOP |
2x
120/140mm |
|
FAN SUPPORT -
REAR |
1x
120mm |
|
FAN SUPPORT -
BOTTOM |
2x
120mm |
|
RADIATOR SUPPORT -
TOP |
120 / 240mm (35mm max
motherboard component height) |
|
RADIATOR SUPPORT -
REAR |
120mm |
|
CLEARANCE - CPU
COOLER |
160mm/6.29" |
|
CLEARANCE -
PSU |
180mm/7.08" |
|
CLEARANCE -
GFX |
360mm/14.17" (270mm
clearance with PSUs longer than 160mm) |
|
CABLE
ROUTING |
27-30mm |
|
DUST
FILTERS |
Bottom |
|
POWER SUPPLY
SUPPORT |
Top Front Mount, ATX
PS2 |
|
SERIES |
MasterBox
Series |
|
SIZE |
Mid
Tower |
