All stock codes associated to this product
PE5342TGAX, PE5342TG-AX, ATPE5342TGAX, ATPE5342TG-AX

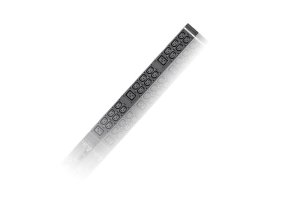

Aten PE5342TG 32A 42-Outlet Metered Thin Form Factor eco
PDU
Overview
- Bank level power metering and monitoring
- Thin form factor design with 56 mm width
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense,
Ping, Telnet, and SNMP V1,V2&V3
- Lok-U-Plug and EZ-Lok Holders easily secures power cables to the PDUeco
Sensors Energy Management Software*
The ATEN NRGence PE5342TG eco PDU is thin form factor intelligent PDU that
contain 42 IEC outlets. The lightweight thin form factor PDUs' 5.6 cm width fits
tight into server racks, providing more space in the rack to increase air flow
and cooling efficiency. This also means faster maintenance thanks to easier
access to equipment installed behind PDUs.
NRGence eco PDUs offer real-time power measurement and threshold alerts
allowing you to monitor the PDUs power status, bank status and circuit breakers,
either at the PDU or from any location via a TCP/IP connection.
With the combination of ATEN eco PDUs and eco Sensors Energy Management
software, a data center is equipped with real-time monitoring, measurement and
analysis of energy consumption with reports of power usage, PUE, RCI and RTI to
meet the ISO 50001 requirements. These indexes will automatically generate
customized reports about your data centers energy use and include energy saving
suggestions. The suggestions allow you to optimize energy usage and save money
without harming your IT equipments reliability. eco Sensors Energy Management
software provides easy multi-PDU management with an intuitive user-friendly
interface that allows you to configure PDUs and monitor the power status of
equipment connected to them.
Package Contents
- 1x PE5342TG eco PDU
- 1x Mounting Kits
- 1x User Instructions
Features
- Thin form factor design with 56 mm width
- Built-in 10/100 Mbps Ethernet port
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense,
Ping, Telnet, and SNMP V1,V2&V3
- 2-level account and password security
- IP/MAC filters, SSL 128-bit data encryption and RADIUS for remote
authentication
- Supports eco Sensors Energy Management Software
- Browser access via IE, Firefox, Chrome, Safari and more
- Bank level power metering and monitoring
- Environment monitoring via external sensors for rack temperature and
humidity readings with threshold alerts
- Real-time aggregate current, voltage, power, and aggregate power
dissipation displayed in a browser-based UI
- Space saving 0U rack mount design with rear mounting
- Lok-U-Plug and EZ-Lok Holders easily secures power cables to the
PDU
eco Sensors Energy Management Software*
- Automatic discovery of all ATEN PDUs within the same intranet
- Remote real-time power measurement and monitoring of PDUs
- Real-time environment monitoring via sensors
- Plotting and monitoring of all ATEN PDU devices
- Exceed threshold alerts through real-time monitoring, SMTP and System
log
- Power analysis reports
* eco Sensors is designed to work with NRGence eco PDUs, and is bundled
with all PE series packages.
Diagram
Specifications
|
Electrical |
|
Nominal
Input Voltage |
100 240
VAC |
|
Maximum
Input Current |
32A(Max) |
|
Input
Frequency |
50-60
Hz |
|
Input
Connection |
IEC 60309
32A |
|
Input
Power |
7360
VA(Max) |
|
Outlet
Type |
Total: 36 x IEC320 C13
+ 6 x IEC320 C19 |
|
Bank1: Outlet 1 21; 18
x C13 + 3 x C19 |
|
Bank2: Outlet 22 42; 18
x C13 + 3 x C19 |
|
Nominal
Output Voltage |
100 240
VAC |
|
Maximum
Output Current (Outlet) |
C13:
10A(Max) |
|
C19:
16A(Max) |
|
Maximum
Output Current (Bank) |
16A(Max) |
|
Maximum
Output Current (Total) |
32A(Max) |
|
Breakers |
2 x 16A Slim
Breaker |
|
Metering |
Bank Level Current,
Voltage, VA , PF and kWh Monitoring |
|
Outlet
Switching |
None |
|
Environment
Sensor Ports |
2 |
|
Metering
Accuracy |
Voltage Range: 100VAC ~
250VAC +/-1% |
|
Power Range: 100W ~
Maximum Capacity +/- 2% |
|
Current Range: 0.1A~1A
+/- 0.1A, 1A~20A +/-1% |
|
Physical
Properties |
|
Dimensions
(L x W x H) |
177.50 x 5.60 x 4.80
cm |
|
(69.88 x 2.2 x 1.89
in.) |
|
Weight |
5.57 kg ( 12.27 lb
) |
|
Power
Cord Length |
3
m |
|
Environmental |
|
Temperature
(Operating / Storage) |
040C /
-2060C |
|
Humidity
(Operating & Storage) |
080% RH,
Non-Condensing |
|
Compliance |
|
EMC
Verification |
CE, Others by
Request |
|
Safety
Verification |
CE-LVD, Others by
Request |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
