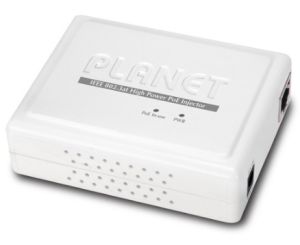

Planet POE-161 IEEE 802.3at Gigabit High Power over Ethernet

The POE-161 is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet Injector with maximum up to 30 watts of power output over Ethernet cables. It is designed specifically to fill the demand of the growing higher power required network equipment such as PTZ (Pan, Tilt &Zoom) network cameras, PTZ Speed Dome, color touch-screen / video and voice over IP (VoIP) telephones, multi-channel (11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The POE-161 High Power Injector is an ideal solution to delivering data and power to network devices directly via the RJ-45 Port interface without the need of installing extra power outlets and electrical cabling.

Quick and Easy High Power PoE Network Deployment
The POE-161 is a Mid-Span IEEE 802.3at Gigabit High Power over Ethernet Injector which provides DC 56V over Ethernet cables. The POE-161 inserts DC voltage into Cat.5/5e/6 cable, allowing the cable between the Injector (POE-161) and Splitter (POE-162S) to transfer data and power simultaneously for up to 100 meters. The POE-161 delivers the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3at Gigabit High Power over Ethernet Injector, and the connected IEEE 802.3at Gigabit High Power over Ethernet splitter will spilt the digital data and the power into two selectable DC outputs (12VDC / 24VDC).

Cost effective and Easy Cabling Installation
With IEEE 802.3at Gigabit High Power over Ethernet devices installed, the system administrator can use only one single RJ-45 Ethernet cable to carry both power and data to each device. Besides, by connecting to the high power PoE splitter POE-162S, the POE-161 can offer benefits of cost saving, easy networking planning and high reliability. Upon the installation of IEEE 802.3at compliant devices, the POE-161, when functioning with the POE-162S, can keep the connection while migrating or splitting the power and the Ethernet digital packets. It thus reduces cables, eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place, and most of all, reduces installation time. The high Power over Ethernet solution frees the Security IP Camera and wireless AP deployment from restrictions of power outlet locations.

Hardware Version version 2
Interface "Data" Input Port1 x RJ-45 STP
"PoE (Data+Power)" Output Port1 x RJ-45 STP
DC 56V Input Power Socket1
LED Indicator System: Power x 1 (Green)
PoE Port: PoE in Use x 1 (Green)
Network Cable 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 95 x 70 x 25 mm
Weight 83g
Unit Input Voltage DC 56V, 0.53A
Power Requirements 100-240V AC, 50/60Hz
Power Consumption 30 watts (max).
Number of devices can be powered 1
Power over Ethernet
PoE Standard IEEE 802.3at Gigabit Power over Ethernet standard / Mid-Span PSE
PoE Power Output DC 56V / 30 watts
PoE Power supply Type Mid-Span
Power Pin Assignment 4/5(+), 7/8(-)
Standards Conformance
Standards Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)

RJ-45 Interface
2-Port RJ-45 interfaces
1-Port Data + Power output
1-Port Data input
1 DC 56V input power socket

PoE
Complies with IEEE 802.3at Gigabit High Power over Ethernet standard, Mid-Span PSE
Provides DC 56V power over RJ-45 Ethernet cable to devices with Ethernet port
Provides PoE power to 1 IEEE 802.3at compliant device
Supports PoE Power up to 30 watts for PoE port
Auto-detects PoE IEEE 802.3at equipment, protecting the devices from being damaged by
incorrect installation
Remote power feeding up to 100m
IEEE 802.3af Splitter devices compatible

Hardware
Plastic case
LED indicators for Power LED and PoE In-use

Standard Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at Power over Ethernet
FCC Part 15 Class A, CE
