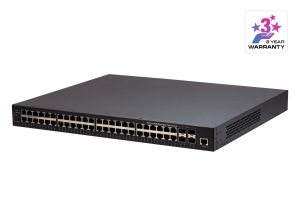

Aten ES0152P 52-Port GbE PoE Managed Switch
Overview
- Incorporates 48 RJ-45 10/100/1000 Mbps ports and 4 SFP uplink ports
(10Gbps)
- Automatically detects KE/VE89 series devices
- Plug-and-play without additional settings
- 802.3af PoE/ 802.3at PoE+ Port configuration and
scheduling
The ES0152P is a feature-rich managed switch for ATEN KE series KVM over
IP extenders and VE89 series Video over IP extenders. Ideal for installation in
combination with the KE / VE89 series products, the ES0152P helps users build
their OT infrastructure with the KE series by eliminating the hassles of
complicated setup.
Deploying the ES0152P is fast and easy. With everything plug and play, there
is no need to install software or configure devices. Simply connect the KE /
VE89 transmitters and receivers to the ES0152P using Cat 5e/6 cables and all KE
/ VE89 series devices on the same LAN will automatically be
detected.
The ES0152P network switch provides a 52-port, high-performance
configuration, a complete array of L2 features and advanced functionalities
including Layer 3 static route, DHCP server, IPv6 support and LLDP, delivering a
versatile solution for improving network performance.
The ES0152P offers a combination of SFP+ (fiber) and RJ45 (copper) ports for
servicing a range of network needs. It supports 4 (1G/10G) SFP+ and 48
(10M/100M/1G) RJ45 with PoE+ (Support 802.3at/af) ports. Featuring Power over
Ethernet (PoE) function, the ES0152P can provide up to 740 Watts power budget
across 48 RJ45 ports thus eliminating the need for a power adapter and
effectively reducing the power configuration cost.
The ES0152P comes with embedded DMS functions to facilitate device management
anytime and anywhere. Its intuitive, user-friendly interface enables IT
administrators to set up and manage their networks and all the connected KE /
VE89 devices effortlessly. It also has comprehensive security features such as
IP source guard and ACL to guard your network from unauthorized
access.
With a full range of functions to help with optimizing network efficiency,
manageability and reliability for their network environment, the ES0152P is an
ideal network switch solution for SMBs and enterprises, and even more so for
those that have chosen to adopt ATEN KE series KVM over IP extenders or VE89
series Video over IP extenders into their OT infrastructure.
Package Contents
- 1x ES0152P 52-Port GbE PoE Managed Switch
- 1x AC Power Cord
- 1x RJ45 to DB9 Serial Console Cable
- 1x Foot Pad Set (4 pcs.)
- 1x Mounting Kit
- 1x User Instructions
Features
- Auto detects KE/VE89 series devices
- Plug-and-play without additional settings
- Supports IGMP Snooping Fast Leave
- Supports Flow Control
- Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
- Supports 48 Gigabit Ethernet ports and 4 SFP uplink ports
(10Gbps)
- High-performance Gigabit Ethernet L2 access switch with 176 Gbps switching
capacity - significantly improve the responsiveness of applications and file
transfer times
- Built in Device Management System (DMS) to provide an overview of all
connected KE/VE89 devices for management
- Supports IEEE 802.1w Rapid Spanning Tree Protocol ensuring a faster
recovery from failed links and enhancing overall network stability and
reliability
- Comprehensive QoS allowing the marking, classification, and scheduling of
up to four traffic types across the network
- Enhanced Security - Port Security limits the total number of devices using
a switch port and protects against MAC flooding attacks
- IPv4/IPv6 Management
- 802.3af PoE/ 802.3at PoE+ Port configuration and
scheduling
Diagram
Specifications
Connectors |
RJ-45
10/100/1000 Ports |
48 |
SFP
Uplink Ports |
4 |
Console
Ports |
1 x
RJ45 |
Performance |
Switching
Capacity |
176
Gbps |
Forwarding
Rate |
130.95
Mpps |
Jumbo
Frames |
10240
Bytes |
Maximum Input Power
Rating |
100-240V
AC,50-60Hz |
Power
Consumption |
AC110V/885.36W;
AC220V/858.09W (PoE on) |
PoE |
Standard
compliance |
802.3af PoE
/ |
802.3at
PoE+ |
Number
of Ports That Support PoE/PoE+ |
48 |
Max.
PoE Power budget per port |
PoE :
15.4W/ |
PoE+:
30.0W |
Total
PoE Power budget |
740W |
Environmental |
Operating
Temperature |
050C |
Storage
Temperature |
-2060C |
Humidity |
1090% RH,
Non-condensing |
Physical
Properties |
Rack
Space |
19" |
Housing |
Metal |
Weight |
5.60 kg ( 12.33 lb
) |
Dimensions
(L x W x H) |
44.20 x 37.50 x 4.40
cm |
(17.4 x 14.76 x 1.73
in.) |
Carton
Lot |
2
pcs |
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
