All stock codes associated to this product
PE5108GAXG, PE5108G-AX-G, ATPE5108GAXG, ATPE5108G-AX-G

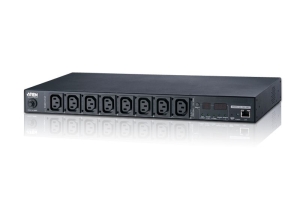

Aten PE5108G 15A/10A 8-Outlet 1U Metered eco PDU
Overview
- Bank level power metering and monitoring
- Environment Monitoring : support external temperature/temperature &
humidity sensors for rack temperature and humidity monitoring
- Current, voltage, power, power dissipation, temperature, and humidity
metering and threshold level setting
- Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense,
Ping, Telnet, and SNMP V1,V2&V3
- 1U 8-Outlet eco PDU
- Bank level metering
ATEN has developed a new generation of green energy power distribution units
(PDUs) to effectively increase the efficiency of data center power usage. The
PE5108 eco PDUs are intelligent PDUs that contain 8 AC outlets and are available
in various IEC or NEMA socket configurations. They provide secure, centralized,
intelligent, power management of data center IT equipment (servers, storage
systems, KVM switches, network devices, serial data devices, etc.), as well as
the ability to monitor the center's health environment via
sensors*.
eco PDUs offer real-time power measurement - allowing you to monitor the
power status of devices attached to the PDUs, from practically any location via
a TCP/IP connection.
eco PDU supports any 3rd party v3 SNMP Manager Software and eco Sensors
(Energy Management Software). eco Sensors provides you with an easy method for
managing multiple devices, offering an intuitive and user friendly Graphical
User Interface that allows you to configure a PDU device and monitor power
status of the equipment connected to it. With eco Sensors, the Sensor-enabled
eco PDU also offers comprehensive power analysis reports which can separate by
departments and locations, providing precise measurements of current, voltage,
power and watt-hour in a real-time display.
With its advanced security features and ease of operation, the eco PDU is the
most convenient, most reliable, and most cost effective way to remotely manage
power access for multiple computer installations and allocate power resources in
the most efficient way possible.
* Sensors are optional accessories. A sensor-enabled installation is required
to generate a more complete energy-efficient data and chart. Higher sensor
installation density is helpful to generate more accurate data.
Package Contents
- 1x PE5108 eco PDU
- 1x Mounting Kit
- 1x Power Cord
- 1x CD-ROM (Manual, eco Sensors Software)
- 1x User Instructions
Features
Connections
- Support 10/100Mbit Ethernet Interface
- Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense,
Ping, Telnet, and SNMP V1,V2&V3
- Support 2-level account/password security, IP/MAC filter, 128 bit SSL,
RADIUS
- Support : eco Sensors, Browser (IE, Firefox, Chrome,
Safari)
Metering
- Bank level power metering and monitoring
- Environment Monitoring : support external temperature/temperature &
humidity sensors for rack temperature and humidity monitoring
- Current, voltage, power, power dissipation, temperature, and humidity
metering and threshold level setting
Diagram
Specifications
Electrical |
Nominal Input
Voltage |
100 240
VAC |
Maximum Input
Current |
10A
Max |
Input
Frequency |
50-60
Hz |
Input
Connection |
IEC 60320
C14 |
Input
Power |
2300
VA(Max) |
Outlet
Type |
Total: 8 x IEC320
C13 |
Nominal Output
Voltage |
100 240
VAC |
Maximum Output Current
(Outlet) |
C13 :
10A(Max) |
Maximum Output Current
(Bank) |
10A(Max) |
Maximum Output Current
(Total) |
10A(Max) |
Breakers |
1 x 15A Non-Fuse
Breaker |
Metering |
Bank level Current,
Voltage, VA , PF and KWh Monitoring |
Outlet
Switching |
None |
Environment Sensor
Ports |
2 |
Metering
Accuracy |
Voltage Range: 100VAC ~
250VAC +/-1% |
Power Range: 100W ~
Maximum Capacity +/- 2% |
Current Range: 0.1A~1A
+/- 0.1A, 1A~20A +/-1% |
Physical
Properties |
Dimensions (L x W x
H) |
43.24 x 4.40 x 21.93
cm |
Weight |
2.82
kg |
Power Cord
Length |
3
m |
Environmental |
Temperature (Operating
/ Storage) |
0 50C / -20
60C |
Humidity (Operating
& Storage) |
0 80% RH,
Non-Condensing |
Compliance |
EMC
Verification |
CE, Others by
Request |
Safety
Verification |
TUV-CB, CE-LVD, Others
by Request |
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
