All stock codes associated to this product
PE0210SGATG, PE0210SG-AT-G, KVAPE0210SG, KVA-PE0210SG, 4719264648373

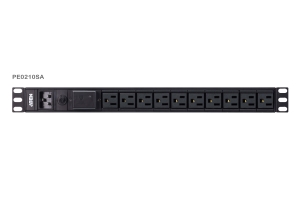

Aten PE0210S Basic 1U PDU with surge protection
Overview
- Surge Protection
- Space saving 1U rack mount design
- IEC or NEMA outlet models
- Overcurrent Protection
The Atens PE0210S, a 10-outlet, 1U rack mount power distribution unit (PDU),
provides IEC and NEMA output. It distributes power to 10 receptacles from a
single plug with unfiltered electrical pass-through. The PE0210S also provides
surge protection, prevents damage to your equipment from power surges and
spikes. The integrated surge protector includes a LED indicator, letting you
know the status of your equipment.
Aluminum housing helps prolong the units life with rugged casing made of
impact-resistant material for maximum durability. Basic 1U PDU can be easily
mounted to wall, wooden furniture, or work bench.
Package Contents
- 1x Basic PDU
- 1x Power cord
- 1x User Instructions
Features
- Space saving -1U rack mount design
- IEC or NEMA outlet models
- Surge Protection
- Over-current Protection
- Aluminum material
- Works with data centers, server rooms and telecom
equipment
Diagram
Specifications
|
Electrical |
|
Nominal Input
Voltage |
100-240
VAC |
|
Maximum Input
Current |
16A
(Max) |
|
Input
Frequency |
50-60
Hz |
|
Input
Connection |
For G Plug: IEC-320
C20 |
|
For Z Plug: Chinese
16A |
|
Input
Power |
3840VA(Max) |
|
Outlet
Type |
(10) IEC 320
C13 |
|
Maximum Output Current
(Outlet) |
10A
(Max) |
|
Maximum Output Current
(Bank) |
16A
(Max) |
|
Maximum Output Current
(Total) |
16A
(Max) |
|
OPD(Overcurrent
Protection Device) |
Yes |
|
Physical
Properties |
|
Dimensions (L x W x
H) |
48.20 x 4.44 x 4.50
cm |
|
(18.98 x 1.75 x 1.77
in.) |
|
Weight |
0.67 kg ( 1.48 lb
) |
|
Power Cord
Length |
10ft(3*2.5mm2) |
|
Environmental |
|
Temperature (Operating
/ Storage) |
0 40
/ -20 60 |
|
*When the environmental
temperature comes close 40 degrees, it is recommended to lower the load to
60% to comply to the safety regulations. |
|
Elevation (Operating /
Storage) |
3000m |
|
Compliance |
|
EMC
Verification |
CE |
|
Safety
Verification |
CE,LVD |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
