The TP-Link Archer TX3000E is a high-performance Wi-Fi 6 adapter that delivers up to 2402 Mbps of 5GHz bandwidth and up to 574 Mbps of 2.4GHz bandwidth. It also features 802.11ax/ac/n/a support for 5Ghz networks and 802.11ax/n/g/b support for 2.4Ghz networks. In addition, the Archer TX3000E includes Bluetooth 5.0 support for connecting to Bluetooth-enabled devices.
The TP-Link Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter is the latest and greatest in Wi-Fi technology. With speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz), it is capable of breaking the gigabit barrier. The Intel Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router. Two multi-directional antennas with magnetized base are designed for optimum signal reception. The latest Bluetooth technology achieves 2 Faster Speed and 4 Broader Coverage than BT 4.2. The latest security enhancements WPA3 provides enhanced protection in personal password safety. Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments. Full support for 802.11ac/a/b/g/n standards.
- Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- The latest security enhancements WPA3 provides enhanced protection in personal password safety
- The latest Bluetooth technology achieves 2 Faster Speed and 4 Broader Coverage than BT 4.2
- Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Intel Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
- 75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting and seamless live streaming
- Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

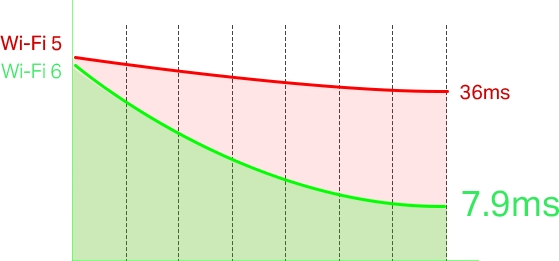

The TP-Link Archer TX3000E is a high-performance Wi-Fi 6 adapter that is designed to provide gamers with the best possible gaming experience. The adapter uses the latest Wi-Fi 6 standard to offer extremely fast speeds, ultra-low latency, and uninterrupted connectivity. With 1024-QAM and a 160 MHz bandwidth, the Archer TX3000E is able to provide powerful, continuous Wi-Fi to fully unlock the potential of your Wi-Fi 6 router. OFDMA reduces lag by up to 75%, making for an incredibly smooth gaming experience.
The TP-Link Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter is perfect for anyone who wants to enjoy smooth gameplay and lower latency. With its revolutionary OFDMA technology, this adapter can reduce lag by up to 75%. Additionally, the two multi-directional and high-performance antennas provide extended coverage so you can game anywhere and anytime.
Archer TX3000E - A Revolutionary Combination

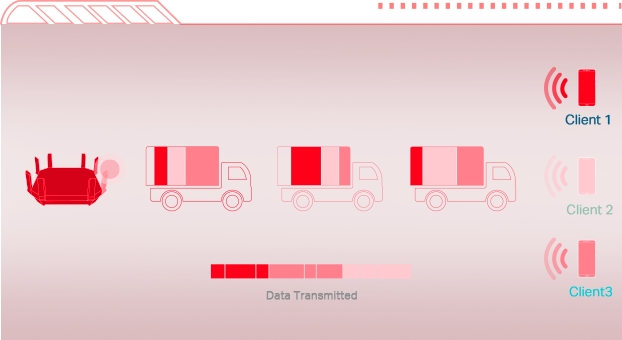

OFDMA and MU-MIMO technologies ensure the most efficient Wi-Fi connection for your PC with simultaneous entertainment for all. Bluetooth 5.0 Compatible. Archer TX3000E is compatible with the latest Bluetooth 5.0 Technology, achieving 2 faster speed and 4 broader coverage than Bluetooth 4.2. Connect as many devices as you want, including game controllers, headphones, and keyboards, to enjoy a smoother experience than ever before.

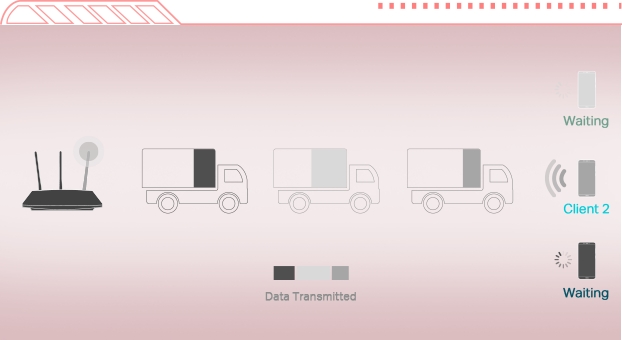

802.11ac | without OFDMA
Specifications
|
HARDWARE
FEATURES |
|
Dimensions |
3.7 x 4.8 x 0.8
in |
|
(95.2 x 120.8 x 21.5
mm) |
|
Antenna
Type |
Two High-Gain Dual Band
Antennas |
|
Magnetized Antenna
Base |
|
Chipset |
Intel Wi-Fi 6
Chipset |
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE 802.11ax/ac/n/a 5
GHz |
|
IEEE 802.11ax/n/g/b 2.4
GHz |
|
Bluetooth
5.0/4.2/4.0 |
|
WLAN Signal
Rate |
5
GHz |
|
11ax: Up to 2402
Mbps(dynamic) |
|
11ac: Up to 1733
Mbps(dynamic) |
|
11n: Up to 300
Mbps(dynamic) |
|
11a: Up to 54
Mbps(dynamic) |
|
|
2.4
GHz |
|
11ax: Up to 574
Mbps(dynamic) |
|
11n: Up to 300
Mbps(dynamic) |
|
11g: Up to 54
Mbps(dynamic) |
|
11b: Up to 11
Mbps(dynamic) |
|
WLAN Reception
Sensitivity |
5 GHz
: |
|
11ax HT160-56.25dBm |
|
11ax HT80:
-59dBm |
|
11ax HT40:
-62.25dBm |
|
11ax HT20:
-65dBm |
|
|
11ac HT160-62dBm |
|
11ac HT80:
-65.5dBm |
|
11ac HT40:
-69.75dBm |
|
11ac HT20:
-73.75dBm |
|
11n HT40:
-74.5dBm |
|
11n HT20:
-77.5dBm |
|
11a 54Mbps:
-77.75dBm |
|
11a 6Mbps:
-94.5dBm |
|
|
2.4GHz
: |
|
11ax HT40:
-60.75dBm |
|
11ax HT20:
-63.75dBm |
|
11n HT40:
-73dBm |
|
11n HT20:
-76.25dBm |
|
11g 54Mbps:
-76.5dBm |
|
11b 11Mbps:
-89dBm |
|
WLAN Transmit
Power |
5 GHz : 27dBm(FCC) /
23dBm(CE) (EIRP) |
|
2.4 GHz : 26dBm(FCC) /
20dBm(CE) (EIRP) |
|
WLAN
Modes |
Infrastructure
mode |
|
Wireless
Security |
Support 64/128 bit WEP,
WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
|
Modulation
Technology |
DBPSK, DQPSK, CCK,
OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
|
Bluetooth
Profiles |
Archer TX3000E support
the native BT profiles implemented in Windows 10. |
|
For the latest
information on Windows 10 BT profiles please refer to
https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles |
|
OTHERS |
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
Archer
TX3000E |
|
Magnetized Antenna Base
with 1m RF Cable |
|
Two 5 dBi High Gain
Antennas |
|
Low-Profile
Bracket |
|
Bluetooth Header
Cable |
|
Quick Installation
Guide |
|
Resource
CD |
|
System
Requirements |
Windows 10(64-bit)
only |
|
Environment |
Operating Temperature:
0~40
(32~104) |
|
Storage Temperature:
-40~70
(-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~90%
non-condensing |
