All stock codes associated to this product
CA-H16WR-W1-AU, CAH16WRW1AU, 4789906

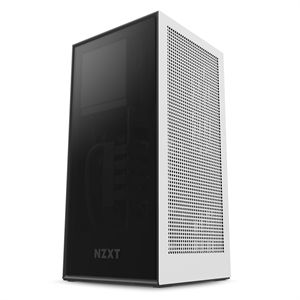

NZXT H1 SFF Case with PSU, AIO, and Riser Card - Matte
White
Overview
The all-new NZXT H1 provides a beautifully small vertical chassis,
maintaining full-sized GPU compatibility. The building experience is
streamlined, with pre-routed cable channels and an integrated PSU and AIO liquid
cooler. The dual-chamber exhaust layout maintains superior cooling for the CPU
and GPU, providing each with a dedicated air source.
- The compact vertical design provides a small spatial footprint while
maintaining support for most full-sized GPUs on the market so you can maintain
your desk real estate without sacrificing graphics power.
- The toolless SSD tray and riser card are incredibly simple to install. In
addition to pre-routed cables, the motherboard I/O faces down, routing all
cables through the bottom of the case for a clean, simplified
appearance.
- Integrated power supply and AIO liquid cooler provide a better build
experience, along with pre-routed cables that make it easy to manage the
clutter and cut down on build time. An integrated PCIe Riser card is also
included for vertical GPU mounting.
- The dual-chamber airflow is thermally designed to allow the CPU, GPU, and
PSU to pull in fresh air, and exhaust hot air without affecting temperatures
of neighboring components.
Specifications
|
Dimensions |
W: 187mm H: 387.7mm D:
187.6mm |
|
Material(s) |
SGCC Steel and Tempered
Glass |
|
Weight |
6.53kg |
|
Motherboard
Support |
Mini-ITX (Increased
Wi-Fi compatibility with a wired antenna) |
|
CPU &
Socket |
Intel:
115X |
|
AMD: AMD4, FM2+, FM2,
FM1, AM3+, AM3, AM2 |
|
Front I/O
Ports |
1x USB 3.2 Gen 2
Type-C |
|
1x USB 3.2 Gen 1
Type-A |
|
1x 4 Pole Headset Audio
Jack |
|
Filters |
All Air
Intakes |
|
Included
Accessories |
650W SFX-L 80Plus Gold
Fully Modular Power Supply |
|
140mm AIO Liquid
Cooler |
|
PCIe 16x Gen3
High-Speed Riser Card |
|
Expansion
Slots |
2 |
|
Drive
Bays |
2.5":
2 |
|
Radiator
Support |
1x 140mm (Integrated
AIO 140mm Liquid Cooler for CPU) |
|
Clearance |
GPU
Clearance: |
|
Dimension - 305mm x
128mm; 265mm x 145mm |
|
Thickness - Up to 2.5
Slots |
|
Memory Height:
45mm |
|
Warranty |
3-year warranty on
case, riser card, and AIO |
|
10-year warranty on
PSU |
