Asus USB-AC56 Dual-band Wireless-AC1300 USB 3.0 Wi-Fi Adapter



Overview

  • Next-generation 802.11ac Wi-Fi up to three times faster than 2x2 802.11n adapters
  • Selectable 5 GHz/2.4 GHz dual bands increase signal clarity for better HD multimedia
  • AiRadar technology provides a stronger signal over greater distances
  • External high-gain antenna for 150% stronger Wi-Fi signal
  • USB 3.0 connection for high-performance wireless networking with desktop and notebook PCs

The ASUS USB-AC56 is a dual-band 802.11ac Wi-Fi adapter with a USB 3.0 connection that brings high-performance wireless networking support to desktop and notebook PCs. The USB-AC56 features a USB 3.0 connection with support for wireless data rates up to 400 Mbit/s at 2.4 GHz and 867 Mbit/s at 5 GHz with compatible routers. Suitable for use with both desktop and notebook PCs, the USB-AC56 features a dual internal antenna design for great wireless network coverage with minimal desktop clutter and a removable high-gain external antenna that boosts reception still further in weak Wi-Fi signal areas.

USB-AC56

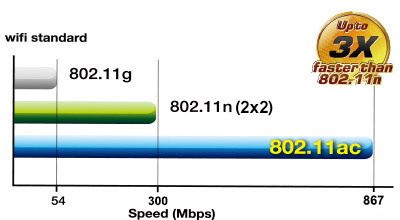

Next gen 802.11ac wireless, up to 3X faster than 2x2 wireless N adapters

The fastest Wi-Fi ever becomes more accessible via USB, going up to 867 Mbps on the clear 5 GHz band. Using 802.11ac wireless, faster connectivity and enjoyment come to all your devices. Compared with current 802.11n, the USB-AC56 delivers up to 867 Mbps at 5 GHz, which is 3X faster than 802.11n!

USB-AC56

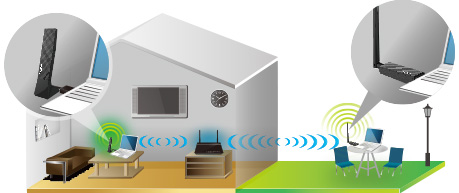

Maximum flexibility for maximum wireless coverage

The USB-AC56 wireless-AC1300 USB adapter can cover larger homes and offices, including multi-floor locations. Its detachable high-gain external antenna and strong dual internal antennas provide ample transmission power for bigger areas. The detachable antenna can be removed to reduce power draw and emissions should medium-range coverage be sufficient. It can also be upgraded with a more powerful antenna if needed.

USB-AC56

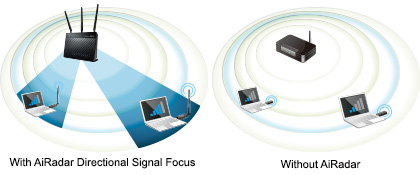

Intelligent signal management for stable wireless connections

ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data throughput speed, and enhanced stability. Because connection strength varies based on your environment, the USB-AC56 Dual-Band Wireless-AC1300 USB wireless adapter uses two internal antennas and an external high gain antenna and high-powered beam packing to detect wireless router locations to shape transmissions so theyre optimized for the fastest, most stable connection strength.

USB-AC56

USB 3.0 for full 802.11ac performance

USB 3.0 allows the USB-AC56 Dual-Band Wireless-AC1300 USB wireless adapter to pair with notebooks and desktops using a bandwidth up to ten times that of USB 2.0. It means the full advantage of 802.11ac networking is realized, as the adapter has enough throughput overhead to support much faster network speeds.

USB-AC56

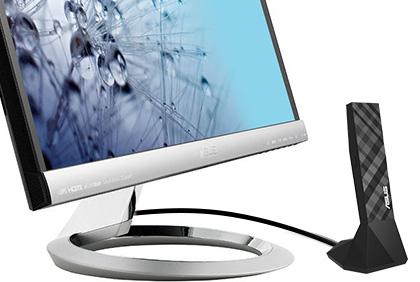

The USB-AC56 also includes a desktop cradle with a three-foot cable for more flexible positioning in troublesome Wi-Fi reception areas.

Specifications

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Product Segment

AC1300 enhanced AC performance : 400+867 Mbps

Ports

USB 3.0 x 1

Data Rate

802.11a : 6,9,12,18,24,36,48,54 Mbps

802.11b : 1, 2, 5.5, 11 Mbps

802.11g : 6,9,12,18,24,36,48,54 Mbps

802.11n : up to 300 Mbps

802.11n TurboQAM : up to 400 Mbps

802.11ac : up to 867 Mbps

Antenna

Internal 2 dBi PCB antenna x 2

External dipole antenna x 1

Operating Frequency

2.4 GHz / 5 GHz

Utilities

ASUS USB-AC56 Utility

Dimensions

11.5 x 2.8 x 1.9 ~ cm (WxDxH)

Weight

50 g

OS Support

Windows 8.1 , 32bit/64bit

Windows 8 , 32bit/64bit

Windows 7 , 32bit/64bit

Windows Vista , 32bit/64bit

Windows XP , 32bit/64bit

Mac OS X 10.9

Mac OS X 10.5

Mac OS X 10.6

Mac OS X 10.7

Mac OS X 10.8

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
