All stock codes associated to this product
BX950MIAZ, BX950MI-AZ, 5059038, UPAPCBX950MIAZ, UPAPCBX950MI-AZ, LS00021, 731304410751

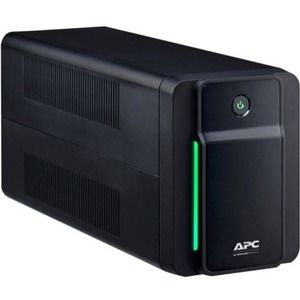

APC by Schneider Electric Back-UPS Line-interactive UPS - 950 VA/520 W - AVR - 8 Hour Recharge - 0 ns Stand-by - 230 V AC Input - 230 V AC Output
Battery Backup &Surge Protector for Electronics and Computers
The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.
Controls/Indicators
| Status Indicators | LED Status display with on line : on battery |
Miscellaneous
| Package Contents | - Back-UPS 950VA, 230V, AVR, Australian Sockets
- User manual
|
Warranty
Management
| Alarm | Low Battery |
| On Battery |
Battery Information
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 3.70 Minute |
| Backup/Run Time (Full Load) | 0 ns |
| Typical Battery Recharge Time | 8 Hour |
Environmental Conditions
| Sound Emission | 40 dB(A) |
| Maximum Operating Temperature | 4.4°C |
| Maximum Operating Elevation | 914.40 m |
| Maximum Storage Elevation | 914.40 m |
| Storage Temperature | -15°C - 40°C |
Technical Information
| Application/Usage | Home |
| Electronic Device |
| Business |
| Gaming Console |
| Computer |
| Network Device |
| Dataline Protection | RJ-45 |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | AUS |
| AVR | Yes |
| Transfer Time | 6 ms |
Physical Characteristics
| Weight (Approximate) | 6.10 kg |
| Colour | Black |
| Height | 160 mm |
| Width | 120 mm |
| Depth | 355 mm |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | BX950MI-AZ |
| Manufacturer Website Address | https://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Back-UPS 950VA, 230V, AVR, Australian Sockets |
| Product Line | Back-UPS |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Load Capacity | 950 VA/520 W |
| Surge Energy Rating | 273 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Input Voltage Range | 140 V AC - 300 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
