All stock codes associated to this product
RTAC86US, RT-AC86U-S, II185103
Asus RT-AC86U AC2900 Dual Band WiFi Gaming Router -
Black
Overview
AC2900 Dual Band WiFi Gaming Router,powered by a dual-core processor,
prioritize game traffic by Gear Accelerator, support AiMesh Whole Home Mesh
WiFi, Lifetime Free AiProtection Pro Internet Security, wtfast GPN, Mobile Game
Boost, Open NAT easy port forwarding
- Ultimate gaming experience - Built-in WTFast game accelerator and Adaptive
QoS deliver lag-free online gaming and smooth 4K UHD streaming
- Ultrafast Wi-Fi - AC2900 W-Fi speeds boosted with NitroQAM and 5GHz
quad-stream technology to handle even the busiest home networks with
ease
- Ultrawide Coverage High-performance antennas, ASUS AiRadar and Range Boost
eliminate dead spots, and MU-MIMO maximizes Multi-device
performance
- Ultrapowerful Processor Enjoy smoother networking and faster data
transfers with the PC-grade 1.8GHz 64bit dual-core processor
- Commercial-grade Security AiProtection, powered by Trend Micro, blocks and
neutralizes internet security threats for all your connected smart
devices
- AiMesh Supported - Connect your RT-AC86U to other compatible ASUS routers
to create a powerful and flexible whole-home Wi-Fi network

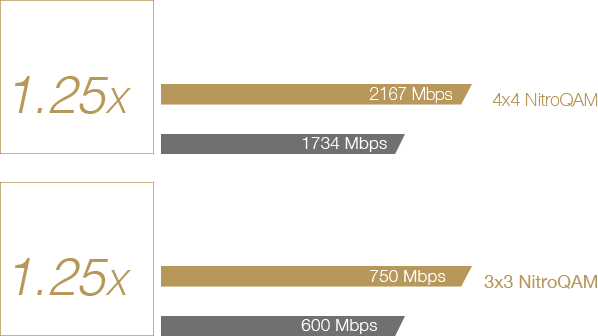

Ultrafast Wi-Fi with NitroQAM and 5GHz Quad-Stream
Technology
Whether you're gaming online in a heated competition or streaming a live
event in 4K UHD, lag and buffering are simply not an option. NitroQAM (1024-QAM)
technology delivers the ultimate 5GHz quad-stream (4x4) speeds of up to
2167Mbps, giving RT-AC86U combined total speed of 2917Mbps. So everyone on your
network can enjoy smooth streaming and low-latency online gaming!
Powerful Hardware, Ultimate Performance
With the increasing popularity of 5GHz Wi-Fi devices, a router needs to
deliver the maximum 5GHz bandwidth possible, with reliable long-range
performance. RT-AC86U has an extra internal 5GHz antenna to provide the ultimate
5GHz quad-stream performance, while RangeBoost significantly improves mid- to
long-distance Wi-Fi coverage. Additionally, RT-AC86U's top-of-the-line 1.8GHz
64bit dual-core processor brings its computational capability to the next level,
enabling USB data transfers of up to 110MB/s and router download/upload speeds
(WAN-LAN throughput) of up to 1600Mbps.
Double Gaming Boost
Enjoy low-latency online gaming with boosted internet and home network
performance!

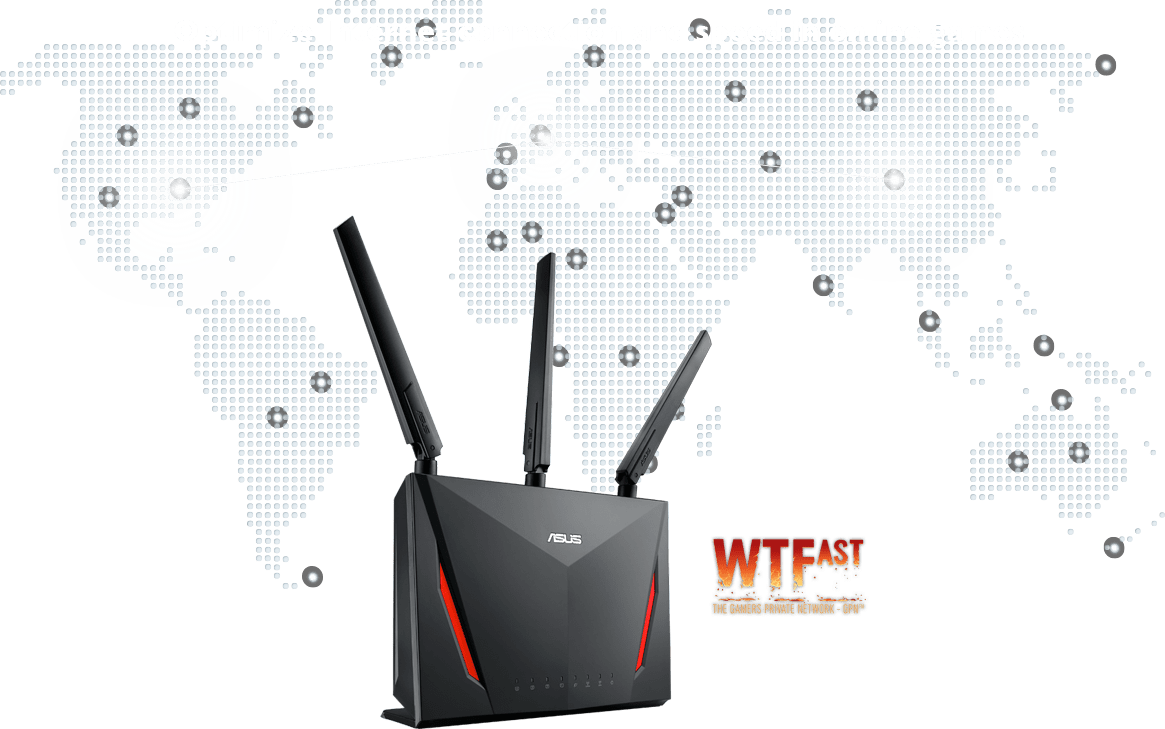

Free Game Accelerator Inside
Ping time and variance are critical technical parameters that affect
responsiveness in online gaming, and their values depend heavily on the route
game packets take to and from their destination. The Gamers Private Network
(GPN) from WTFast automatically performs route optimization, choosing the most
efficient route for game packets, resulting in consistently-lower ping time and
minimal packet loss. With RT-AC86U this optimization is free for accelerating
one selectable device at a time, so you can enjoy the results on supported
competitive multi-player online games.

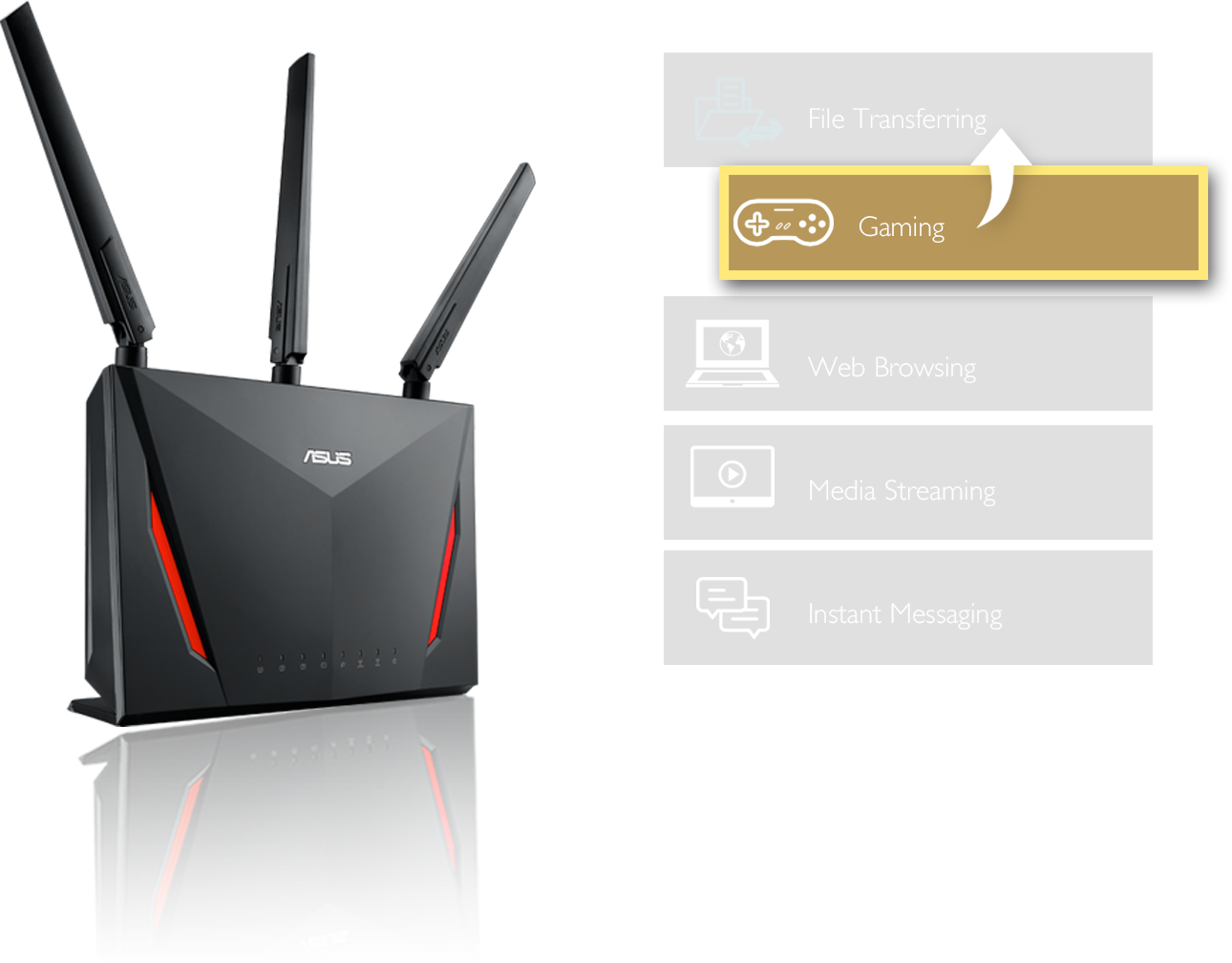

Adaptive QoS Prioritize Your Game
Boost your gaming bandwidth with Adaptive QoS (Quality of Service), which
allows you to easily prioritize gaming packets and activities. You can even
assign full dedicated bandwidth while gaming under gamer solo mode, making
RT-AC86U the perfect ally for low latency gaming anywhere in your home. It
supports major consoles including PlayStation3, PlayStation4, PS4 Pro,
PlayStationVita, Wii U, 3DS and Xbox One.
Multiple Capacity Wi-Fi with Revolutionary MU-MIMO
Technology
MU-MIMO gives every compatible device3 its own dedicated full-speed Wi-Fi
connection, so that multiple devices can connect at the same time without
slowing down the network.
In fact, RT-AC86U is able to connect to multiple MU-MIMO-compatible clients
at each device's maximum speed simultaneously, unlike standard single-user MIMO
where individual devices have to wait for sequential transmissions.

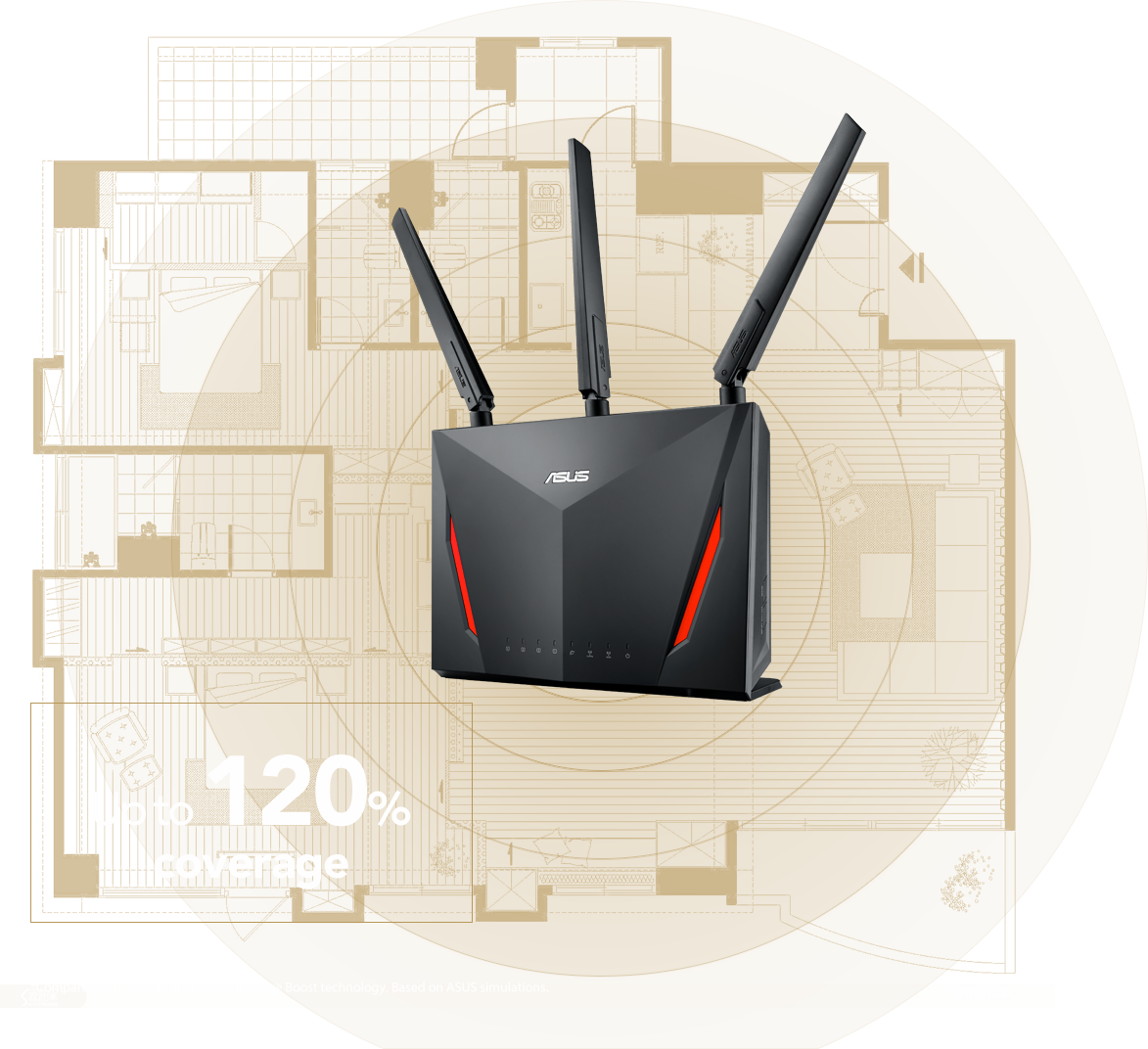

Unbeatable Coverage
With ASUS innovative antenna design and the new Range Boost technology, both
Wi-Fi range and signal stability improve dramatically. AiRadar further focuses
Wi-Fi signal on your devices, making your Wi-Fi faster, clearer and
stronger.

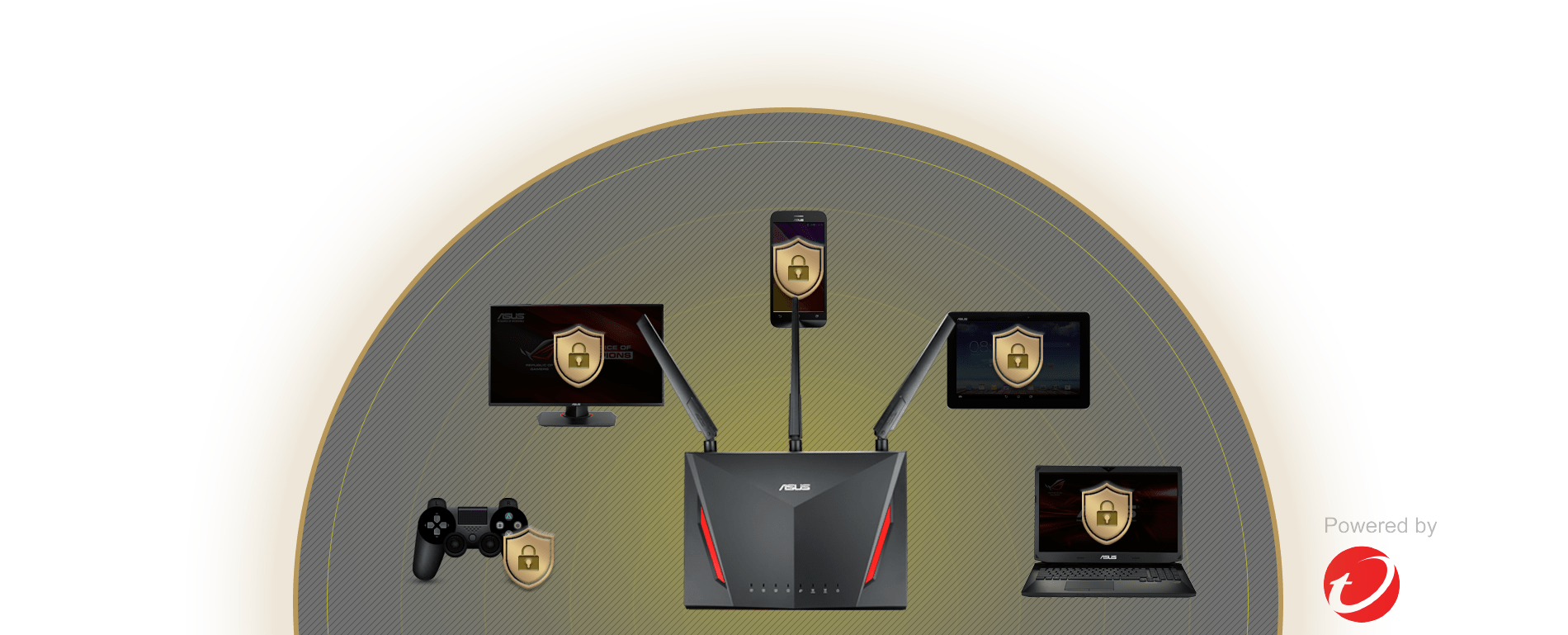

AiProtection Your Digital Playground is
Protected
RT-AC86U incorporates ASUS AiProtection, a commercial-grade network security
system powered by Trend Micro Smart Home Network. With AiProtection, all
connected devices are protected, even if they have no antivirus capability of
their own such as IoT devices. AiProtection blocks common internet-based attacks
before they reach the network, and if an infected device is detected on the
network, AiProtection instantly blocks it to prevent it sending any personal
information to malicious servers.
Fortified Frontline Network Security
Networking is only half the equation when it comes to game performance. As
AiProtection is integrated in RT-AC86U and powered by the router, even if a
device's security software isn't turned on to get around blocked games, for
example AiProtection still protects the network from attacks and intrusions, for
added peace of mind.

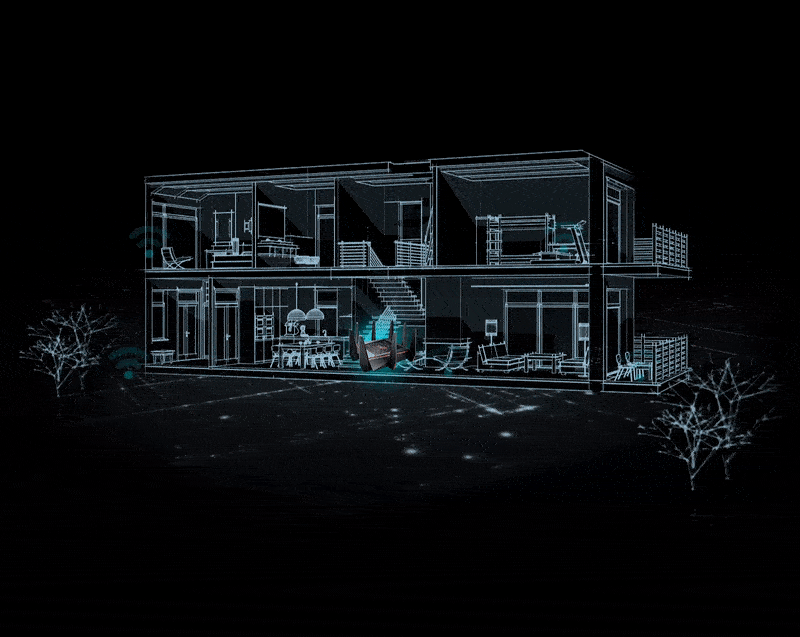

Powerful Whole-home Wi-Fi System. The Way You
Want.
In most cases, your RT-AC86U can deliver smooth, reliable Wi-Fi to every part
of your home. But Wi-Fi coverage can be affected by many factors room layout,
construction materials, and even furnishings. ASUS AiMesh is an innovative new
router feature that fixes these problems: it creates a whole-home Wi-Fi network
using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix
of ASUS router models protecting your investment! AiMesh gives you time-saving
central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely
on for all your devices, all the time!
- Turn your ASUS routers into whole-home Wi-Fi system with a simple firmware
update
- Mix and match preferred models from selected ASUS routers
- Create a Wi-Fi network with either a single SSID or multiple
SSIDs
- All router features works across the entire Wi-Fi system
ASUS Router APP Control Your Network Anywhere
In your increasingly mobile-enabled life, having control over your network
via an app is more important than ever. The new ASUS Router APP is built from
the ground-up to be both intuitive and robust, all without needing to boot up a
PC.
ASUSWRT Easily Control Your Network
RT-AC86U features the enhanced, intuitive ASUSWRT user interface, which gives
you easy access to both the 3-step web-based installation process and a wealth
of robust advanced options.
Connectivity Options
RT-AC86U has four Gigabit LAN ports, USB 2.0 port and USB 3.0 (USB 3.1 Gen 1)
port. Smart TV, game consoles, NAS storage devices and more can now have their
own dedicated ports, making RT-AC86U your digital home hub.
Your Sharing Center
With built-in USB 3.0 (USB 3.1 Gen 1) and USB 2.0 ports, you can connect
USB-enabled devices, such as external storage drives, printers, or a 3G/4G
dongle to your ASUS router and share them conveniently with other users via
Wi-Fi. And with USB 3.1 Gen 1, you can enjoy up to 10X faster data transfer
speeds.
Specifications
Network
Standard |
IEEE
802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4,
IPv6 |
Product
Segment |
AC2900
ultimate AC performance: 750+2167 Mbps |
Coverage
|
Very
large homes |
Data
Rate |
802.11a
: 6,9,12,18,24,36,48,54 Mbps |
|
802.11b
: 1, 2, 5.5, 11 Mbps |
|
802.11g
: 6,9,12,18,24,36,48,54 Mbps |
|
802.11n
: up to 450 Mbps |
|
802.11ac
: up to 1734 Mbps |
|
1024QAM
(2.4GHz) : up to 750 Mbps |
|
1024QAM
(5GHz) : up to2167 Mbps |
Antenna
|
External
detachable antenna x 3 |
|
Internal
antenna x 1 |
Transmit/Receive
|
MIMO
technology |
|
2.4
GHz 3 x 3 |
|
5
GHz 4 x 4 |
Processor
|
1.8
GHz dual-core processor |
Memory
|
256
MB Flash |
|
512
MB RAM |
Wi-Fi
Technology |
Beamforming:
standard-based and universal |
|
1024-QAM
high data rate |
|
20/40/80
MHz bandwidth |
Operating
Frequency |
2.4
GHz / 5 GHz |
Encryption
|
64-bit
WEP, 128-bit WEP, WPA2-Personal, WPA-Personal, WPA-Enterprise ,
WPA2-Enterprise , WPS support |
Firewall
& Access Control |
Access
controlParental control, Network service filter, URL filter, Port
filter |
Management
|
UPnP,
IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port
Forwarding, DMZ, System Event Log |
VPN
Support |
IPSec
Pass-Through |
|
PPTP
Pass-Through |
|
L2TP
Pass-Through |
|
PPTP
server |
|
OpenVPN
server |
|
PPTP
client |
|
L2TP
client |
|
OpenVPN
client |
WAN
Connection Type |
Internet
connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP,
L2TP |
Utilities
|
Router
setup wizard; Firmware restoration; Device discovery; printer setup
utility |
Ports
|
RJ45
for Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for
LAN x 4 |
|
USB
2.0 x 1 |
|
USB
3.0 x 1 |
Features
|
MU-MIMO |
|
Traffic
Analyzer |
|
Adaptive
QoS |
|
WTFast
Gamers Private Network |
|
AiProtection |
|
Parental
Control |
|
Guest
Network : 2.4 GHz x 3, 5 GHz x
3 |
|
Mac
OS Backup |
|
Enhanced
media server (AiPlayer app compatible) |
|
-
Image : Jpeg |
|
-
Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg |
|
-
Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv,
mov |
|
AiCloud personal
cloud service |
|
3G/4G data
sharing |
|
Printer
Server |
|
-
Multifunctional printer support (Windows only) |
|
-
LPR protocol support |
|
Download
Master |
|
-
Support bt, nzb, http, ed2k |
|
-
Support encryption, DHT, PEX and magnet link |
|
-
Upload and download bandwidth control |
|
-
Download scheduling |
|
AiDisk file
server |
|
-
Samba and FTP server with account management |
|
IPTV
support |
|
Roaming
Assist |
Button
|
WPS
Button, Reset Button, Power Button, Wireless on/off Button, LED on/off
Button |
LED
Indicator |
Power
x 1 |
|
Wi-Fi
x 2 |
|
WAN
x 1 |
|
WPS
x 1 |
|
LAN
x 4 |
Power
Supply |
AC
Input : 110V~240V(50~60Hz) |
|
DC
Output : 19 V with max. 1.75 A current |
|
DC
Output : 12 V with max. 3 A current |
OS
Support |
Windows
10 |
|
Windows
8 |
|
Windows
7 |
|
Mac
OS X 10.6 |
|
Mac
OS X 10.7 |
|
Mac
OS X 10.8 |
|
Linux |
Dimensions
|
220
x 160 x 83.3 ~ mm (WxHxD) (Without Bezel) |
Weight
|
872
g |
Operation
mode |
Wireless
router mode |
|
Access
point mode |
|
Media
bridge
mode |
