Model
Name |

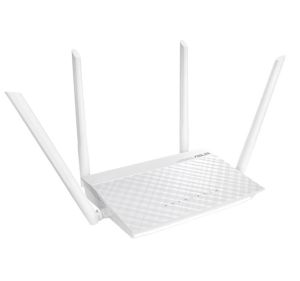

RT-AC59U
V2 |
Network
Standard |
IEEE
802.11a |
|
IEEE
802.11b |
|
IEEE
802.11g |
|
IEEE
802.11n |
|
IEEE
802.11ac |
|
IPv4 |
|
IPv6 |
Data
Rate |
802.11a
: up to 54 Mbps |
|
802.11b
: up to 11 Mbps |
|
802.11g
: up to 54 Mbps |
|
802.11n
: up to 600 Mbps |
|
802.11ac
: up to 867 Mbps |
Antenna |
External
antenna x 4 |
Transmit/Receive |
MIMO
technology |
|
2.4
GHz 4 x 4 |
|
5
GHz 2 x 2 |
Processor |
74Kc
MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate
at up to 775 MHz |
Memory |
32
MB Flash, 128 MB RAM |
Boosts
speed |
Beamforming:
802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for
both beamformer and beamformee |
|
256-QAM
high data rate |
|
20/40/80
MHz bandwidth |
Operating
Frequency |
2.4G
Hz / 5 GHz |
Ports |
RJ45
for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x
4 |
|
USB
2.0 x 1 |
Button |
WPS
Button, Reset Button, Power Button |
LED
Indicator |
Power
x 1 |
|
Wi-Fi
x 2 |
|
WAN
x 1 |
|
USB
x 1 |
|
LAN
x 4 |
Power
Supply |
AC
Input : 100V~240V(50~60Hz) |
|
DC
Output : 12 V with max. 1.5 A current |
Package
content |
RT-AC59U
Gigabit Wi-Fi Router |
|
RJ-45
Cable |
|
Quick
Start Guide |
|
Power
Adapter |
|
Warranty
Card |
Product
Weight (g) |
348g |
AiMesh |
AiMesh:Yes |
|
Primary
AiMesh router:Yes |
|
Primary
AiMesh router:No |
|
AiMesh
node:Yes |
|
AiMesh
node:No |
Router
APP |
ASUS
Router APP:Yes |
Game |
Game
Boost/acceleration:No |
|
WTFast:No |
Alexa |
Support
Alexa skill:No |
IFTTT |
Support
IFTTT:No |
AiProtection |
AiProtection:No |
|
Router
Security Assessment:No |
|
Malicious
site blocking:No |
|
Two-Way
IPS:No |
|
Infected
Device Prevention and Blocking;No |
Parental
Control |
Parental
Control:Yes |
|
Parental
Control Customized Internet schedule:Yes |
Traffic
Control |
Adaptive
QoS:No |
|
Bandwidth
Monitor:No |
|
Bandwidth
limiter:Yes |
|
Maximum
Bandwidth limiter rule:32 |
|
Traditional
QoS:Yes |
|
Maximum
Traditional QoS rule:32 |
|
Traffic
Monitor:Yes |
|
Real-time
traffic monitor:Yes |
|
Wired
Traffic Monitor:Yes |
|
Wireless
Traffic Monitor:Yes |
|
Traffic
Analyzer:No |
|
Traffic
analysis period:Daily, Weekly, Monthly |
|
Website
history:No |
Wireless |
IPv6:Yes |
|
MU-MIMO:No |
|
Wi-Fi
Encryption:Open system, WPA/WPA2-Personal,
WPA/WPA2-Enterprise |
|
UTF-8
SSID:Yes |
|
Guest
Network:Yes |
|
Maximum
Guest Network rule:2.4GHz x3, 5GHz x3 |
|
Guest
Network Encryption:Open system,
WPA/WPA2-Personal |
|
WPS:Yes |
|
Wi-Fi
MAC address filter:Yes |
|
Maximum
MAC filters:64 |
|
Wireless
scheduler:Yes |
|
Airtime
fairness:Yes |
|
RADIUS
Server:Yes |
|
Universal
beamforming:Yes |
|
Explicit
beamforming:Yes |
WAN |
Internet
connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static
IP |
|
Dual
WAN:No |
|
WAN
Aggregation:No |
|
3G/4G
LTE dongle:Yes |
|
Android
tethering:Yes |
|
Port
forwarding:Yes |
|
Maximum
port forwarding rule:64 |
|
Port
triggering:Yes |
|
Maximum
port triggering rule:32 |
|
DMZ:Yes |
|
DDNS:Yes |
|
NAT
Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE
relay |
LAN |
DHCP
Server:Yes |
|
IGMP
snooping:Yes |
|
IPTV:Yes |
|
LAN
Link Aggregation:No |
|
Manually
assign IP address:Yes |
VPN |
VPN
Client L2PT:Yes |
|
VPN
Client OVPN:Yes |
|
VPN
Client PPTP:Yes |
|
VPN
Server IPSec:No |
|
VPN
Server OVPN:Yes |
|
VPN
Server PPTP:Yes |
|
VPN
Fusion:No |
USB
application |
File
System:FAT16, FAT32, NT3G, ext2, ext3 |
|
HDD
hibernation:Yes |
|
Safely
Remove disk:Yes |
|
AiCloud:No |
|
Download
master:No |
|
AiDisk:Yes |
|
Media
Server:Yes |
|
Time
Machine:No |
|
Samba
Server:Yes |
|
FTP
Server:Yes |
|
Shared
Folder privileges:Yes |
Administration |
Operating
mode:Accesspoint, Mediabridge, Router |
|
Operating
system:ASUSWRT |
|
Free
OS upgrade:Yes |
|
Firewall:Yes |
|
Maximum
Firewall keyword filter:64 |
|
Maximum
Firewall network service filter:32 |
|
Maximum
Firewall URL filter:64 |
|
Wake
on LAN (WOL):Yes |
|
SSH:Yes |
|
Configuration
backup and restore:Yes |
|
Diagnosis
tools:Yes |
|
Feedback
system:Yes |
|
System
log:Yes |
