All stock codes associated to this product
A15, 8698651011005, 6932849427752, 885397271390

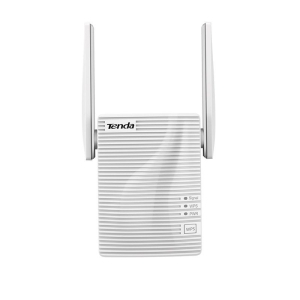

Tenda A15 / Extender / AC750 Dual Band WiFi Repeater
Overview
A15 is an AC750 dual-band WiFi repeater dedicated for two-storey houses,
villas, and multi-room houses with an area over 120 square meters. It offers up
to 300 Mbps data rate on 11n band and 433 Mbps data rate on 11ac band. With two
external omni-directional antennas, A15 can provide larger WiFi coverage, as
well as extreme fast data rate, satisfying applications such as playback of
1080P HD videos, massively multiplayer online games, and high-speed download.
With the upgrade Setup Wizard, it only takes you three steps to configure your
repeater, which is easy to use. A15 also works better with other brands' WiFi
router available on the market. For whole home WiFi coverage, A15 is your best
choice.
Specifications
|
Interface |
1
Megabit LAN Ethernet ports |
|
Antenna |
2*2dBi
Omni-directional antennas |
|
Button |
1
reset button |
|
1
WPS button |
|
Power |
Input100-240V50/60Hz, 0.3A
|
|
Output9V800mA
|
|
Indicator |
1
Signal |
|
1
WPS |
|
1
PWR |
|
Dimension |
80
x 57 x 45mm(3.1 x 2.2 x 1.7 in.) |
|
Wireless
Standards |
IEEE
802.11n/a/ac |
|
IEEE
802.11b/g/n |
|
Frequency |
2.4GHz,
5GHz |
|
Wireless
Speed |
5GHzUp to 433Mbps
|
|
2.4GHzUp to 300Mbps
|
|
Basic
Function |
Hide
SSID |
|
Wireless
Security |
WPA/WPA2-PSK(default) |
|
Rate |
802.11b:
11 Mbps |
|
802.11g:
54 Mbps |
|
802.11n:
300 Mbps |
|
802.11ac433Mbps
|
|
RSSI |
2.4GHz |
|
11b-1M:-97dBm |
|
11g-54M:-76dBm |
|
11n-20M-MCS7:-74dBm |
|
11n-40M-MCS7:-72dBm |
|
5GHz: |
|
11a-6M:-95dBm |
|
11n-20M-MCS7:-74dBm |
|
11n-40M-MCS7:-72dBm |
|
11ac-80M-MCS9:-63dBm |
|
Operating
Mode |
AP
Mode and Repeater Mode |
|
DHCP
Server |
Support |
|
Wireless
security protocol |
Default
encryption mode: Mix WPA-PSK/WPA2-PSK |
|
Blacklist |
|
Channel |
11n20/40MHz by
default |
|
11ac 80MHz by
default |
|
Other |
Firmware
upgrade, Restore factory settings, Login password, and
Reboot |
|
Temperature |
Operating
Temperature: 0 ~ 40 |
|
Storage
Temperature: -40 ~ 70. |
|
Humidity |
Operating
Humidity:10% ~ 90% RH non-condensing |
|
Storage
Humidity: 5% ~ 90%RH non-condensing. |
|
Certification |
FCC,
CE, RoHS, EAC,
IC |
Networking
