All stock codes associated to this product
RE450S, RE450-S

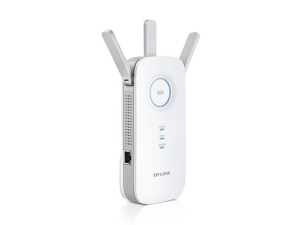

TP-Link RE450 AC1750 Wi-Fi Range Extender
Overview
- Expand Your Wi-Fi Network for Ultimate Performance
- 450Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1750Mbps Wi-Fi
speeds
- Three adjustable external antennas provide optimal Wi-Fi coverage and
reliable connections
- Gigabit Ethernet port acts as a wireless adapter to connect a wired device
to your network at gigabit speed
- Intelligent signal light helps to find the best location for optimal Wi-Fi
coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
Specifications
|
HARDWARE
FEATURES |
|
Plug
Type |
EU,
UK, US |
|
Standards
and Protocols |
IEEE802.11ac,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
Interface |
1
* 10/100/1000M Ethernet Port (RJ45) |
|
Button |
RE
(Range Extender) Button, Reset Button, LED Button, Power
Button |
|
Power
Consumption |
9Wmax
power consumption |
|
Dimensions
( W x D x H ) |
6.4x
3.0 x 2.6 in. (163 x 76.4 x 66.5mm) |
|
Antenna |
3*
external |
|
WIRELESS
FEATURES |
|
Frequency |
2.4GHz
& 5GHz(11ac) |
|
Signal
Rate |
5GHz:Up
to 1300Mbps |
|
2.4GHz:Up
to 450Mpbs |
|
Reception
Sensitivity |
5GHz |
|
11a
6Mbps:-93dBm@10% PER |
|
11a
54Mbps: -76dBm@10% PER |
|
11ac
HT20 mcs8: -68dBm@10% PER |
|
11ac
HT40 mcs9: -64dBm@10% PER |
|
11ac
HT80 mcs9: -61dBm@10% PER |
|
2.4GHz |
|
11g
54M: -77dBm@10% PER |
|
11n
HT20 mcs7: -73dBm@10% PER |
|
11n
HT40 mcs7: -70dBm@10% PER |
|
Wireless
Modes |
Range
Extender |
|
Wireless
Functions |
Wireless
Statistic |
|
Concurrent
Mode boost both 2.4G/5G WiFi band |
|
High
Speed Mode for great speed for HD Gaming and
video |
|
Access
Control |
|
LED
Control |
|
Domain
Login Function |
|
Wireless
Security |
64/128-bit
WEP |
|
WPA-PSK
/ WPA2-PSK |
|
Transmission
Power |
<20dBm(2.4GHz) |
|
<23dBm(5GHz) |
|
OTHERS |
|
Certification |
FCC,
RoHS |
|
Package
Contents |
AC1750
Wi-Fi Range Extender RE450 |
|
RJ-45
Ethernet Cable |
|
Quick
Installation Guide |
|
Box
Dimensions (W X D X H) |
7.9
x 4.9 x 3.4in. (202x 125 x 86mm) |
|
System
Requirements |
Microsoft
Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare,
UNIX or Linux. |
|
Environment |
Operating
Temperature: 0C~30C (32F~86F) |
|
Storage
Temperature: -40C~70C (-40F~158F) |
|
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90%
non-condensing |
