All stock codes associated to this product
E3SUPS20KHB, 4252562, 731304340782

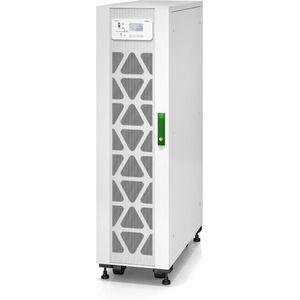

APC Easy UPS 3S 20 kVA 400 V 3:3 UPS for internal
batteries
Overview
Easy UPS 3S 20 kVA 400 V 3:3 UPS for internal
batteries
High-efficiency 3-phase UPS that features advanced product features,
competitive specifications, and robust electrical design, making business
continuity easy in the data center or electrical room. This is an exceptionally
easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and
medium businesses. Includes dust filter and conformance-coated boards for harsh
environments. This UPS is for internal batteries, but is supplied without
batteries, so you can easily customize the battery runtime. For battery runtime
details, see the runtime charts published under the Documents
tab.
Includes: Dust filter, Installation guide
|
Protection |
|
|
Replaceable
dust filters |
protect
the UPS in harsh environments. |
|
Wide
Input Voltage Window |
Saves
your battery power for when you really need it - during power
cuts! |
|
Optional
SNMP Card |
When
you purchase the SNMP card, you can monitor and manage UPS status remotely
through the UPS Web interface or through EcoStruxure IT's cloud-based and
on-premise software suites. Click here for more information
about EcoStruxure IT. |
|
Parallel
capability |
Multiple
units can be placed in parallel to meet power capacity and redundancy
requirements |
|
Convenience |
|
|
Easy
Loop Test |
Verifies
UPS performance before you connect your load, without the need for a load
bank. |
|
Easy
to install fast |
Quickly
roll the compact and lightweight UPS into
position. |
|
ECO
Mode |
Operating
mode that by-passes unused electrical components in good power conditions
to achieve high operating efficiency without sacrificing
protection |
|
Front-access
servicing |
Simplifies
installation and UPS maintenance while minimizing space
requirements. |
|
Intuitive
user interface |
The
intuitive graphical user interface allows for easy system
configuration. |
|
Straightforward
installation |
Including
the input, output, and bypass breakers, as well as the Emergency Power Off
(EPO) switch, simplifies installation planning and speeds up
deployment. |
Specifications
|
Output |
|
|
Max
Configurable Power (Watts) |
20.0kWatts
/ 20.0kVA |
|
Output
Voltage Distortion |
Less
than 3 % |
|
Output
Frequency (sync to mains) |
50
Hz Sync to mains, 60 Hz Sync to mains |
|
Other
Output Voltages |
380 V,
415 V |
|
Topology
|
Double
conversion online |
|
Output
Voltage THD |
<
3% linear load |
|
Output
Voltage Tolerance |
+/-
1.5 % |
|
Input |
|
|
Input
frequency |
45
- 65 Hz |
|
Input
voltage range for main operations |
304
- 477V |
|
Input
Total Harmonic Distortion |
Less
than 3 % for full load |
|
Other
Input Voltages |
380 V,
415 V |
|
Input
Power Factor at Full Load |
0.99 |
|
Batteries
& Runtime |
|
|
Battery
type |
VRLA |
|
Nominal
Battery Voltage |
240
V |
|
Battery
Slots Empty |
3 |
|
Maximum
Available Short Circuit Current |
10kAmps |
|
Communications
& Management |
|
|
Interface
Port(s) |
E3S_Parallel,
E3S_TempSensor |
|
Physical |
|
|
Maximum
Height |
1400MM,
140.0CM |
|
Maximum
Width |
380MM,
38.0CM |
|
Maximum
Depth |
928MM,
92.8CM |
|
Net
Weight |
122.0KG |
|
Shipping
weight |
158.0KG |
|
Shipping
Height |
1640MM,
164.0CM |
|
Shipping
Width |
563MM,
56.3CM |
|
Shipping
Depth |
1014MM,
101.4CM |
|
Color
|
White |
|
Environmental |
|
|
Operating
Temperature |
0
- 40 C |
|
Operating
Relative Humidity |
0
- 95 (Non-condensing) % |
|
Operating
Elevation |
0
- 1015.9meters |
|
Storage
Temperature |
-15
- 40 C |
|
Storage
Relative Humidity |
0
- 95 (Non-condensing) % |
|
Storage
Elevation |
0
- 15240meters |
|
Online
thermal dissipation |
900.0BTU/hr |
|
Protection
Class |
IP20 |
|
Conformance |
|
|
Approvals
|
CE,
EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B,
RCM |
|
Standard
warranty |
1
year on-site repair or replace with factory authorized
Start-Up |
|
Sustainable
Offer Status |
|
|
RoHS
|
Compliant |
