All stock codes associated to this product
SMX3000HVNC, 2454583, UPAPCSMX3000HVNC, 731304292623

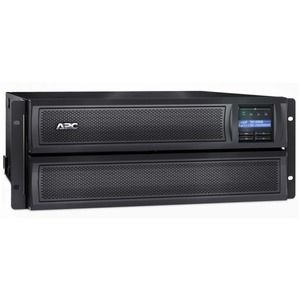

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network
Card
Overview
- Intelligent and efficient network power protection from entry level to
scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches,
hubs and other network devices.
- Includes: CD with software, Rack mounting support rails, Smart UPS
signalling RS-232 cable, Temperature probe, User manual, Web/SNMP management
card
Specifications
|
Output |
|
|
Max
Configurable Power (Watts) |
2.7kWatts
/ 3.0kVA |
|
Output
Voltage Distortion |
Less
than 5 % |
|
Output
Frequency (sync to mains) |
50/60
Hz +/- 3 Hz Sync to mains |
|
Other
Output Voltages |
208 V,
220 V, 240 V |
|
Topology
|
Line
interactive |
|
Waveform
type |
Sine
wave |
|
Transfer
Time |
2-4
ms |
|
Transfer
Time |
6
ms typical : 10 ms maximum |
|
Input |
|
|
Input
frequency |
50/60
Hz +/- 3 Hz Auto-sensing |
|
Input
voltage range for main operations |
140
- 280V |
|
Number
of Power Cords |
1 |
|
Other
Input Voltages |
220 V,
240 V |
|
Transfer
Time |
2-4
ms |
|
Batteries
& Runtime |
|
|
Battery
type |
Lead-acid
battery |
|
Typical
recharge time |
3hour(s) |
|
Replacement
Battery |
APCRBC143 |
|
Expected
Battery Life (years) |
03-May |
|
RBC
Quantity |
1 |
|
Battery
Charge Power (Watts) |
245 Watts |
|
Extendable
Run Time |
1 |
|
Communications
& Management |
|
|
Interface
Port(s) |
RJ-45
Serial, SmartSlot |
|
Pre-Installed
SmartSlot Cards |
AP9631 |
|
Control
panel |
LED
status display with on line : on battery : replace battery and overload
indicators, Multifunction LCD status and control
console |
|
Audible
Alarm |
Alarm
when on battery : distinctive low battery alarm : configurable
delays |
|
Emergency
Power Off (EPO) |
Yes |
|
Surge
Protection and Filtering |
|
|
Surge
energy rating |
645Joules |
|
Filtering
|
Full
time multi-pole noise filtering : 0.3% IEEE surge let-through : zero
clamping response time : meets UL 1449 |
|
Physical |
|
|
Maximum
Height |
432MM,
43.2CM |
|
Maximum
Width |
178MM,
17.8CM |
|
Maximum
Depth |
483MM,
48.3CM |
|
Net
Weight |
38.64KG |
|
Shipping
weight |
47.73KG |
|
Shipping
Height |
330MM,
33.0CM |
|
Shipping
Width |
586MM,
58.6CM |
|
Shipping
Depth |
633MM,
63.3CM |
|
Color
|
Black |
|
Pallet
Dimensions |
31
x 48 x 43.5inches |
|
#
of Layers per Pallet |
4 |
|
#
of Units per Layer per Pallet |
2 |
|
Pallet
Weight |
856.91lbs. |
|
Units
per Pallet |
6 |
|
Environmental |
|
|
Operating
Temperature |
0
- 40 C |
|
Operating
Relative Humidity |
0
- 95 % |
|
Operating
Elevation |
0
- 3048meters |
|
Storage
Temperature |
-15
- 45 C |
|
Storage
Relative Humidity |
0
- 95 % |
|
Storage
Elevation |
0
- 15240meters |
|
Audible
noise at 1 meter from surface of unit |
55.0dBA |
|
Online
thermal dissipation |
184.0BTU/hr |
|
Conformance |
|
|
Approvals
|
C-Tick,
CE, CSA, EAC, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, FCC part
15 class A, GOST, IRAM, UL 1778, VDE |
|
Standard
warranty |
3
years repair or replace (excluding battery) and 2 years for battery,
optional extended warranties available, optional on-site warranties
available |
|
Sustainable
Offer Status |
|
|
RoHS
|
Compliant |
|
Proposition
65 Warning |
Available
in Documentation
tab |
