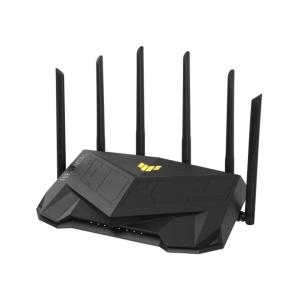

ASUS TUF Gaming AX5400 (TUF-AX5400) TUF Gaming AX5400 Dual

Model Name

TUF-AX5400

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX5400 ultimate AX performance : 574+4804 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 4 (802.11n) : up to 300 Mbps

WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

External antenna x 6

Transmit/Receive

2.4GHz 2x2

5GHz-2 4x4

Processor

1.5 GHz tri-core processor

Memory

256 MB Flash

512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

USB 3.2 Gen 1 x 1

Button

WPS Button, Reset Button, Power Button

LED Indicator

Power x 1

2.4GHz x 1

5GHz x 1

WAN x 1

LAN x 4

Power Supply

AC Input : 100V~240V (50~60Hz)

DC Output : 12 V with max. 2.5 A current

Package content

TUF-AX5400 WiFi 6 Gaming router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card

TUF Gaming AX5400 WiFi 6 router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card

Product Weight (g)

600 g

AiMesh

AiMesh : Yes

Primary AiMesh router : Yes

AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : Yes

Alexa

Support Alexa skil : Yes

IFTTT

Support IFTTT : No

AiProtection

AiProtection : AiProtection Pro

Router Security Assessment : Yes

Malicious site blocking : Yes

Two-Way IPS : Yes

Infected Device Prevention and Blocking ; Yes

Parental Control

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : Yes

Bandwidth Monitor : Yes

Bandwidth limiter : Yes

Maximum Bandwidth limiter rule : 32

Traditional QoS : Yes

Maximum Traditional QoS rule : 32

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Traffic Analyzer : Yes

Traffic analysis period : Daily, Weekly, Monthly

Website history : Yes

Wireless

IPv6 : Yes

MU-MIMO : Yes

Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

UTF-8 SSID : Yes

Guest Network : Yes

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

WPS : Yes

Wi-Fi MAC address filter : Yes

Maximum MAC filters : 64

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : Yes

Universal beamforming : Yes

Explicit beamforming : Yes

IGMP snooping : Yes

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : Yes

WAN Aggregation : Yes

3G/4G LTE dongle : Yes

Android tethering : Yes

Port forwarding : Yes

Maximum port forwarding rule : 64

Port triggering : Yes

Maximum port triggering rule : 32

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

DHCP Server : Yes

IPTV : Yes

LAN Link Aggregation : Yes

Manually assign IP address : Yes

Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : Yes

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : Yes

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

3G/4G LTE dongle : Yes

HDD hibernation : Yes

Safely Remove disk : Yes

AiCloud : Yes

Download master : Yes

AiDisk : Yes

Media Server : Yes

Time Machine : Yes

Samba Server : Yes

FTP Server : Yes

Shared Folder privileges : Yes

Administration

Operating mode : Wireless router mode

Access point mode

Media bridge mode

Repeater mode

AiMesh node mode

Operating system : ASUSWRT

Free OS upgrade : Yes

Firewall : Yes

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes
