All stock codes associated to this product
EPC11CH40031,
Built with Epsons advanced robotics and printing technologies, this compact, integrated disc publisher has all the features you need to burn and print up to 100 (per batch) high-quality customised CDs, DVDs or BDs
unattended and on demand. It is ideal for a wide range of businesses
such as service bureaus, educational institutions, photographers,
software and IT companies, governments, corporations, medical
organisations, etc.
FEATURES &BENEFITS
- Unattended production of CDs and DVDs or BDs, 100 disc (batch) capacity
- AcuGrip technology minimises two-disc feeding
- Highest quality printing with Epson renowned MicroPiezo print head technology
- Six individual, high capacity ink cartridges with low-ink sensors
- Easy maintenance - disk drives and waste ink tanks can be replaced onsite by users
- Label printing up to 65 discs/hour
- Economical to operate and compact rugged construction for top reliability
- Easy-to-use software with label templates
- Free warranty upgrade to On-site warranty in capital cities with product registration
|
|
|
|
|
 |

Compatible with Mac and Windows OS
|
Advanced Robotics
The Discproducer's robotic arm with patented AcuGrip technology
ensures that only one disc is placed in the drive or printer at a time,
eliminating dual feeding that can damage drives and interrupt
unsupervised production runs.
Best-in-class printing
The Epson Discproducer features a built-in Epson inkjet printer with
Epsons patented MicroPiezo technology. Using six colours instead of
the common four, it delivers the highest print quality available in its
class for crisp, clear text and vibrant graphics at up to 1440 x 1440
dpi resolution. And with just one set of high-capacity ink cartridges,
you can print over 1,000 discs. In addition, ink level status is shown
with LED readout for each colour to prevent printing without ink.

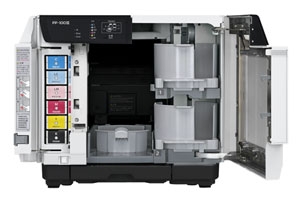

Easy Maintenance with Field Replaceable Components
In addition to all of the advanced features and industry-leading
reliability, Epson has specifically designed the PP-100III so that worn
or damaged disc drives (individually or in pairs) and the waste ink
maintenance tanks can be quickly and easily replaced on site by end
users. This ensures maximum uptime and means it is no longer necessary
to send PP-100III units in for this particular servicing.
Best-in-class Cost Per Disc
Thanks to Epson's individual inks system, the cost of each produced
media is low as you only need to replace the colour used and, depending
on the print image, you can produce over 1,000 discs from one set of
cartridges. And when a cartridge becomes empty, the Discproducer
automatically stops printing until its replaced to avoid miss-prints.
The Epson Discproducer also provides you with more affordable disc
duplication and printing. Cost per Disc calculations are based on
Epson's Internal Testing with a set of new ink cartridges. For further
details please see Disc yields page.
Disc yields page....More.
Software Simple As 1, 2, 3
Epsons comprehensive Total Disc Maker software lets you quickly
compile your data, create labels and configure the production process
all in one easy-to-use application. It also includes a program that
displays the status of all jobs and devices. The bridge tool
(downloadable via the website) allows you to communicate with other
applications.
Backed by Epson
With Epsons expertise in precision robotics and advanced printing
solutions, you can be sure that Discproducer comes with the quality and
reliability that Epson is known for. And it is backed with Epsons
leading service programs and one year RTB warranty. Free upgrade to
On-site warranty (capital cites only) is available on product
registration. For further details see Epson Warranty.
TECHNOLOGY
AcuGrip Built to Perform
Unlike other disc publishers, the Epson Discproducer features
patented AcuGrip picking technology which ensures that only one disc is
placed in the drive or printer even if two are stuck together. The arm
has a guide that places it in the centre of the disc. Then three
independently powered fingers extend to separate the top disc from the
remaining discs. Finally the peel off lever (or kicker lever) lifts the
top disc for transportation. If more than one disc is lifted, they will
be put in the reject stacker or the system will indicate an error has
occurred. This technology not only increases the life of the product,
but helps protect against the interruption of unattended production runs
due to mechanical blockage.
Micro Piezo Print Head
MicroPiezo print heads are at the heart of every Epson ink jet
printer. These print heads spray ink through microscopic nozzles, or
holes on the print head. Each of these nozzles has tiny, piezo electric
elements, which vibrate tens of thousands of times per second, allowing
the nozzle to fire ink droplets onto the disc at extremely rapid rates.
No heat is involved in the printing. This ensures greater accuracy when
firing ink droplets precisely onto the disc. And, it gives the printer
greater control over ink droplet size. MicroPiezo technology ensures
uniform, stable ink droplets with virtually no satellites or misting all
of which means you get the high quality results youd expect from
Epson.
Building on the Strength and Experience of Epson Robotics
When you build industrial robots, you learn about quality,
reliability and precision engineering. And Epson is a world-leader in
the design, development and manufacture of such robots as for medical
technology and airbag testing. Thats why our other products are so
reliable because they are built on the platform of knowledge and
experience gained from the robotics environment. The Epson Discproducer
is a perfect example. Its compact design, coupled with its dust-proof
body and a minimum of moving parts, delivers precision performance,
superb reliability and amazingly low running costs.
SOFTWARE
Discproducer comes with all the software you need to get the job
done. Discproducers easy-to-use Total Disc Maker Software includes disc
editing, label editing and publishing functions. Simply select your
data, design the label, configure the run, click Publish and you are
done. Best of all, you dont have to be an expert to use the software.
All it takes is a few easy steps.

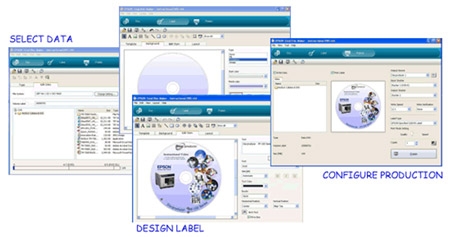

1. Select Data
Epsons Disc Editing Software is easy to use. Simply select the media format, then drag, drop, and burn.
2. Design the Label
Use your own design or start with one of the many pre-defined templates
and images provided. Then use the label editing tools to customize the
label to your satisfaction. The preview display allows you to check your
composition and save your work for easy retrieval in the future.
3. Configure Production
There are just a few steps before youre ready to publish. Epsons
software leads you through the process, helping you to set the
parameters such as the number of CDs, DVDs and BDs to be burned, the
burning and print speed, the input/output trays for discs and print
resolution. Then simply click Publish and your production run is
underway.
4. Monitor Production
Epsons Total Disc Monitor Software keeps you informed about the status
of all the important functions of the Discproducer as well as any
current and pending jobs.
