All stock codes associated to this product
BP48VP2U02, CP89054, 3981774, CPBP48VP2U02, 4712856277425

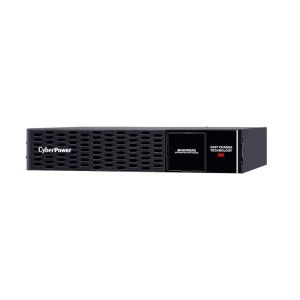

CyberPower BP48VP2U02 External Battery Pack - 9000 mAh - 48 V DC - Sealed Lead Acid (SLA) - User Replaceable - Hot Swappable - 6 Hour Recharge Time
The CyberPower BP48VP2U02 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR2000RTXL2U, PR2200LCDRTXL2U, PR2200RTXL2U, PR3000LCDRTXL2U, PR3000RTXL2U, OR1500LCDRTXL2U, and OR2200LCDRTXL2U.
This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.
With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U02.
Miscellaneous
| Additional Information | - Battery Quantity: 8
- Replacement Battery Cartridge Quantity: 2
- Circuit Breaker: 70 A
- Input Frequency Range: 50 Hz - 60 Hz
- Input Plug Type: IEC-320 C14
- Input Voltage Range: 100 VAC - 240 VAC
- Nominal Input Voltage: 120 VAC
- Operating Elevation: 0 - 10000 ft (0 - 3048 m)
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Operating Temperature: 32 - 104 °F (0 - 40 °C)
- Storage Elevation: 0 - 50000 ft (0 - 15239 m)
- Storage Relative Humidity: 0 - 95% (non-condensing)
- Storage Temperature: 5 - 113 °F (-15 - 45 °C)
|
| Compatibility | CyberPower UPS Models:
- PR1000LCDRTXL2UA
- PR1500LCDRTXL2U
- PR1500RTXL2U
- PR2000RTXL2U
- PR2200LCDRTXL2U
- PR2200RTXL2U
- PR3000LCDRTXL2U
- PR3000RTXL2U
- OR1500LCDRTXL2U
- OR2200LCDRTXL2U
|
| Environmentally Friendly | Yes |
Technical Information
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Capacity | 9000 mAh |
| Hot Swappable | Yes |
| Output Voltage | 48 V DC |
| Maximum Battery Recharge Time | 6 Hour |
| Battery Characteristics | User Replaceable |
General Information
| Product Type | External Battery Pack |
| Manufacturer Part Number | BP48VP2U02 |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | BP48VP2U02 |
| Product Name | External Battery Pack |
| Brand Name | CyberPower |
| Product Condition | New |
Physical Characteristics
| Weight (Approximate) | 30.03 kg |
| Colour | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 434.3 mm |
| Depth | 500.4 mm |
| Shipping Height | 266.70 mm |
| Shipping Width | 558.80 mm |
| Shipping Depth | 622.30 mm |
