All stock codes associated to this product
H500-WGNN-S00, H500WGNNS00, 4719512124192

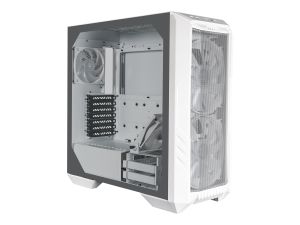

Coolermaster HAF 500 Homecoming Classic Mid-Tower Case -
White
Overview
- Mesh Front Panel
- Dual 200mm ARGB Fans
- Rotatable GPU Fan
- USB 3.2 Gen 2 Type C Support
- Screwless & Tool-Free TG Side Panel Design
- Removable Top Panel
- Versatile Cooling Options
Specifications
|
EXTERIOR
COLOR |
WHITE |
|
MATERIALS -
OUTLOOK |
STEEL, MESH,
PLASTIC |
|
MATERIALS - SIDE
PANEL |
TEMPERED GLASS,
STEEL |
|
DIMENSIONS (L X W X
H) |
516 X 224 X 510MM
(INCL. PROTRUSIONS) |
|
MOTHERBOARD
SUPPORT |
ITX, MICRO ATX, ATX,
SSI CEB, E-ATX*, (*UP TO 12" X 14.1", MAY IMPACT CABLE MANAGEMENT AND CASE
FEATURES, REMOVE CABLE COVER AND GPU FAN BRACKET
FEATURES) |
|
EXPANSION
SLOTS |
7 |
|
5.25" DRIVE
BAYS |
N/A |
|
2.5" / 3.5" DRIVE
BAYS (COMBO) |
2 |
|
2.5" DRIVE
BAYS |
2 |
|
I/O
PANEL |
2X USB 3.2 GEN 1
(FORMERLY USB 3.0), 1X USB 3.2 GEN 2 TYPE-C, 1X SINGLE AUDIO JACK, 1X
RESET/ARGB BUTTON |
|
ARGB
CONTROLLER |
ARGB
HUB |
|
PRE-INSTALLED FANS -
FRONT |
2X 200MM ARGB
FAN |
|
PRE-INSTALLED FANS -
REAR |
1X 120MM SICKLEFLOW PWM
ARGB |
|
PRE-INSTALLED FANS -
TOP ON HDD CAGE |
1X 120MM SICKLEFLOW PWM
(GPU FAN) |
|
FAN SUPPORT -
TOP |
3X 120MM, 2X 140MM, 2X
200MM |
|
FAN SUPPORT -
FRONT |
3X 120MM, 2X 140MM, 2X
200MM, *200MM MOUNTING HOLE SPACING 154 X 154 W/ UP TO 30MM
THICKNESS |
|
FAN SUPPORT -
REAR |
1X
120MM |
|
FAN SUPPORT - TOP ON
HDD CAGE |
1X
120MM |
|
RADIATOR SUPPORT -
TOP |
120MM, 140MM, 240MM,
280MM, 360MM |
|
RADIATOR SUPPORT -
FRONT |
120MM, 140MM, 200MM,
240MM, 280MM, 360MM |
|
RADIATOR SUPPORT -
REAR |
120MM |
|
CLEARANCE - CPU
COOLER |
167MM/6.5" |
|
CLEARANCE -
PSU |
180MM/7.1" |
|
CLEARANCE -
GFX |
410MM/16.1" |
|
CABLE ROUTING -
BEHIND MOTHERBOARD TRAY |
30MM |
|
DUST
FILTERS |
TOP,
BOTTOM |
|
POWER SUPPLY
SUPPORT |
BOTTOM MOUNT,
ATX |
|
WARRANTY |
2
YEARS |
|
SERIES |
HAF
SERIES |
|
SIZE |
MID
TOWER |
