All stock codes associated to this product
4090351, 101TUF-BLACK, 101TUFBLACK
Inwin 101 TUF Gaming Mid-Tower Case - Black
Overview
ASUS TUF GAMING Alliance Design
To capture the vibes of the TUF GAMING motherboards, In Win and ASUS have
united to design the 101 TUF GAMING chassis. The exterior screams TUF, as the
rugged steel enclosure is covered with a military design while donning the TUF
GAMING Alliance emblem. Even the tempered glass side panel sports some war
paint!
Battlestation Armed and Ready for Combat
The 101 TUF GAMING hosts a hidden power button, which discretely intermixes
with the unique LED logo. To secure a clean front panel, the front I/O is
positioned at the top, which grants easier access for PCs stored under desks or
tables.
Flash Your Rigs RGB Color Scheme
The 101 TUF GAMING is equipped with an RGB In Win
bezel on the front panel, and also possesses an RGB TUF GAMING Alliance PSU
chamber cover. Customize and sync your rig to your preferred color scheme and
lighting effects!
Enhanced Thermal Solution
The 101 TUF GAMING supports up to six 120mm case fans for excellent cooling
performance, and flexible cooling strategies. The 101 TUF GAMING is capable of
supporting multiple liquid cooling radiators (120/240/360mm).
Accelerated Tool-less Design
The 101 TUF boosts a quick-release side panel to quickly swap and arm your
rig with powerful hardware! Simply pull the tabs and lift up! Admire your
battlestation through the TUF tempered glass panel!
Specifications
|
Model |
101
TUF GAMING |
|
Part
Number |
IW-101TUFGAMING |
|
Color |
Black |
|
Case
Type |
Mid
Tower |
|
Material |
SECC,
ABS, PC, Tempered Glass |
|
M/B
Compatibility |
12"
x 10.5 ATX, Micro-ATX, Mini-ITX |
|
Expansion
Slots |
PCI-E
x 7 |
|
Maximum
Compatibility |
VGA
Card Length : 421mm (Maximum) |
|
VGA
Card Length : 305mm (With Side Radiator) |
|
CPU
Heatsink Height : 160mm |
|
Front
Ports |
2
x USB 3.0 |
|
HD
Audio |
|
Internal
Drive Bays |
2
x 3.5" |
|
2
x 2.5" |
|
(or
4 x 2.5 ") |
|
Thermal
Solution Compatibility |
1
x 120mm Rear Fan / 120 mm Radiator |
|
2
x 120mm Side Fan / 240mm Radiator |
|
3
x 120mm Bottom Fan / 360mm Radiator |
|
Power
Supply Compatibility |
PSII
: ATX12V |
|
-
Length up to 200mm |
|
Product
Dimension |
425
x 210 x 473 mm |
|
(H
x W x D) |
16.7"
x 8.3" x 18.6" |
|

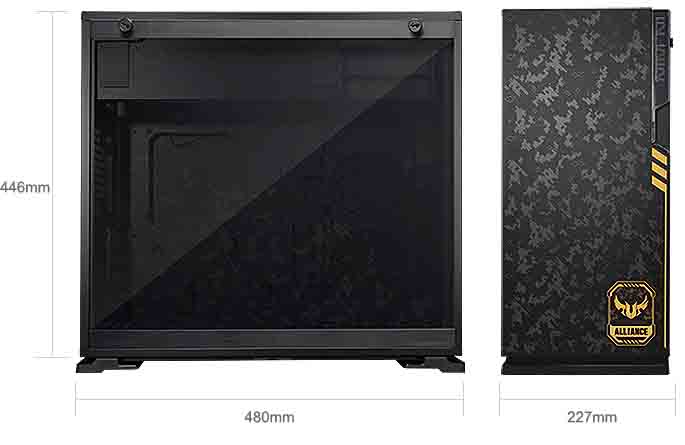

Product
Dimension |
446
x 227 x 480 mm |
|
(H
x W x D) |
17.5"
x 8.9" x 18.9" |
|
with
screw & handle height |
|
|
Package
Dimension |
532
x 282 x 506mm |
|
(H
x W x D) |
20.9"
x 11.1" x 19.9" |
|
Net
Weight |
7.85kg
/ 17.4lb |
|
Gross
Weight |
9.15kg
/ 20.2lb |
