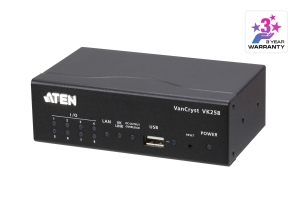

ATEN VK258 8-Channel Digital I/O Expansion Box

IMG 1 of 1
Our Price:
$870.65
RRP:
$929.01
You Save:
$58.36
or quickly purchase this product
Backorder
Part Number:
520549
(?) Brand:
ATEN
Manuf No:
VK258-AT
VK258AT
Shipping Weight:
0.46 KG (Includes product packaging)
Estimate Shipping
Date Added:
7/11/2022
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VK258-AT, VK258AT

Aten VK258 8-Channel Digital I/O Expansion Box



Overview

The VK258 8-Channel Digital I/O Expansion Box provides an additional eight channels of digital input/output for a flexible expansion of the ATEN Control System. This allows users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of the Ethernet-based connection, the expansion box easily connects to the ATEN Controller via a LAN connection from different locations across a network.

  • Provides 8 Digital I/O channels to expand the ATEN Control System
  • Up to eight VK258 expansion boxes can be added to a single ATEN Controller
  • Flexible Deployment connects to an ATEN Controller via an Ethernet connection
  • ID Switch pairs the VK258 with a controller to instantly configure the network settings
  • One DC output allows you to power I/O or other low-voltage devices that require an extra power supply
  • Supports Power over Ethernet (PoE) or DC power supply
  • Firmware upgradable through USB, firmware upgrade tool, or web interface

Specifications

Interfaces

I/O

8 x Programmable Digital Input / Output Channel

(8 x 2-Pole Terminal Block Connector)

Digital Input:

VDC Mode

Input Voltage Range: 0 to 24 VDC

Programmable Range: 1 to 24 VDC

Dry Contact Mode

Pull-up 2k ohms to +12 VDC

Digital Output:

300 mA sink from 24 VDC

Ethernet

 1 x RJ-45 Female, 10/100Base-T

 Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

 DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:

IP: 192.168.0.60

Subnet Mask: 255.255.255.0

Switches

Controller ID

1 x 16-segment Switch

Expander ID

1 x 8-segment Switch

Reset Button

1 x Semi-recessed Pushbutton

USB

1 x USB Type A (Firmware upgrade only)

Power Consumption

DC5V:2.2W:36BTU

POE:2.75W:39BTU

Power

Output

12 VDC, 300 mA

Environmental

Operating Temperature

0  50C

Storage Temperature

20  60C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.46 kg ( 1.01 lb )

Dimensions (L x W x H)

13.00 x 7.58 x 4.20 cm

(5.12 x 2.98 x 1.65 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base
