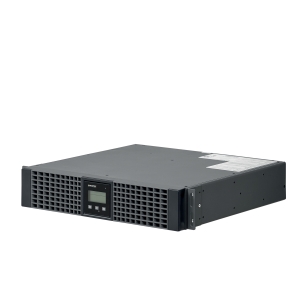

Socomec NETYS RT NRT2-U1700 uninterruptible power supply (UPS)

Power
Output frequency	50/60 Hz
Output power capacity	1.7 kVA
Output power	1350 W
Input operation voltage (min)	175 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	93%
Emergency Power Off (EPO)	Yes
Output power factor	0.9
Input power factor	0.99
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	45/66 Hz
Performance
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
Waveform	Sine
Noise level	50 dB
LED indicators	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
UPS topology	Double-conversion (Online)
Output power capacity	1.7 kVA
Number of output phases	1
Number of input phases	1
Output power	1350 W
Input operation voltage (min)	175 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	93%
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output power factor	0.9
Input power factor	0.99
Noise level	50 dB
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	45/66 Hz
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Serial ports quantity	1
RS-232 ports	1
Modem (RJ-11) ports	1
USB port type	USB Type-B
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at full load	10.4 min
Battery voltage	48 V
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount
Product colour	Black, Grey
Safety	IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
International Protection (IP) code	IP20
Certification	CE, RCM (E2376)
Cooling type	Active
LED indicators	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-15 - 50  Â°C
Operating relative humidity (H-H)	5 - 95%
Technical details
Output frequency	50/60 Hz
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Width	89 mm
Depth	430 mm
Height	440 mm
Weight	18 kg
Packaging data
Manual	Yes
Certificates
Safety	IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Certification	CE, RCM (E2376)
Packaging content
Manual	Yes

---

The solution for - Switching - Storage - Servers and networking devices - VoIP communication systems - Structured cabling systems - Control systems - Video surveillance systems
Advantages
High protection and availability - Online double conversion technology with sinusoidal waveform. - Permanent regulation of output voltage and frequency. - Wide tolerance of the input voltage.
Simple to install - No configuration necessary on first startup. - Conversion mode for installation either in tower mode or inside standard 19" rack cabinets. - IEC input and output connections (1100‑3300 VA) or terminal input and output connections with built‑in magnetothermal input switch (5000‑11000 VA). - Compact footprint.
Easy to use - Clear and uncluttered SOCOMEC LCD interface. - Wide range of communication protocols for integration into LAN networks or Building Management Systems (BMS). - Load segmentation function to prioritize loads and manage critical situations. - EPO (Emergency Power Off) emergency stop. - Management of power supply and local / remote shutdown of the applications.
Meets practical needs - Modular battery extension (EBM) to meet all back‑up time requirements, even after installation. - 1+1 parallel redundant configuration (5000‑11000 VA).
