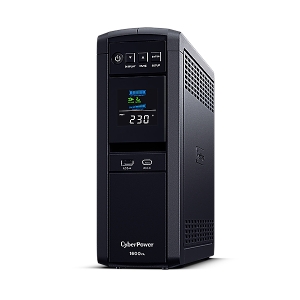

CyberPower CP1600EPFCLCD uninterruptible power supply (UPS) Line-Interactive

Power
Output frequency	50/60 Hz
Output power capacity	1.6 kVA
Output power	1000 W
Input operation voltage (min)	169 V
Input operation voltage (max)	271 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	Type F
Power plug	C14 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type A/USB Type-C
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
LED indicators	Operation
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.6 kVA
Output power	1000 W
Input operation voltage (min)	169 V
Input operation voltage (max)	271 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	405 J
Maximum current	10 A
Surge protection	Yes
Waveform	Pure sine
Power protection features	Overload
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Power source type	AC
Detachable power cord	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	9.7 min
Typical backup time at full load	2.6 min
Replacement battery cartridge	RBP0142
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Cable length	1.83 m
LED indicators	Operation
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-15 - 45  Â°C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Harmonized System (HS) code	8504408590
Compliance certificates	CE, RoHS
Weight & dimensions
Width	100 mm
Depth	355 mm
Height	280 mm
Weight	11 kg
Package width	195 mm
Package depth	466 mm
Package height	370 mm
Package weight	13 kg
Packaging data
Package width	195 mm
Package depth	466 mm
Package height	370 mm
Package weight	13 kg
Logistics data
Harmonized System (HS) code	8504408590

---

CyberPower CP1600EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.
