All stock codes associated to this product
5P850IRAUG2, 5P850iRAUG2, PW92011, 6606395
Secure, smart, and integrated
The Eaton 5P Gen 2 UPS together with thecybersecuredgigabit network card (included in the Netpack versions), meet stringent cybersecurity standards.
Remote managementfeatures offer secure UPS configuration and firmware updates, while the Brightlayer Software Suite provides seamless integration with virtualization environments and cloud services, ensuring continuous service and integrity.
Power and efficiency in a compact design
Enhance your operations with the Eaton 5P Gen 2 UPS, delivering up to 1350 Watts-22% more powerthan its predecessor and 35% above competitors-in a compact 1U form factor.
It ensures stable, high-quality output for sensitive equipment and increased efficiency,reducing energy consumption and costs
Intelligent load segment controlprioritises critical devicesand optimises battery runtime.
Optimized battery management, easy maintenance, total flexibility
Benefit from a prolonged battery life (up to 50%) andmachine learning predictivemaintenance with Eaton's ABM+ technology.
User hot-swappable batteries and intuitive battery replacement wizard through graphical LCD display.
Whether with the 1U rack format or a compact tower option, the Eaton 5P Gen 2UPS fits to your space requirements, ensuring compatibility for various setups.
- Experience higher efficiency with lower energy cost
- 850 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 680 W load capacity
| Display &Graphics |
| Display | LCD |
| Battery Information |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Interfaces/Ports |
| USB | Yes |
| Number of USB Ports | 1 |
| Serial Port | Yes |
| Management |
| Network Management | Relay-MS Card |
| RS-232 |
| INDGW-M2 Card |
| Miscellaneous |
| Certifications &Standards | - IEC/EN 62040-1
- UL1778
- CSA22.2
- IEC/EN 62040-2
- IEC / EN 62040-3
- FCC Class B
- CISPR 32 Class B
- CE
- CB report (TUV)
- cTUVus
- UKCA
- Ukr
- Cm
|
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
| Battery Directive |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Environmental Profile (PEP) ecopassport |
| Physical Characteristics |
| Weight (Approximate) | 13.70 kg |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 438 mm |
| Depth | 509 mm |
| General Information |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | 5P850IRAUG2 |
| Manufacturer Website Address | https://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |

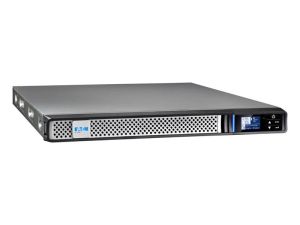

| Product Name | 5P Gen2 850VA Rack-mountable UPS |
| Product Series | 5P Gen2 |
| Brand Name | Eaton |
| Technical Information |
| Application/Usage | Network |
| IT |
| Server |
| Storage |
| Plug/Connector Type | IEC 60320 C14 (10A) |
| Receptacle Type | IEC 60320 C13 (10A) |
| Receptacle Detail | 4 x IEC 60320 C13 (10A) |
| Power Description |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 200 V AC |
| 208 V AC |
| 220 V AC |
| 230 V AC |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 150 V AC - 294 V AC |
| 160 V AC - 294 V AC |
| Output Frequency | 50 Hz |
| 60 Hz |
| Input Frequency | 56.50 Hz |
| 60 Hz |
| 40 Hz |
| 70 Hz |
| 50 Hz |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 680 W |
