| Scanning |
|---|

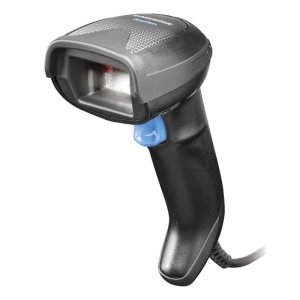

| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Wavelength | 650 nm |
| Scanner type | 1D/2D |
| Motion tolerance (cm/s) | 88.9 |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Performance |
|---|
| Product colour | Black |
| International Protection (IP) code | IP52 |
| Protection features | Shock resistant |
| Built-in display | No |
| Certification | IEC 60825 Class 2 |
| Image formats supported | BMP, JPEG |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design |
|---|
| Product colour | Black |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP52 |
| Protection features | Shock resistant |
| Certification | IEC 60825 Class 2 |
| Power |
|---|
| Power source type | DC |
| Input voltage | 4.5 - 14 V |
| Power consumption | 300 mA |
| Weight & dimensions |
|---|
| Width | 68 mm |
| Depth | 109 mm |
| Height | 166 mm |
| Weight | 161 g |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Technical details |
|---|
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code | 84716070 |
