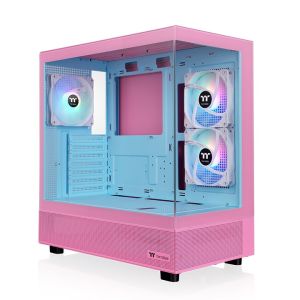

Thermaltake Thermaltake View 270 PLUS TG ARGB Mid Tower Case Bubble Pink Edition

IMG 1 of 6
Our Price:
$128.80
RRP:
$139.00
You Save:
$10.20
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
552761
(?) Brand:
Thermaltake Web Site
Manuf No:
CA-1Y7-00MAWN-00
CA1Y700MAWN00
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CA-1Y7-00MAWN-00, CA1Y700MAWN00
Thermaltake View 270 PLUS TG ARGB Mid Tower Case Bubble Pink Edition Built for amazing viewing, the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed.
View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis

Built for amazing viewing, the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis.

  • The image is for reference only.
Tempered Glass Front and Left Panels

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

  • The image is for reference only.
Supports up to a 360mm Radiator on the Top

Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis.

  • The image is for reference only.
Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the front and the motherboard side. Its fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Built-in PSU Cover

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

Opportunities For High-End Expansion
The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to nine 120mm fans can be installed. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!
Dimensions
Fan Capacity

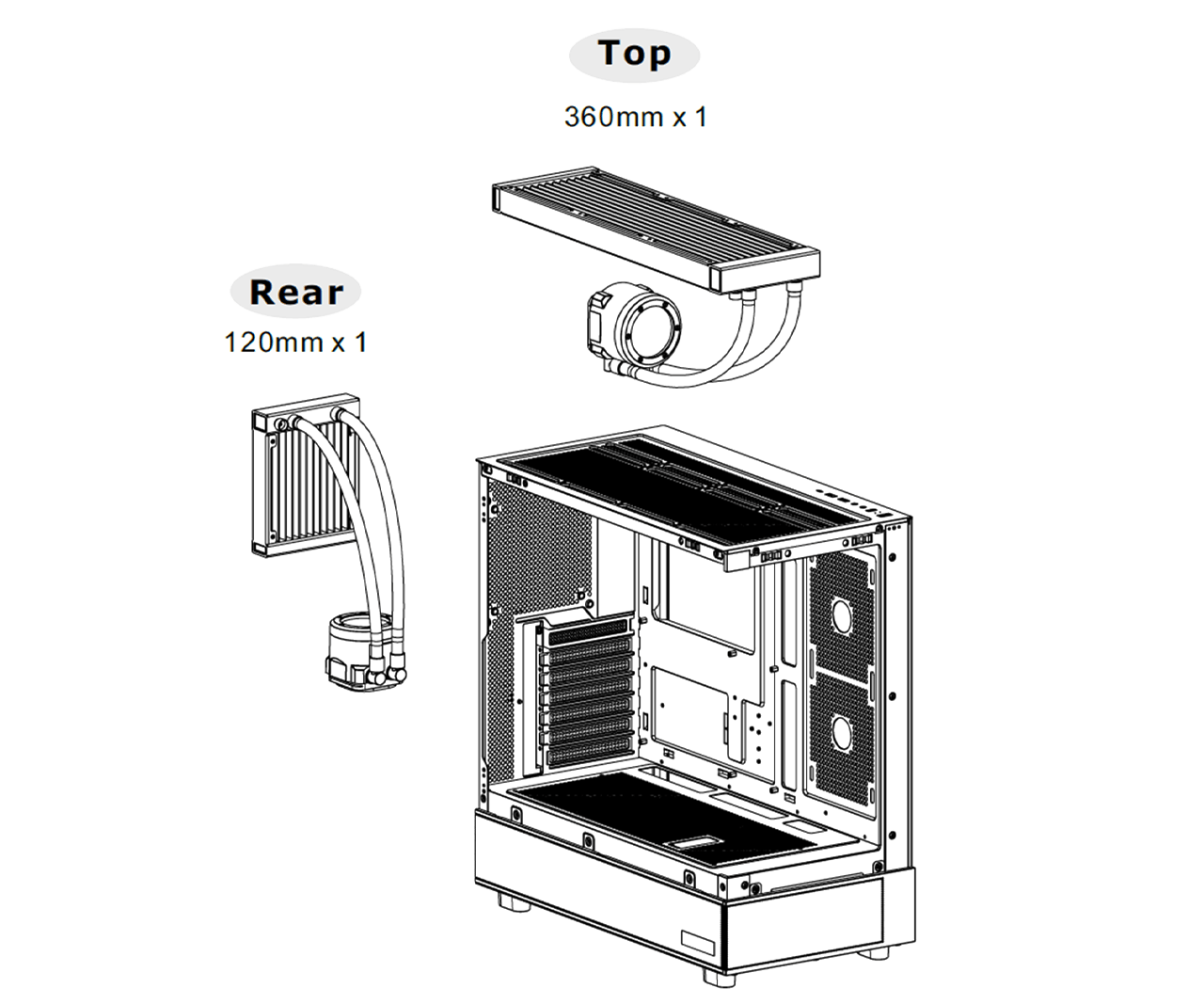

Radiator Capacity

CPU Cooler

Max height 180mm

Motherboard

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)

PSU

Max length
220mm (with HDD Cage)

VGA

Length limitation
420mm

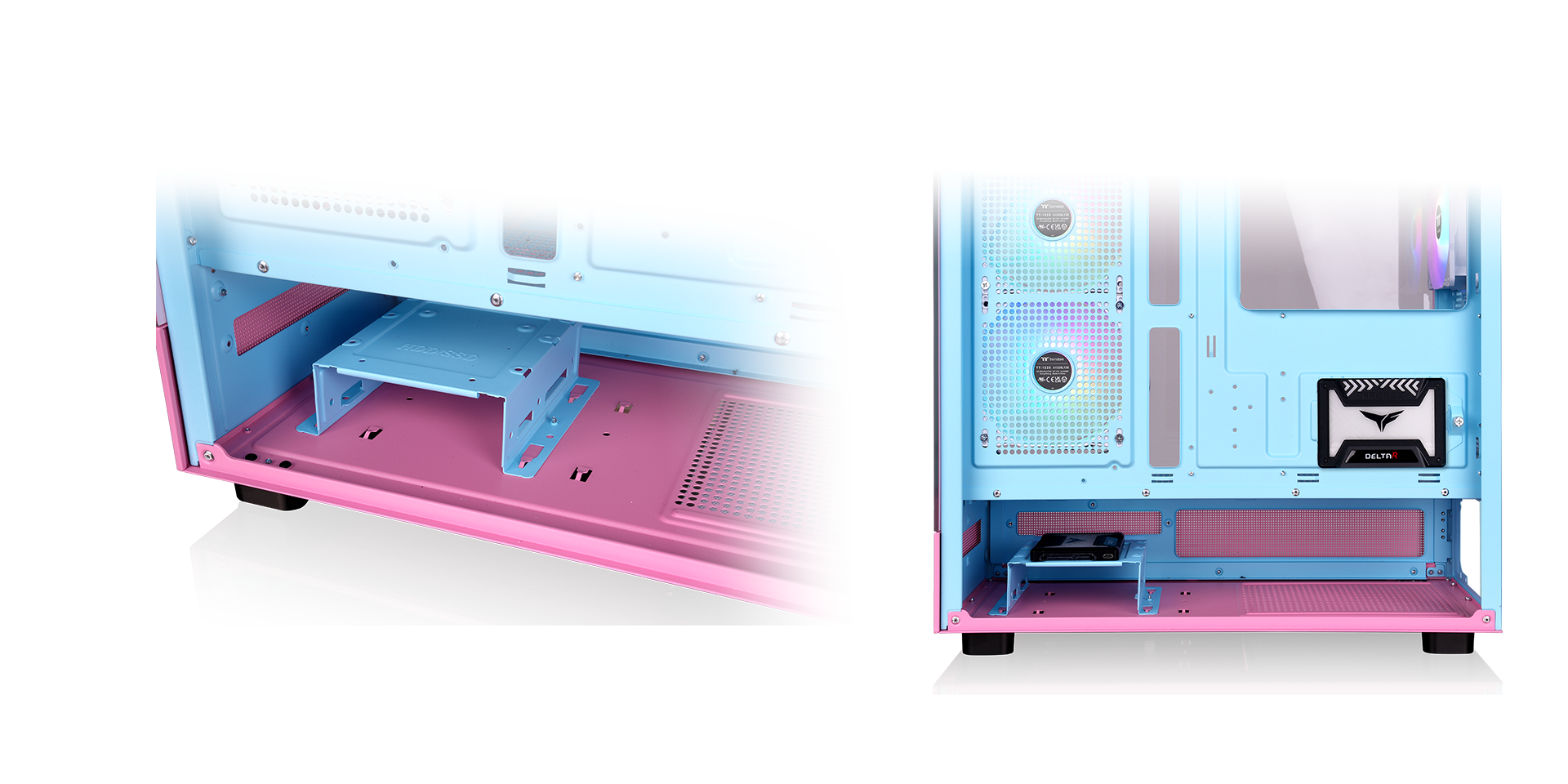

How Much Storage Is Totally Up To You
For storage compatibility, the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis gives maximum support of up to two 2.5 SSDs or two 3.5 HDDs in total.
Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.

All-in-One Compatibility List
All-in-One Compatibility List
120 Series240 Series360 Series140 Series280 Series420 Series
Top---
Rear-----
Fan Compatibility List
Fan Compatibility List
120mm140mm
Top32
Right(M/B Side)2-
Rear11
Power Cover3-

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

  • ASUS Aura Sync Logo

    Aura Addressable Header

    ASUS
  • GIGABYTE RGB Fusion Logo

    Digital Pin Header

    GIGABYTE
  • MSI Mystic Light Sync Logo

    JRAINBOW Header

    MSI
  • ASRock Polychrome Sync Logo

    Addressable RGB LED Header

    ASRock
CategoryCaution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
P/NCA-1Y7-00MAWN-00
SeriesView
CASE TYPEMid Tower
Dimension (H x W x D)456 x 230 x 454 mm
(18 x 9.1 x 17.9 inch)
NET WEIGHT6.35 kg / 14 lbs.
PANELTempered Glass x 2
ColorBubble Pink
MATERIALSPCC
COOLING SYSTEMRight(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays2 x 3.5, 1 x 2.5 or 2 x 2.5
EXPANSION SLOTS7
MOTHERBOARDS6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 13 (E-ATX)
I/O PortUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (optional)
FAN SUPPORTTop:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm, 1 x 140mm
Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORTTop:
1 x 360mm, 1 x 240mm, 1 x 120mm
Rear:
1 x 120mm
CLEARANCECPU cooler max height:
180mm
VGA max length:
420mm
PSU max length:
220mm
