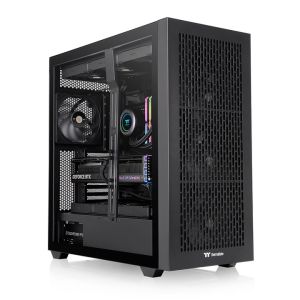

Thermaltake Thermaltake AX500 Tempered Glass Full Tower Case Black Edition

IMG 1 of 8
Our Price:
$297.90
RRP:
$309.00
You Save:
$11.10
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
552762
(?) Brand:
Thermaltake Web Site
Manuf No:
CA-11D-00F1WN-00
CA11D00F1WN00
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CA-11D-00F1WN-00, CA11D00F1WN00
Thermaltake AX500 Tempered Glass Full Tower Case Black Edition

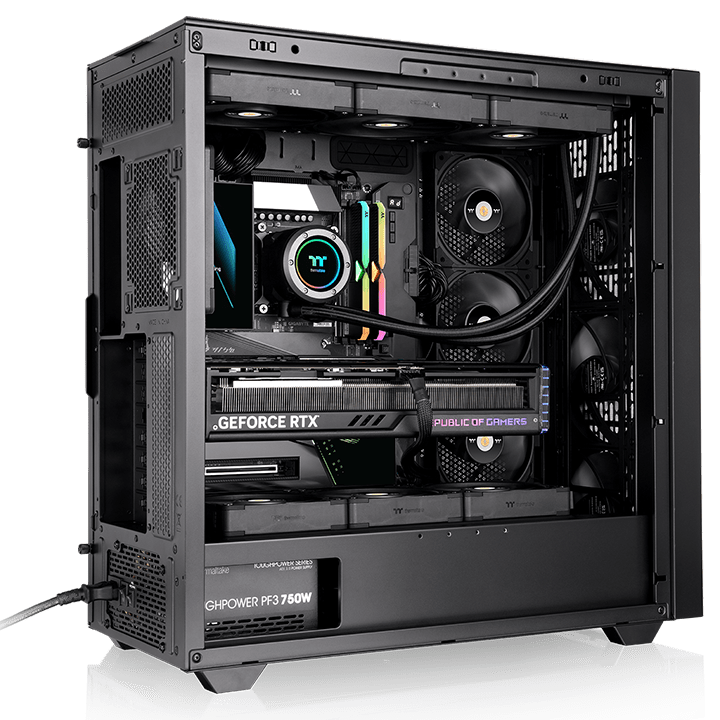

The AX500 Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations or gaming setups.

Motherboard

E-ATX/EEB

Power Supply

ATX PSII

AIO Support

360/420mm

Fan Support

Up to Fourteen
120mm fans

Dimensions (mm)

550*248*548

Clearance (mm)

CPU Cooler: 185
GPU: 460
Power Supply: 200

I/O Ports

1 x USB Type-C
2 x USB 3.0
1 x HD-Audio

Storage

5 x 3.5HDDs
6 x 2.5SSDs

  • The image is for reference only.

Compatible with Hidden-Connector Motherboards


The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

  • The image is for reference only.

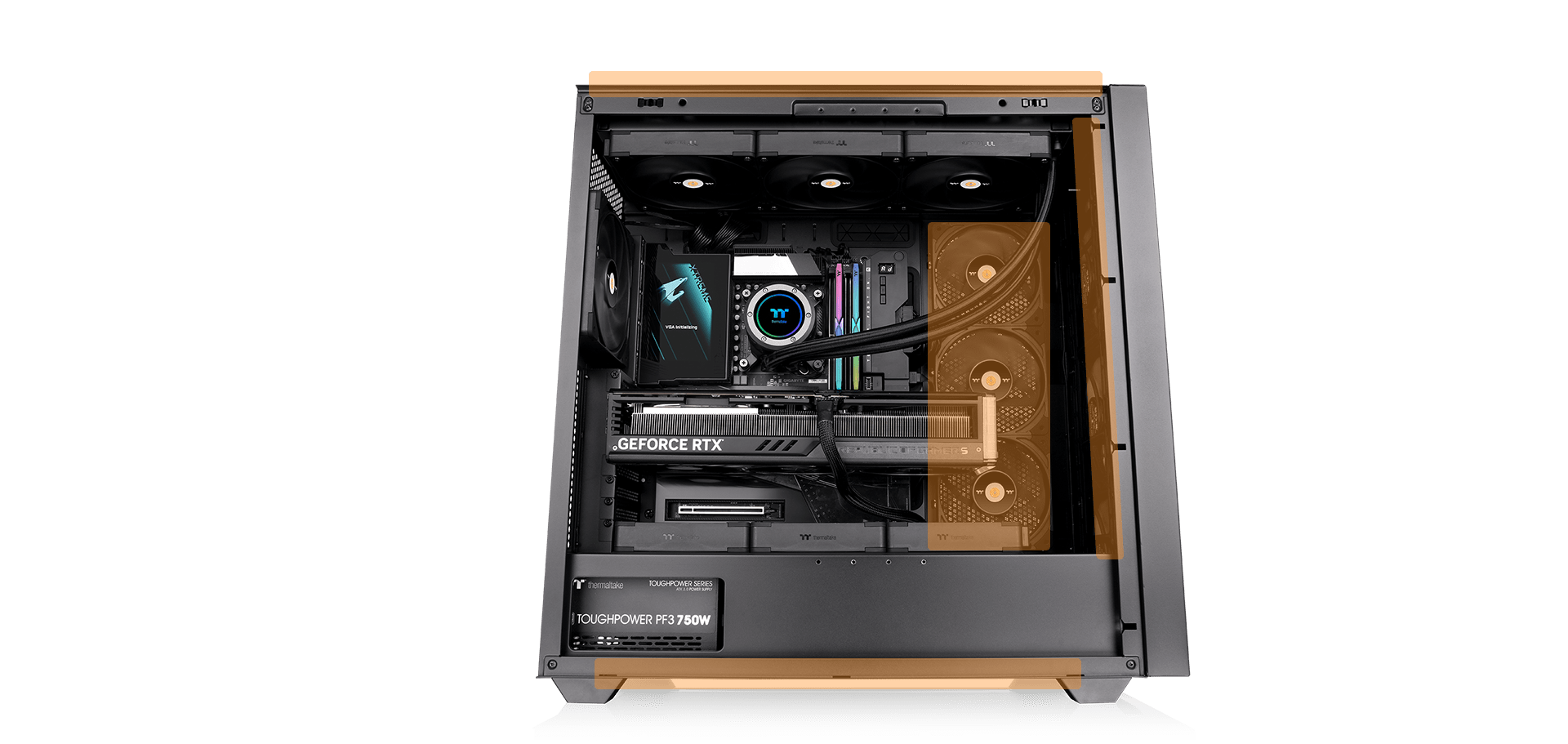

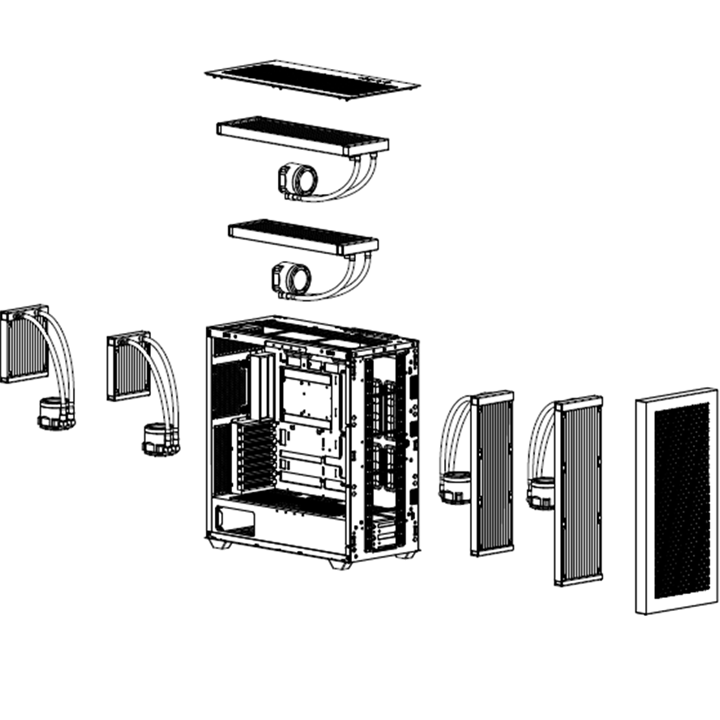

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

*Note: The top fan + radiator thickness limit is 82mm

Learn more about Workstation AIO Cooler

  • The image is for reference only.

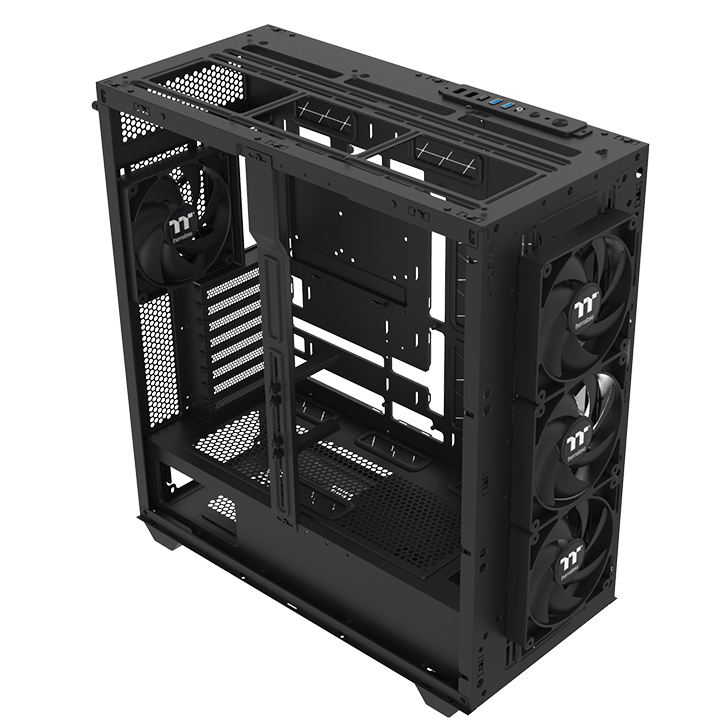

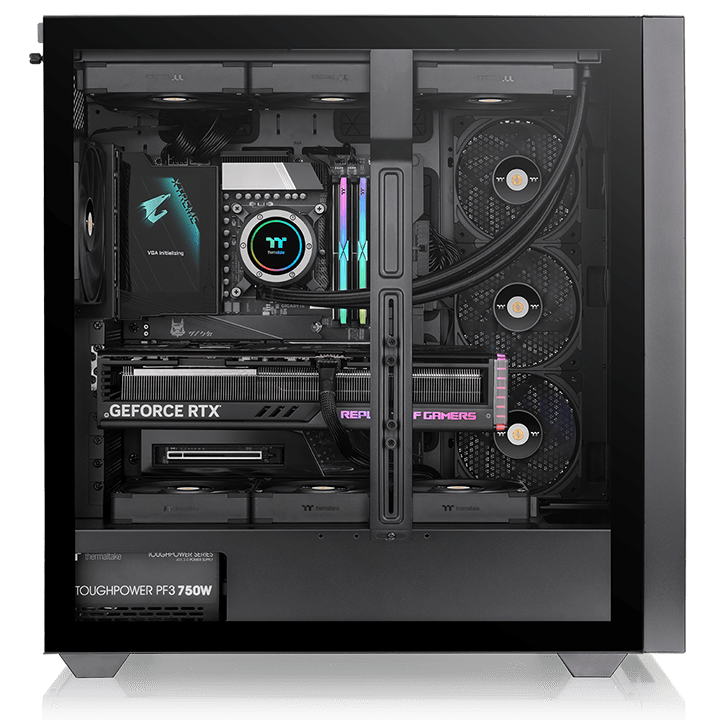

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

  • The image is for reference only.

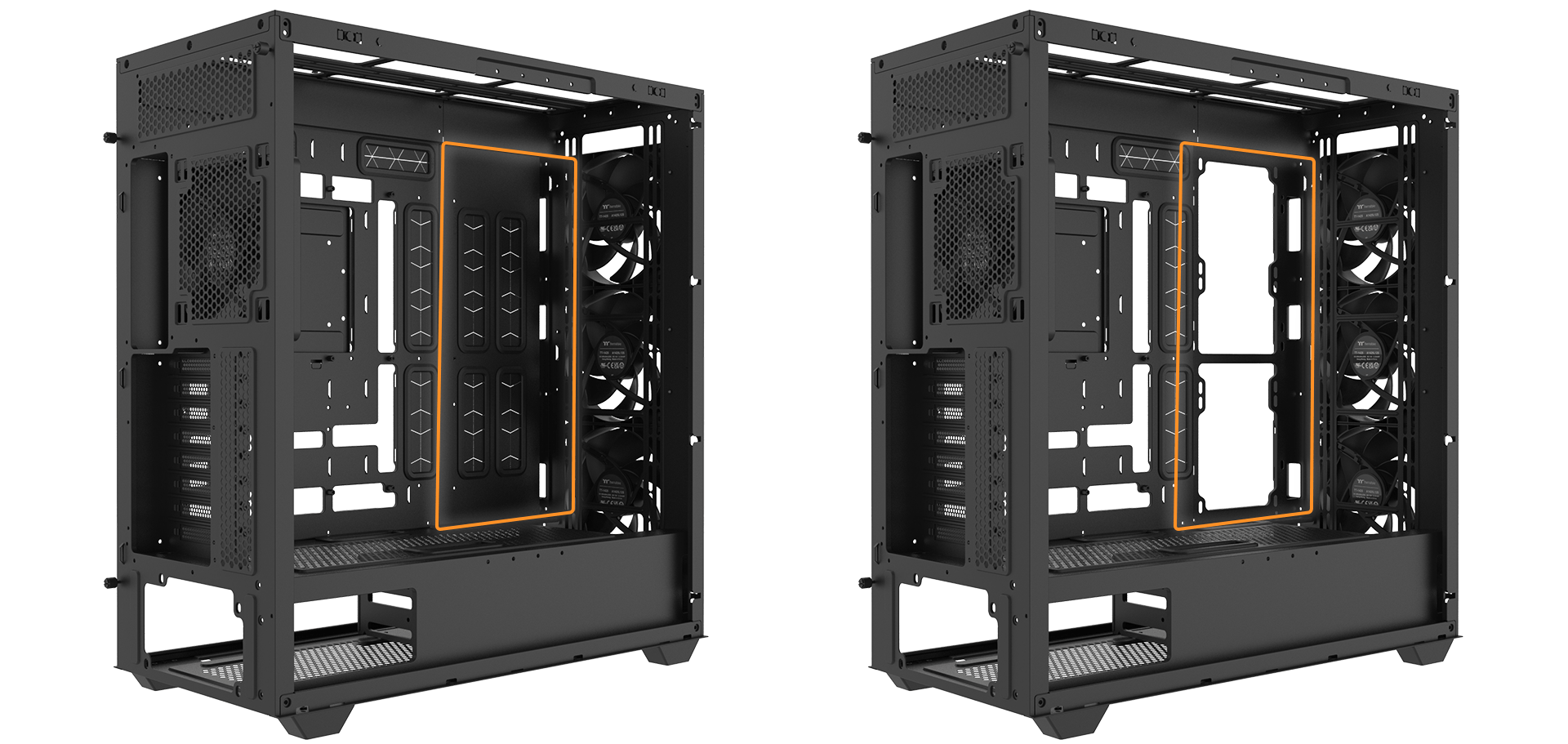

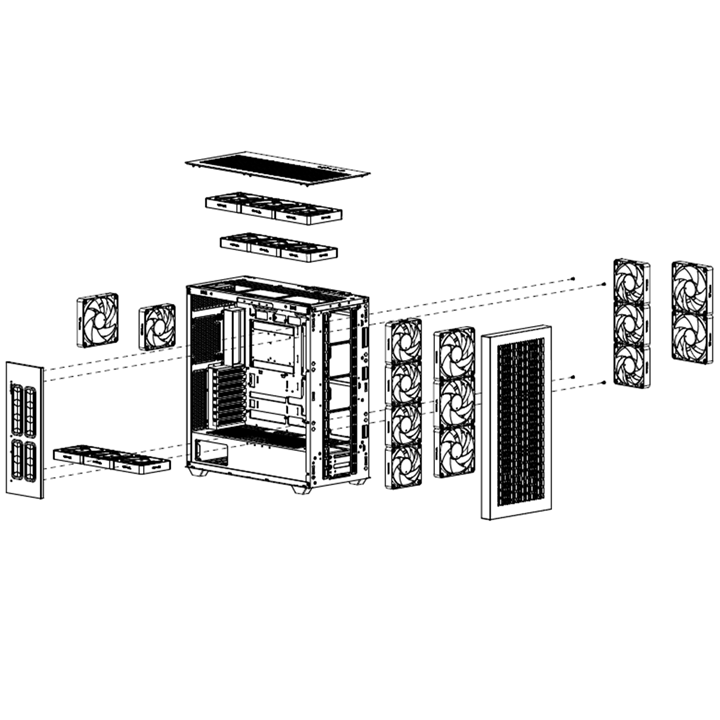

Superior Cooling Support

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

  • The image is for reference only.

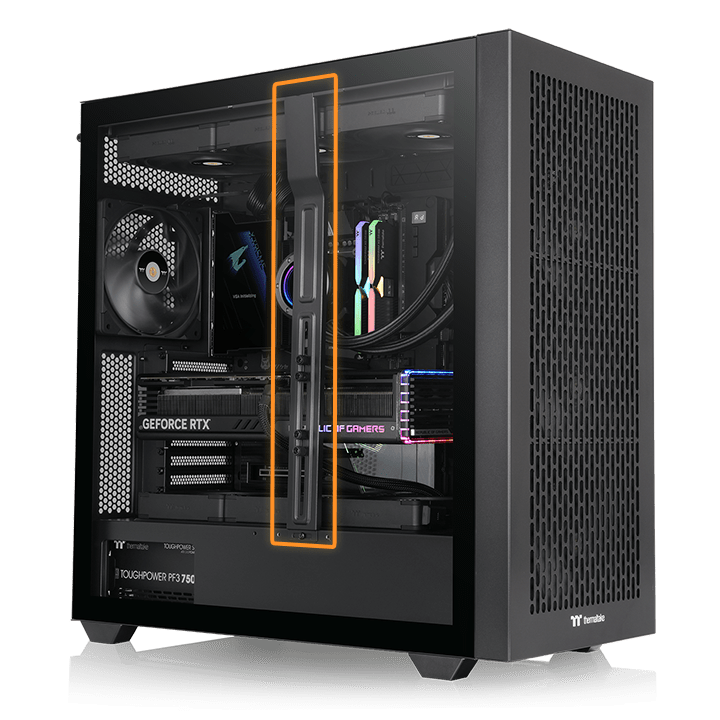

GPU Holder

The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

  • The image is for reference only.

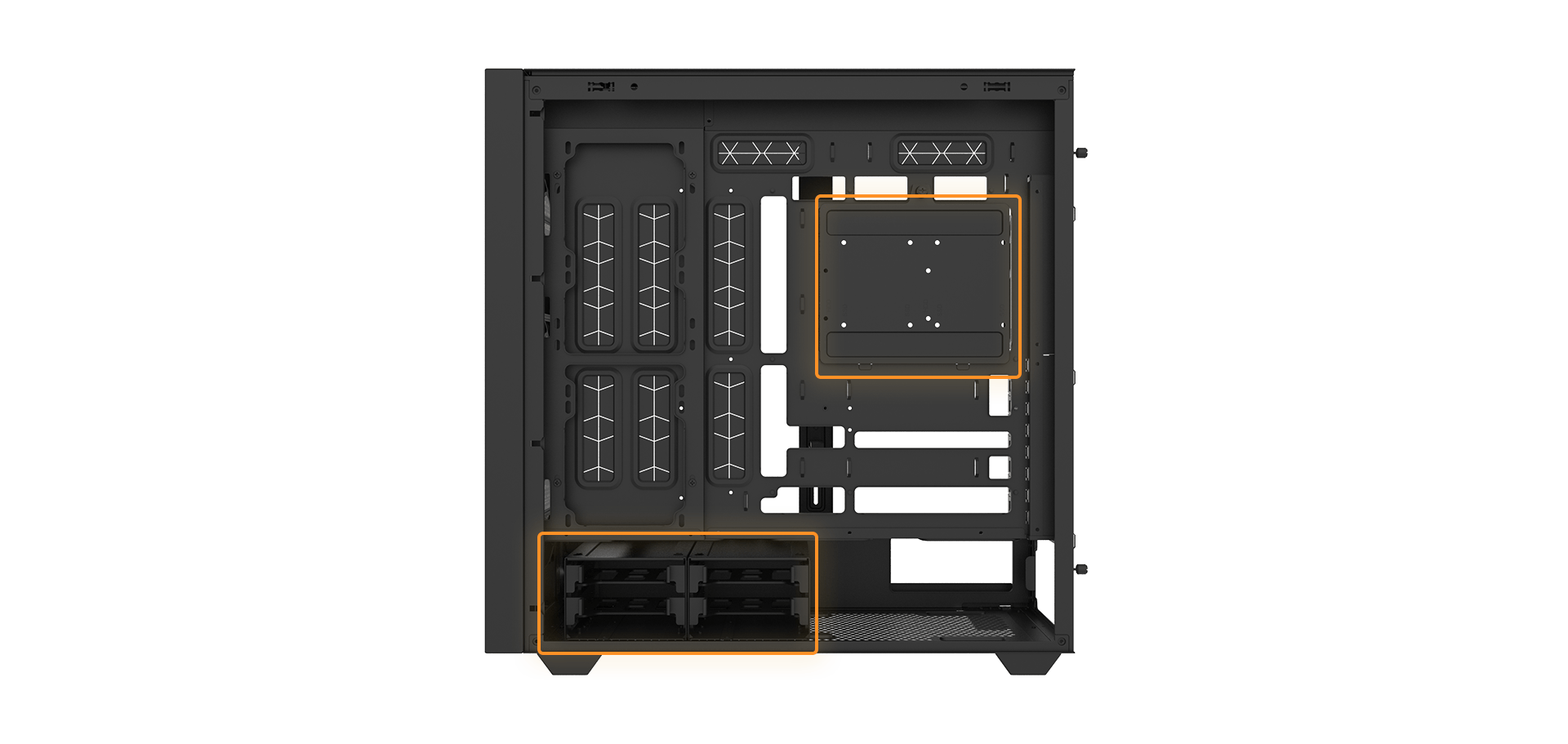

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5 or two 2.5 hard drives.

Drive Plate

1 x 3.5 HDD or
2 x 2.5 SSD

Drive Cages

4 x 3.5 HDD or
4 x 2.5 SSD

  • The image is for reference only.

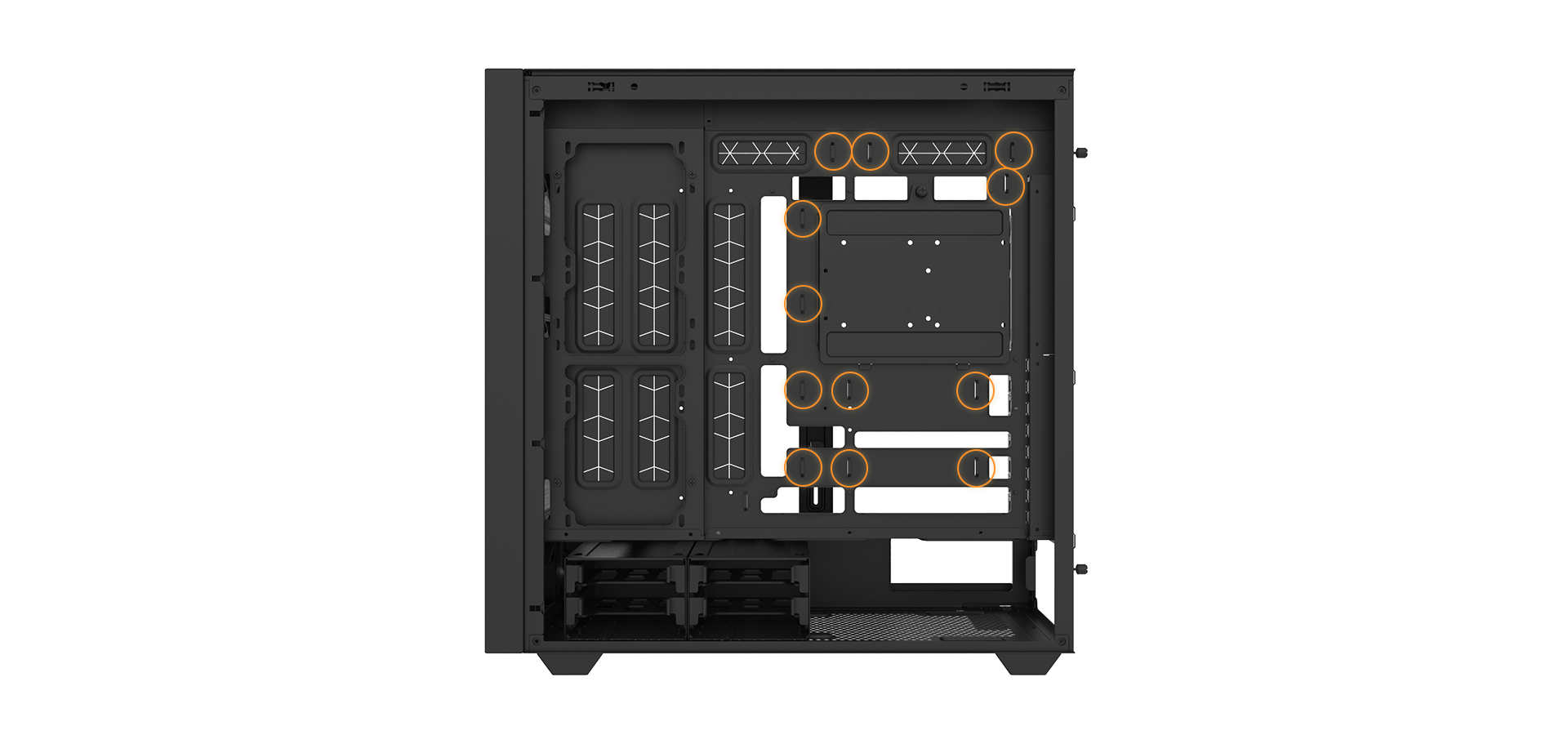

Tidy Cable Management

The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.

  • The image is for reference only.
Superior Hardware Support
The AX500 Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Dimensions
Fan Capacity
Radiator Capacity

Dimensions

550*248*548mm

CPU Cooler

Max height 185mm

Motherboard

6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) , 12 x 13 (E-ATX), SSI-CEB, SSI-EEB

PSU

Max length 200mm

GPU

Length limitation 460mm

Perfect Dust Protection

The AX500 Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

  • The image is for reference only.

Handy I/O Ports

The top I/O ports include:

  • 1 x USB 3.2 Gen 2 Type-C
  • 2 x USB 3.0 Type-A
  • HD Audio
  • Reset Button
  • HDD LED
  • Power Button with LED

  • The image is for reference only.

All-in-One Compatibility List

All-in-One Compatibility List
120mm240mm360mm140mm280mm420mm
Front
Top
Rear----

Fan Support List

Fan Support List
120mm140mm200mm
Front43-
Top33-
Right (M/B Side)32-
Power Cover3--
Rear11-
P/NCA-11D-00F1WN-00
SeriesAX Series
ModelAX500
CASE TYPEFull Tower
Dimension (H x W x D)550 x 248 x 548 mm
(21.7 x 9.8 x 21.6 inch)
PANELSteel + TG
ColorBlack
MATERIALSPCC
COOLING SYSTEM140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4
Drive Bays
-Accessible
-Hidden		5 x 3.5 , 1 x 2.5 or 6 x 2.5
EXPANSION SLOTS8
MOTHERBOARDS6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) ,
12 x 13 (E-ATX), SSI-CEB, SSI-EEB
Hidden-Connector Motherboard9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I/O PortUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (optional)
FAN SUPPORTFront:
4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Top:
3 x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Rear:
1 x 120mm , 1 x 140mm
Right:
3 x 120mm , 2x 120mm , 1x 120mm
2 x 140mm , 1x 140mm
Power Cover:
3 x 120mm , 2x 120mm , 1x 120mm
RADIATOR SUPPORTFront (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear(AIO):
1 x 120mm , 1 x 140mm
CLEARANCECPU cooler height limitation: 185mm(Max)
VGA length limitation:460mm(Max)
PSU length limitation: 200mm (Max)
