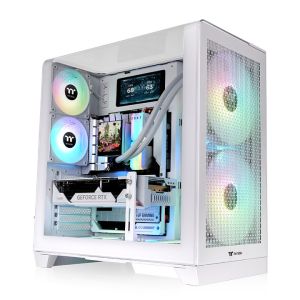

Thermaltake Thermaltake View 390 Air Curved Tempered Glass ATX Mid Tower Case Snow Edition

IMG 1 of 6
Our Price:
$248.45
RRP:
$259.00
You Save:
$10.55
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
554832
(?) Brand:
Thermaltake Web Site
Manuf No:
CA-11F-00M6WN-00
CA11F00M6WN00
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CA-11F-00M6WN-00, CA11F00M6WN00
The View 390 Air Snow Mid Tower Chassis is an ATX case with a curved tempered glass side/top panel, a perforated front panel, rotational PCI-E slots, a GPU bracket and two CT120 rear fans. An optional 6" LCD Screen Kit is available for enhanced visuals.
View 390 Air Mid Tower Chassis

The View 390 Air Mid Tower Chassis is an ATX case with a curved tempered glass side and top panel, a perforated front panel, rotational PCI-E slots, a GPU bracket and two CT120 rear fans. It can fit up to eleven 120mm fans, and supports a 360mm AIO radiator at the front or motherboard side. An optional 6" LCD Screen Kit can be added for real-time system information and enhanced visuals.

  • The image is for reference only.
The Tower 250 Mint Strawberry Mini Tower Chassis

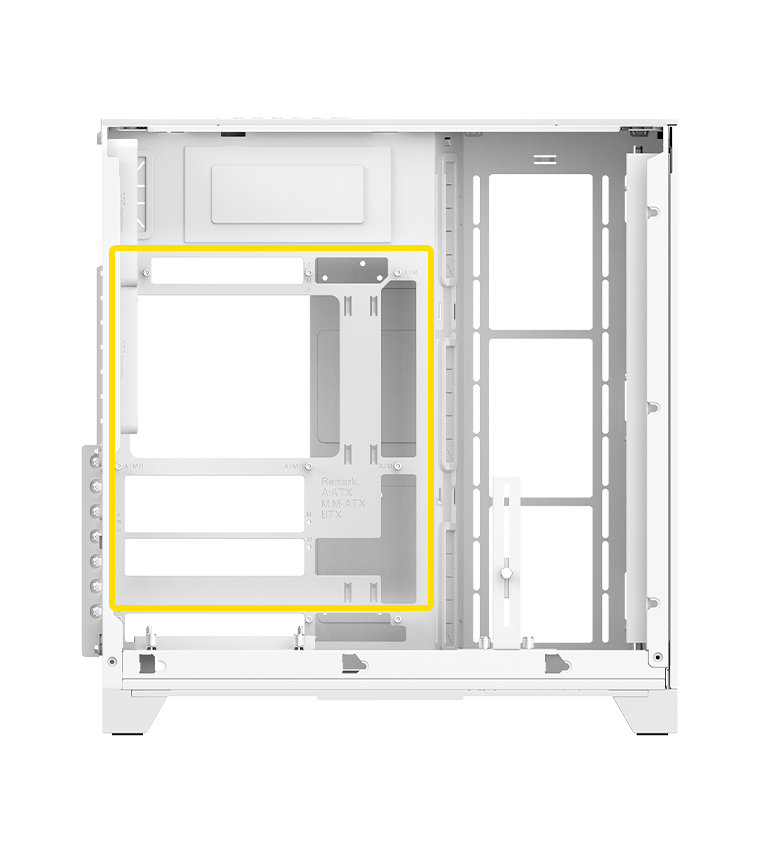

Compatible with Hidden-Connector Motherboards

Designed for next-gen builds, the View 390 Air Mid Tower Chassis supports both standard and hidden-connector motherboards from ASUS, MSI, and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

  • The image is for reference only.

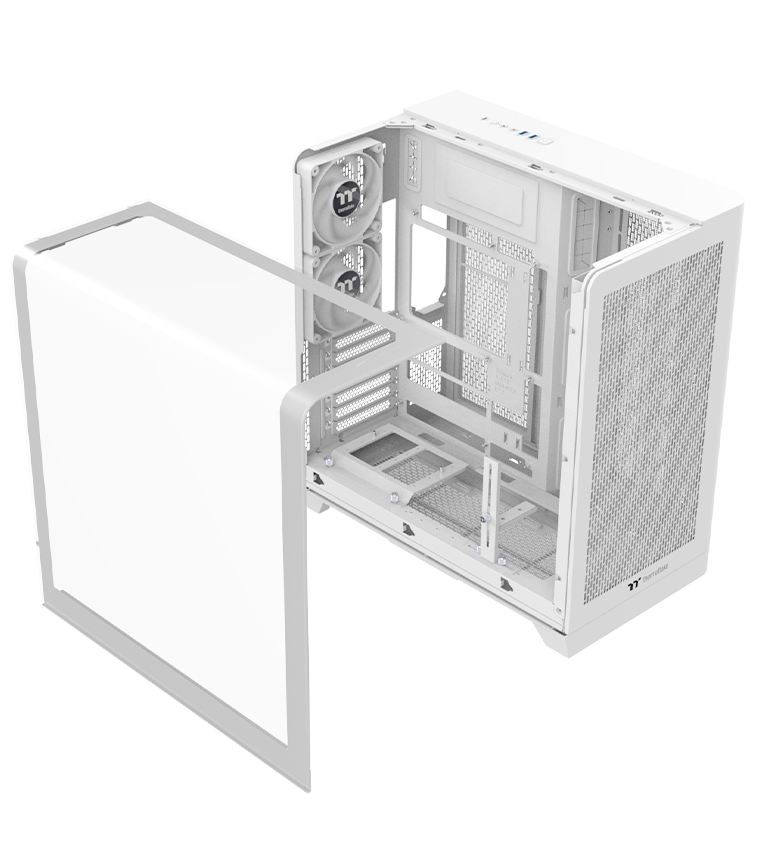

Curved Tempered Glass Side Panel

The View 390 Air Mid Tower Chassis features a 4mm curved tempered glass side panel for a distinctive look.

The Tower 250 Mint Strawberry Mini Tower Chassis
  • The image is for reference only.
The Tower 250 Mint Strawberry Mini Tower Chassis with cooling support

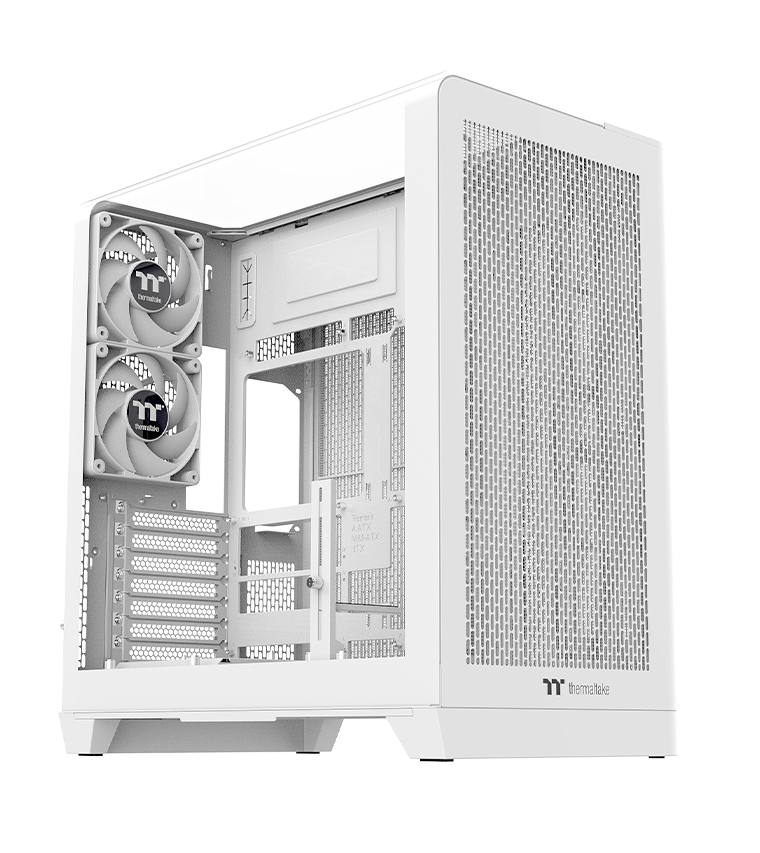

Two CT120 PC Cooling Fans Pre-installed

The View 390 Air Mid Tower Chassis features two 120mm PWM fans at the rear to provide good cooling performance.

  • The image is for reference only.

Good Cooling Support

The View 390 Air Mid Tower can support up to two 200mm fans at the front, up to eleven 120mm fans in total, and a 360mm AIO radiator at the front or the motherboard side, providing good cooling capability.

The Tower 250 Mint Strawberry Mini Tower Chassis with cooling support
  • The image is for reference only.

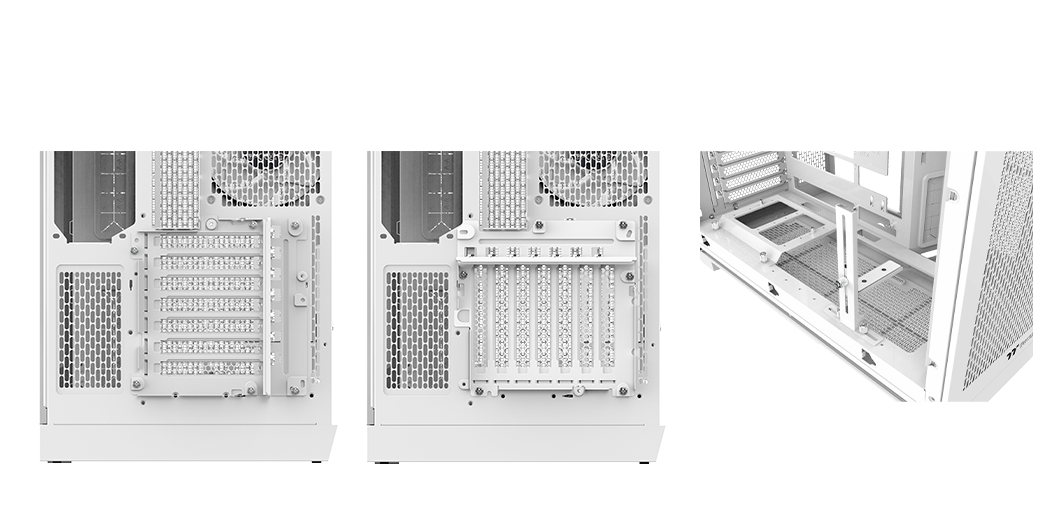

Display It Your Way

The rotatable PCI-E slots support both horizontal and vertical GPU mounting. An included GPU holder and riser cable bracket also help to support the GPU and prevent sagging.

Top view of The Tower 250 Mint Strawberry showing pre-installed 120mm PWM cooling fans
  • The image is for reference only.

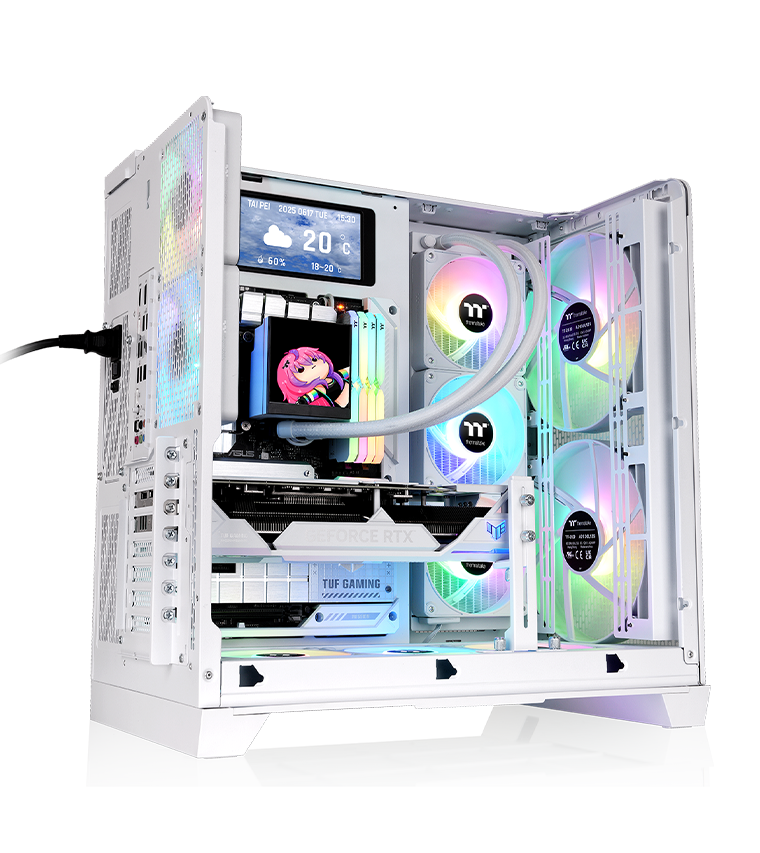

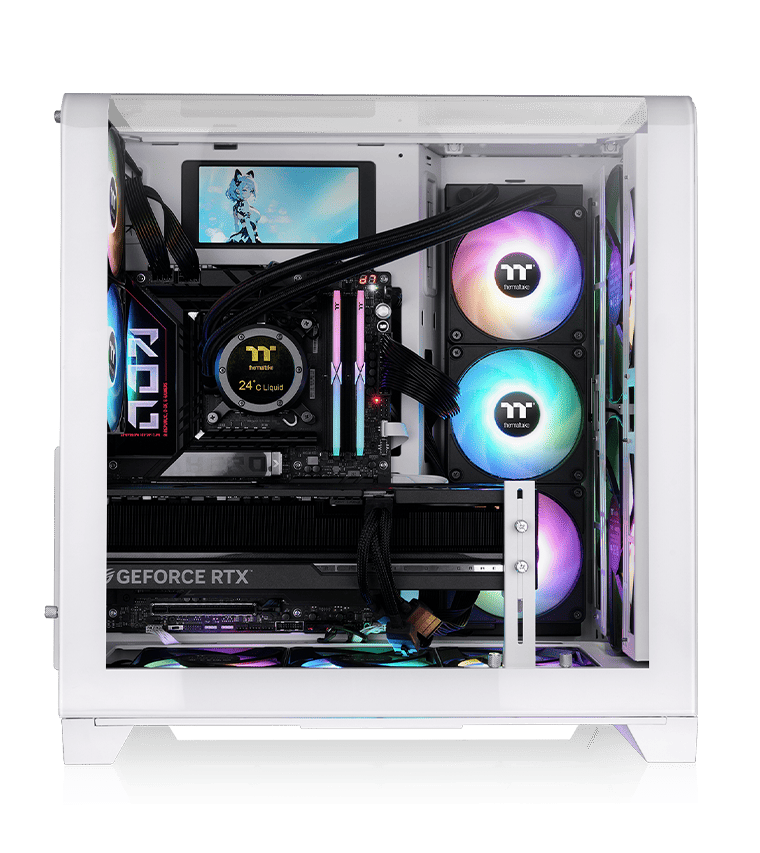

Visually Pleasing, Totally Interactive

Maximize your View 390 Airs visual effects by upgrading it with our LCD Screen Kit.

The 6 LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

The Tower 250 Mini Tower Chassis
  • The image is for reference only.
GF500 Flight Simulator Cockpit side view with adjustable components

Personalize Your LCD Display

Through the TT RGB Plus, the 6 LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

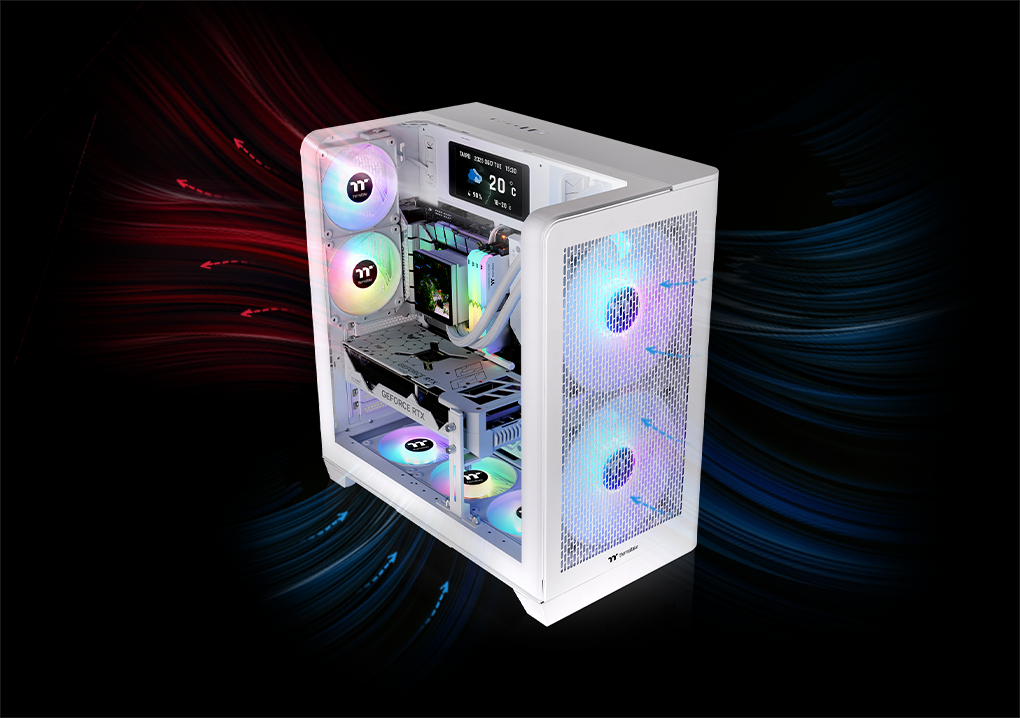

Air Intake and Exhaust

Thanks to the perforated front panel and two CT120 rear fans, View 390 Air Mid Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

The Tower 250 Mini Tower Chassis
  • The image is for reference only.

We've Tested Everything, So You Dont Have To

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 390 Air Mid Tower Chassis products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

ComponentModel
ChassisView 390 Air Snow
MotherboardASUS ROG Maximus Z890 Hero
CPUIntel Core Ultra9-285K Processor (TDP 250W)
GPUASUS ROG Strix GeForce RTX 5090 OC 32GB GDDR7
RAMTOUGHRAM Z-ONE RGB D5(16G x 2)
SSDSeagate SSD 120G
PSUToughpower TF1 1550W- TT Premium Edition
CPU CoolerTOUGHLIQUID V2 Ultra 360 AIO Liquid Cooler
FansAIO:
CT 120mm x 3
Chassis:
CT 120mm x 5
CT 200mm x 2
The Tower 250 Mini Tower Chassis

CPU & GPU Thermal Stress Test
View 390 Air

The Tower 250 Mini Tower Chassis
P/NCA-11F-00M6WN-00
SeriesView
CASE TYPEMid Tower
Dimension (H x W x D)503 x 287 x 485mm
(19.80 x 11.30 x 19.1inch)
PANEL4mm Tempered Glass x 1
ColorWhite
MATERIALSPCC
COOLING SYSTEMRear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2
Drive Bays2 x 3.5 , 1 x 2.5 or 3 x 2.5
EXPANSION SLOTS7(Rotatable Patented Design)
MOTHERBOARDS6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
Hidden-Connector Motherboard9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I/O PortUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (optional)
FAN SUPPORTFront:
3 x 120mm
2 x 140mm
2 x 200mm

Right:
3 x 120mm

Rear:
2 x 120mm

Bottom:
3 x 120mm
RADIATOR SUPPORTFront Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
CLEARANCECPU cooler height limitation:160mm

VGA length limitation:
390mm with Radiator /420mm without Radiator

PSU length limitation: 200mm (with 2.5 SSD)
260mm (without 2.5 SSD)
