80 PLUS certified, non-modular PSU built to ATX 3.1 specifications and supported by a 5-year warranty.

Power up with Efficiency and Stability

The Smart W3 series is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards, offering 500W, 600W, and 700W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.

ATX 3.1 Ready

Smart W3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

1.3X

Total Power
Excursion

GPU Power
Excursion

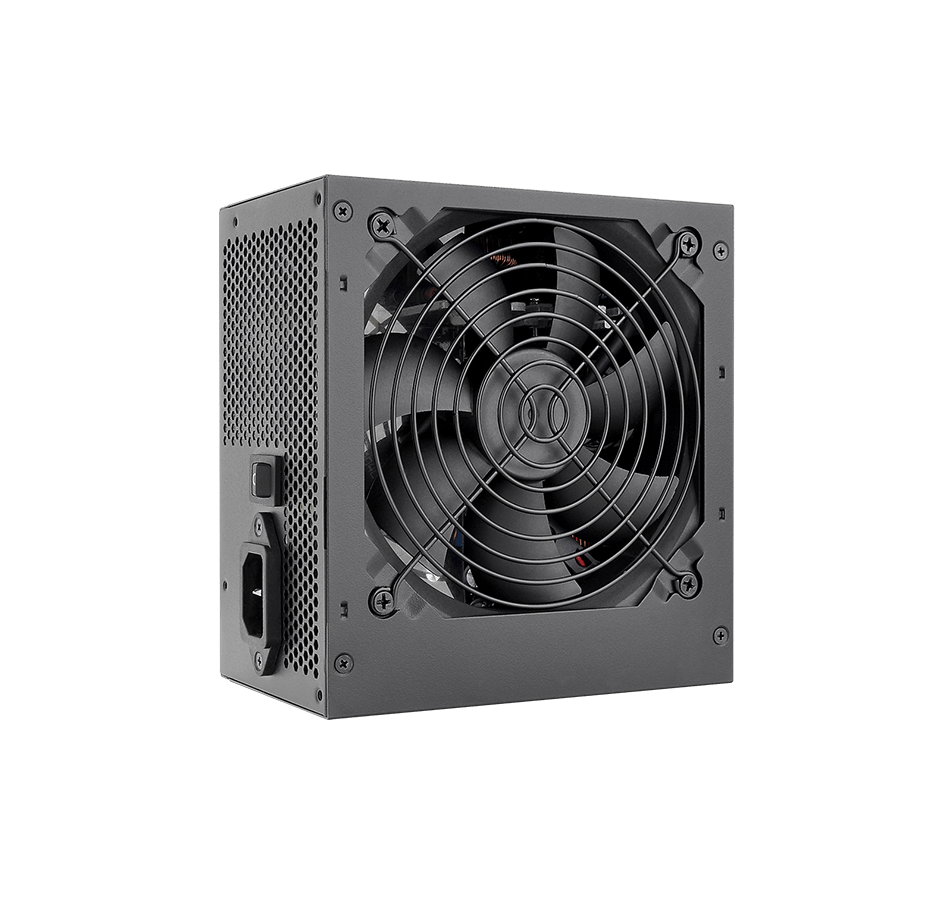

Silent Cooling

Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

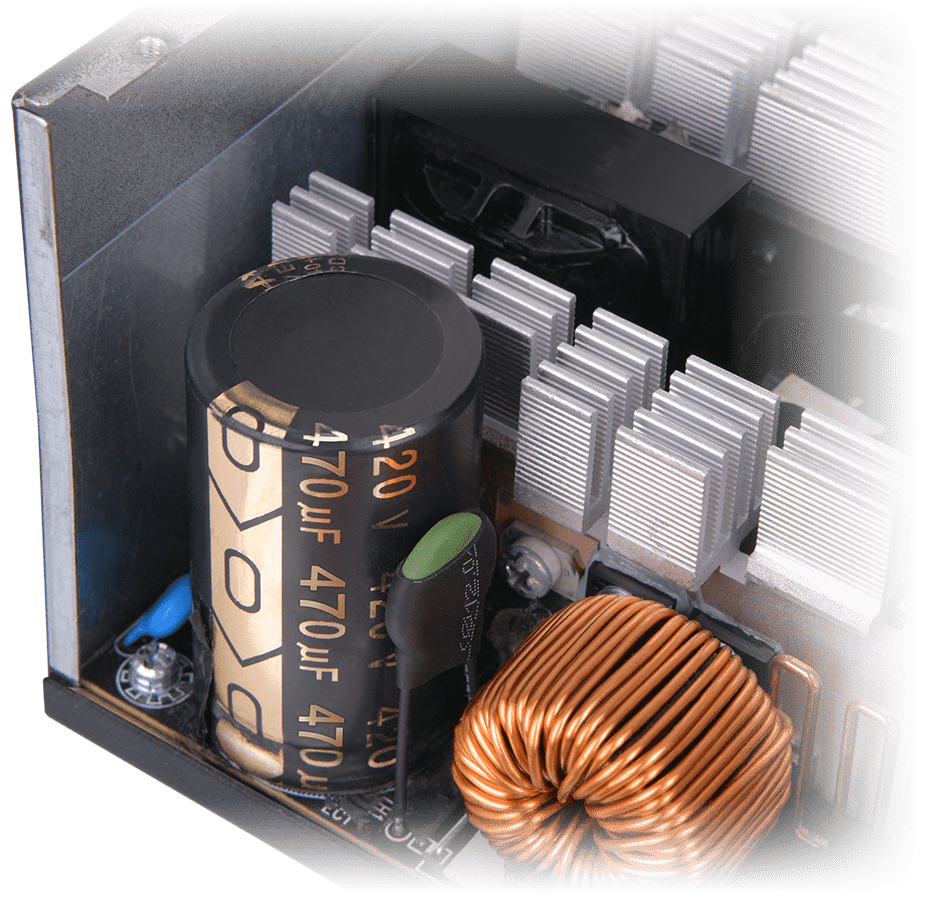

High Quality 105C/221F Main Capacitor

High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 series is stable and reliable.

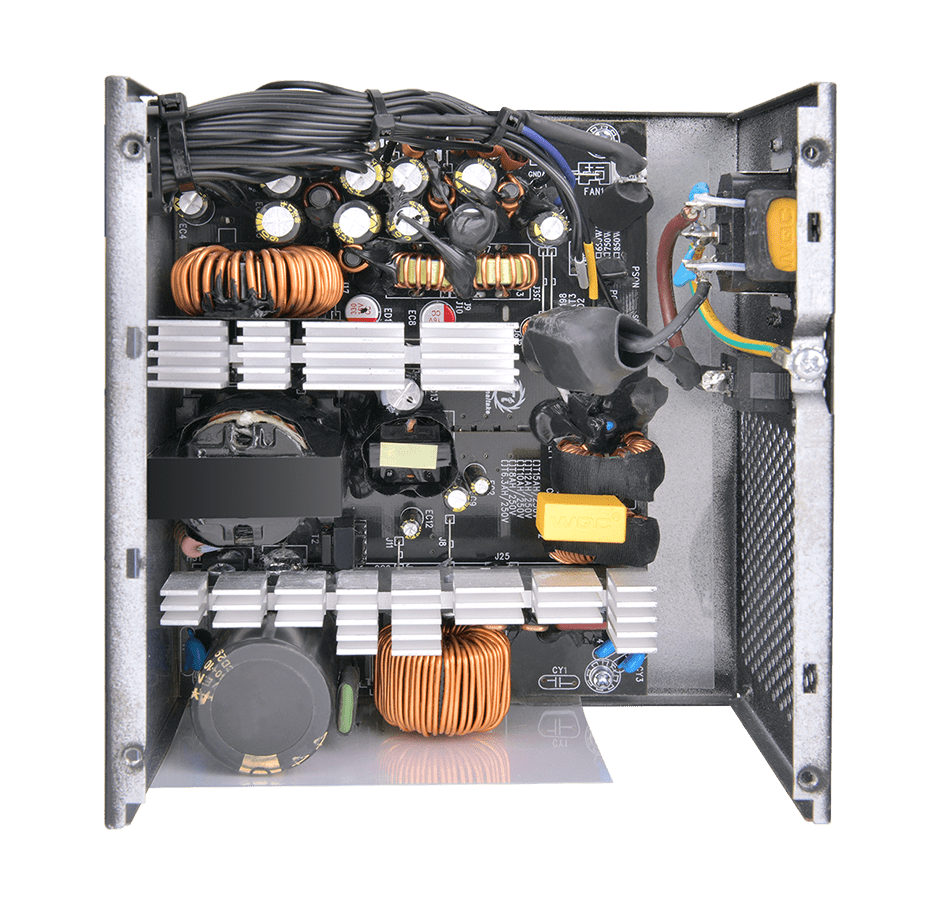

High Amperage Single +12V Rail & DC to DC Design

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT	Input Voltage: 100-240V Input Current: 12A - 5A Frequency: 50Hz / 60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
Max Output Current	16A	16A	50A	0.3A	3A
Max Output Power	105W		600W	3.6W	15W
Total Power	600W

Built-in Industrial Grade Protection

To protect the hardware, Smart W3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection

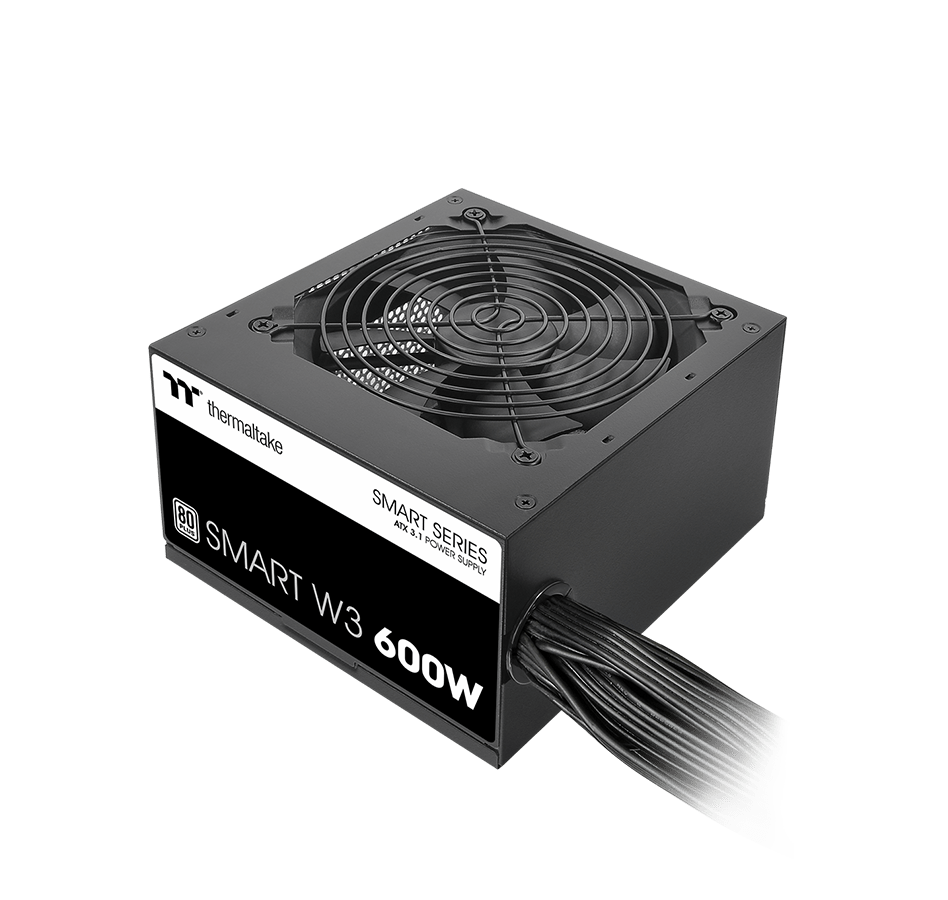

Non-Modular Soft Cable Design

Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	600mm
ATX 12V (4+4Pin)	X 1	X 1	650mm
PCIe (6+2Pin)	X 2	X 1	500mm+150mm
SATA (5Pin)	X 4	X 1	500mm+150mm+150mm+150mm
Peripheral (4Pin)	X 4	X 1	500mm+150mm +150mm+150mm

80 PLUS Certified and Intel C6/C7 States Ready

Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS. It has been optimized to work with all generations of Intels processors to achieve maximum energy saving.

P/N	PS-SPW-0600NNFAWA-1
Model	SP3-600AH2NLW
Watts	600W
Color	Black
Dimensions	150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-150 msec
Hold Up Time	> 17msec at 80% load
Input Current	12A - 5A
Input Frequency Range	50Hz/60Hz
Input Voltage	100-240V
Operating Temperture	5C to + 40C
Operating Humidity	20% to 85%, non-condensing
Storage Temperture	-40C to + 55C
Storage Humidity	10% to 95%, non-condensing
Cooling System	12cm FDB Fan
Efficiency	Meet 80 PLUS at 115Vac input.
MTBF	100
Safety Approval	CB/FCC/cTUVus/ICES
PCI-E 6+2PIN	2
Protection	OCP/OVP/UVP/OPP/OTP/SCP
