Thermaltake Thermaltake View 380 XL WS ARGB Mid Tower Case Snow Wood Edition

IMG 1 of 6
Our Price:
$217.35
RRP:
$229.00
You Save:
$11.65
or quickly purchase this product
Backorder
Part Number:
556650
(?) Brand:
Thermaltake Web Site
Manuf No:
CA-11E-00M6WN-WS
CA11E00M6WNWS
Shipping Weight:
12 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CA-11E-00M6WN-WS, CA11E00M6WNWS

The View 380 XL WS ARGB Snow Mid Tower Chassis is a dual-chamber ATX case, accented with stylish wood elements, featuring Hidden-Connector Motherboard support, three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and space for a 360mm radiator at both the top and motherboard side.

The View 380 XL WS ARGB Snow Mid Tower Chassis

The View 380 XL WS ARGB Snow Mid Tower Chassis is a dual-chamber ATX case accented with stylish wood elements. It supports Hidden-Connector Motherboards, comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and offers space for a 360mm radiator on both the top and motherboard side. With support for up to ten 120mm fans, a built-in GPU holder, convenient front I/O ports, a recessed bottom compartment, and an angled motherboard side design, it provides users with greater flexibility to create their ideal build.

  • The image is for reference only.
Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 380 XL WS ARGB Snow Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.


*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

  • The image is for reference only.
Dual Chamber Design
The dual chamber design provides more build space, better cable management, and improved airflow for better flexibility.
  • The image is for reference only.
Tempered Glass Front and Left Panels

The View 380 XL WS ARGB Snow Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.

  • The image is for reference only.

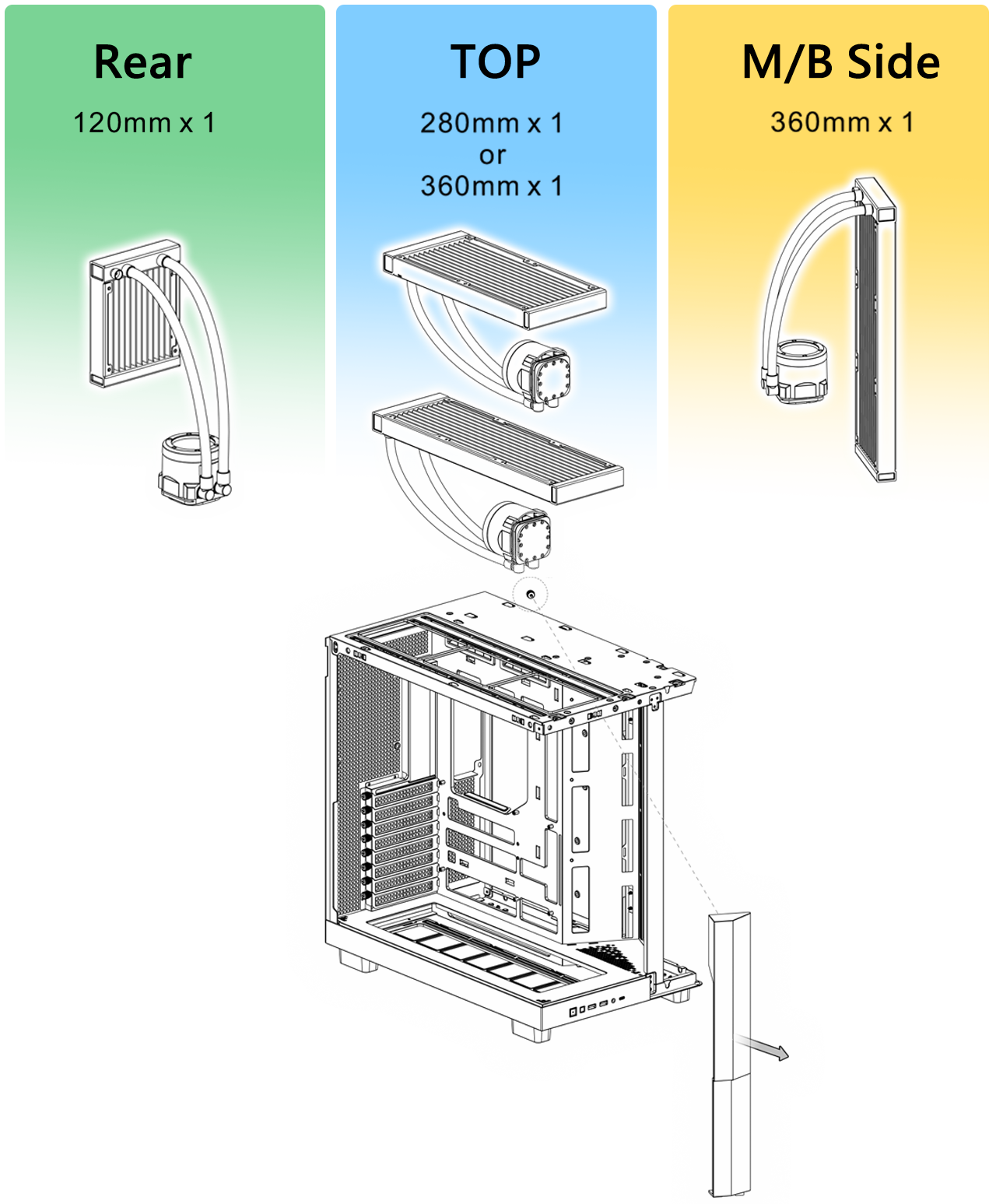

Good Radiator Support

Providing good cooling support, users can choose to place a 360mm/280mm radiator on the top or a 360mm radiator at the right of the View 380 XL WS ARGB Snow Mid Tower Chassis.



  • The image is for reference only.

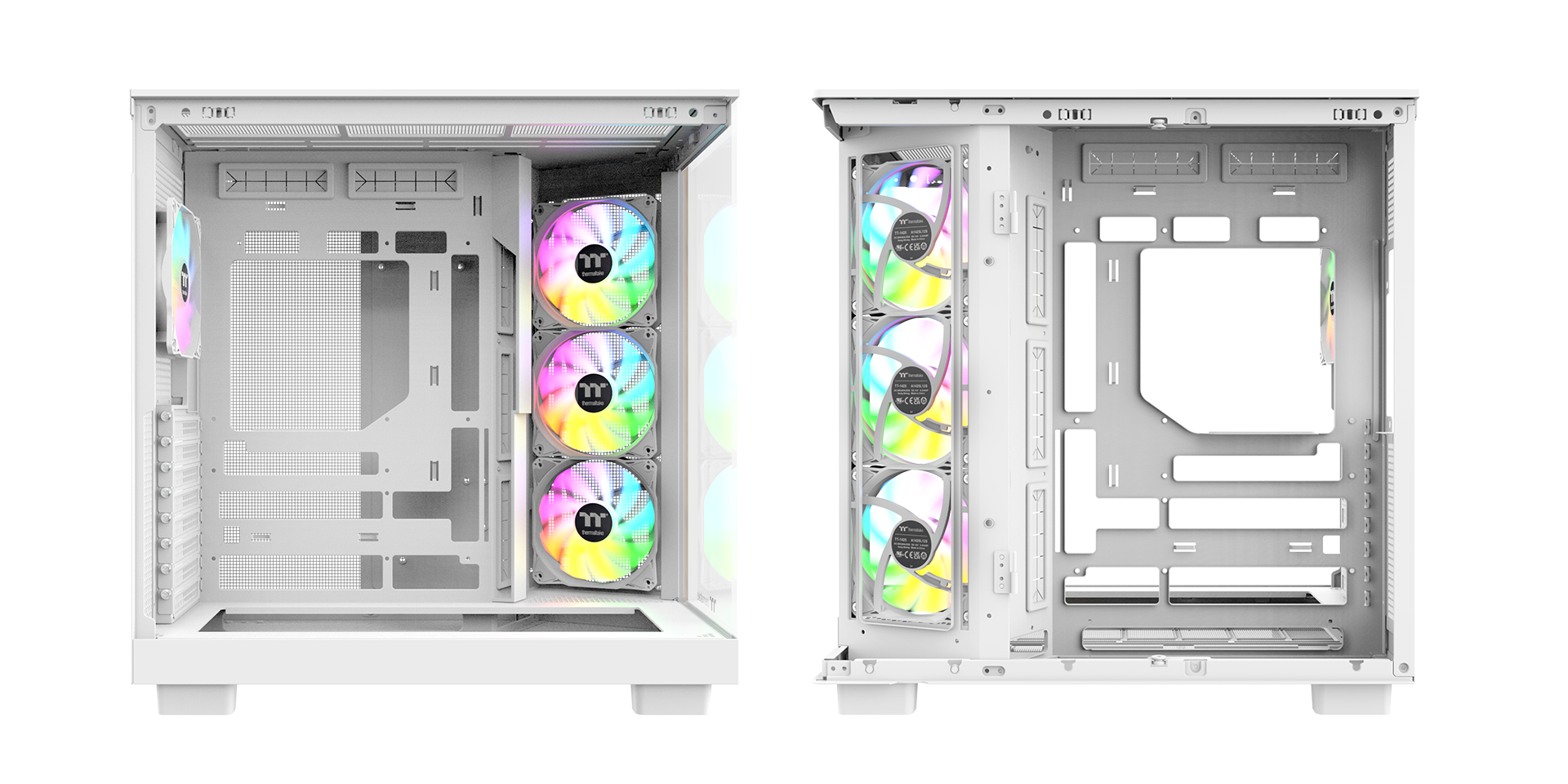

Pre-installed Fan System

The View 380 XL WS ARGB Snow Mid Tower Chassis comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

  • The image is for reference only.
Built-in GPU Holder

The built-in GPU holder prevents graphics card sagging with extra support.

  • The image is for reference only.
Flexibility to Build Your Ideal PC
The View 380 XL WS ARGB Snow Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 420mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and up to ten 120mm fans can be installed. For radiator compatibility, it can support up to a 360mm radiator at the top or the motherboard side, giving more options for high-end expansion!
Dimensions
PSU Support
Fan Capacity
Radiator Capacity

CPU Cooler

Max height 160mm

Motherboard

6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)

VGA

Length limitation
420mm
  • The image is for reference only.
Storage Support
For storage compatibility, the View 380 XL WS ARGB Snow Mid Tower Chassis gives maximum support of up to three 2.5 SSDs or one 3.5 HDD in total.
  • The image is for reference only.
Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type-C and one HD Audio are placed on the top panel to grant direct access when needed.

  • The image is for reference only.
All-in-One Compatibility List
All-in-One Compatibility List
120240360140280420
Front------
Top-
Right---
Rear-----
Bottom------

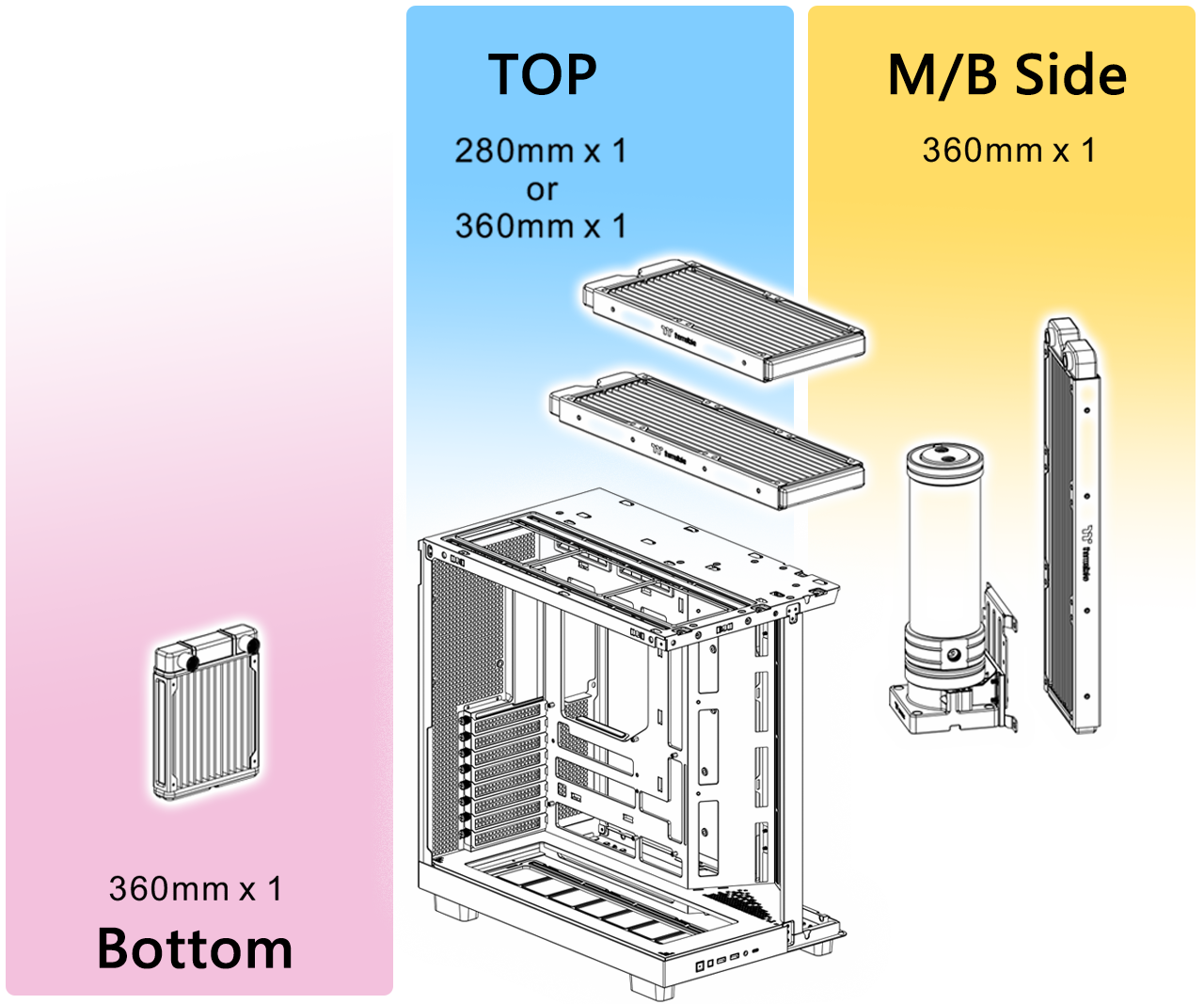

DIY Liquid Cooling Compatibility
DIY Liquid Cooling Compatibility
120240360140280420
Front------
Top-
Right---
Rear-----
Bottom------

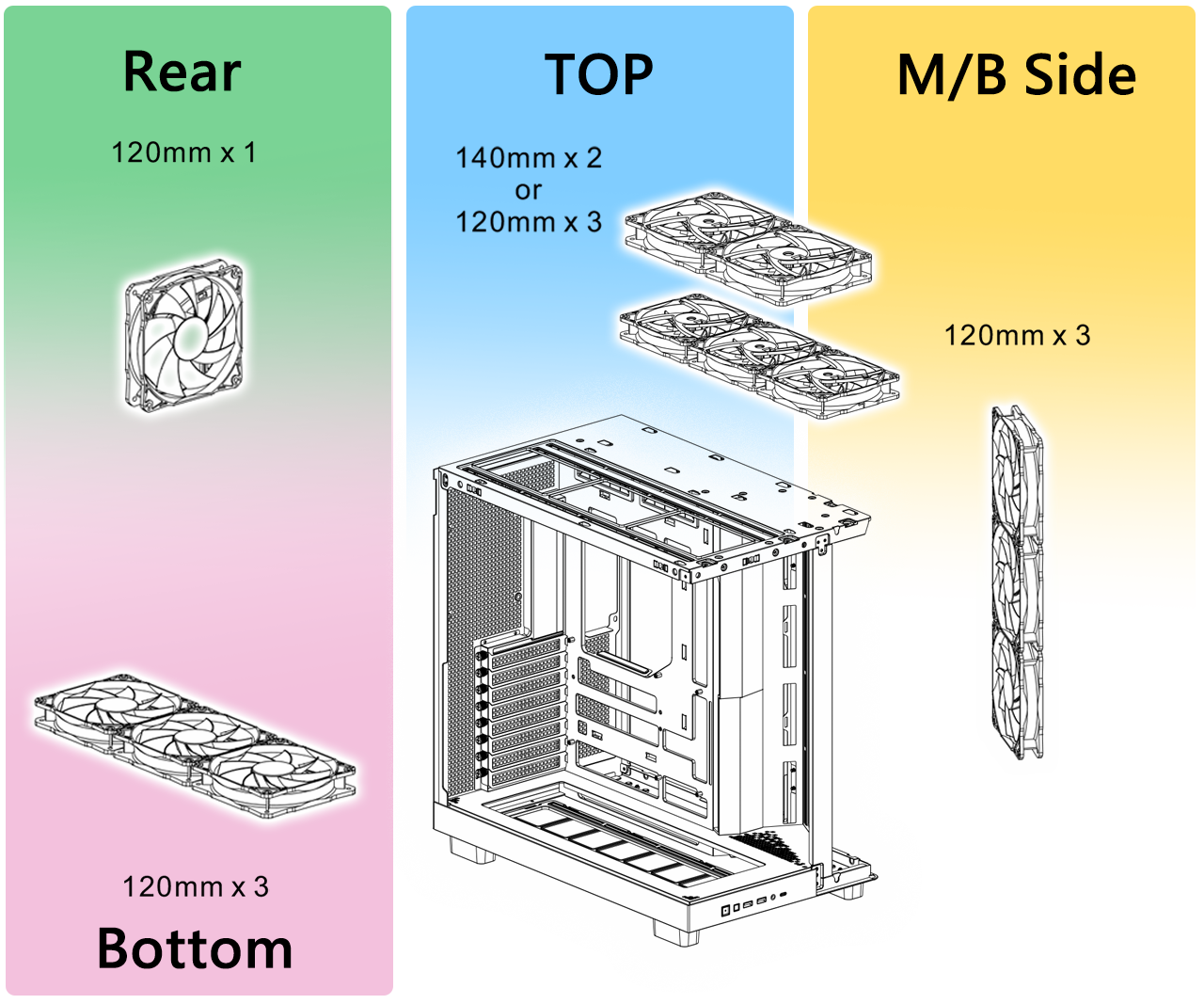

Fan Compatibility List
Fan Compatibility List
120mm140mm200mm
Top32-
Right(M/B Side)3--
Rear1--
Power Cover3--
P/NCA-11E-00M6WN-WS
SeriesView
ModelView 380 XL WS ARGB
CASE TYPEMid Tower
Dimension (H x W x D)471x 288 x 473 mm
(18.54 x 11.34 x 18.62 inch)
PANEL4mm Tempered Glass x 2
Colorsnow
MATERIALSPCC
COOLING SYSTEMRight(intake):
120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays1 x 3.5, 2 x 2.5 or 3 x 2.5
EXPANSION SLOTS8
MOTHERBOARDS6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
Hidden-Connector Motherboard9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I/O PortUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (optional)
FAN SUPPORTTop:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORTTop:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm
CLEARANCECPU cooler max height: 160mm

VGA max length: 420mm

PSU max length: 180mm
