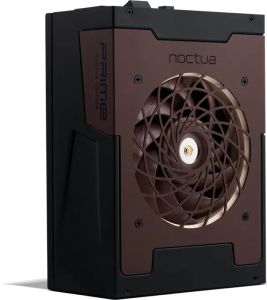

Seasonic Seasonic PRIME TX-1600 Noctua Edition - AU

IMG 1 of 11
Our Price:
$1,005.70
or quickly purchase this product
Backorder
Part Number:
556889
(?) Brand:
Seasonic
Manuf No:
SS Prime TX-1600 AU
SS Prime TX1600 AU
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SS Prime TX1600 AU, SS Prime TX-1600 AU

Ultra-quiet Noctua edition

With Cybenetics Lambda A++ sound level rating

Renowned NF-A12x25 120mm fan

Runs ~8-10dB(A) quieter than the regular model's fan

Titanium level energy efficiency

Reduces waste heat and power consumption

Seasonic is renowned as one of the leading manufacturers of premium grade PC power supplies and PRIME TX is their award-winning, 80 PLUS Titanium certified flagship series featuring state-of-the-art electronic designs, first-class quality components, cutting-edge performance and exceptional efficiency. The Noctua Edition of the top-end TX-1600 model uses this superb platform and combines it with the iconic, groundbreakingNF-A12x25fan as well as a custom designed, highly optimised fan grill, which enable it to run ~8-10dB(A) quieter than the already quiet standard model. Thanks to its semi-passive fan control setup, the TX-1600 Noctua Edition will operate fully passive up to around 50% load at typical ambient temperatures (25C) and only start ramping up the fan slowly as the load or temperature levels increase. This makes it a fantastic choice not only for power-hungry high-end builds, but also for silent systems that do not require as much as 1600W and will therefore have the PSU running mostly with the fan switched off or at near-inaudible speed levels. Even at 100% load, the Noctua Edition runs whisper quiet at ambient temperatures up to 25C, producing only ~24dB(A) versus ~34dB(A) for the regular model. This massive reduction in noise emission is reflected in an upgrade of Cybenetics Lambda average noise level score from A to A++. Topped off with ATX 3.1 and PCIe 5.1 support as well as fully modular, Noctua-themed cables, the Seasonic PRIME TX-1600 Noctua Edition is the ultimate choice for highly demanding PC enthusiasts who require uncompromising quality, class-leading performance and exceptional quietness of operation.
Key specifications
Form factor
ATX / EPS
Dimensions
210 x 150 x 86 mm
Max. combined power
1600W (+12V), 125W (3.3V+5V), 6W (-12V), 15W (5Vsb)
Connectors
1x 20/24-pin (MB), 2x 12V-2x6 (12+4 Pins to 12+4 Pins), 3x 4/8-pin ATX12V, 6x 6/8-pin PCIe, 18x S-ATA, 3x P-ATA (IDE)
ATX specification
ATX 3.1 & PCIe 5.1
Average efficiency
94 %
80 PLUS
80 PLUS Titanium
Cybenetics
ETA-Titanium (115V / 230V), Lambda A++ (115V / 230V))
Protection features
OCP (Over current protection), OPP (Over power protection), OTP (Over temperature protection), OVP (Over voltage protection), SCP (Short-circuits protection), UVP (Under voltage protection)
Warranty
12 years

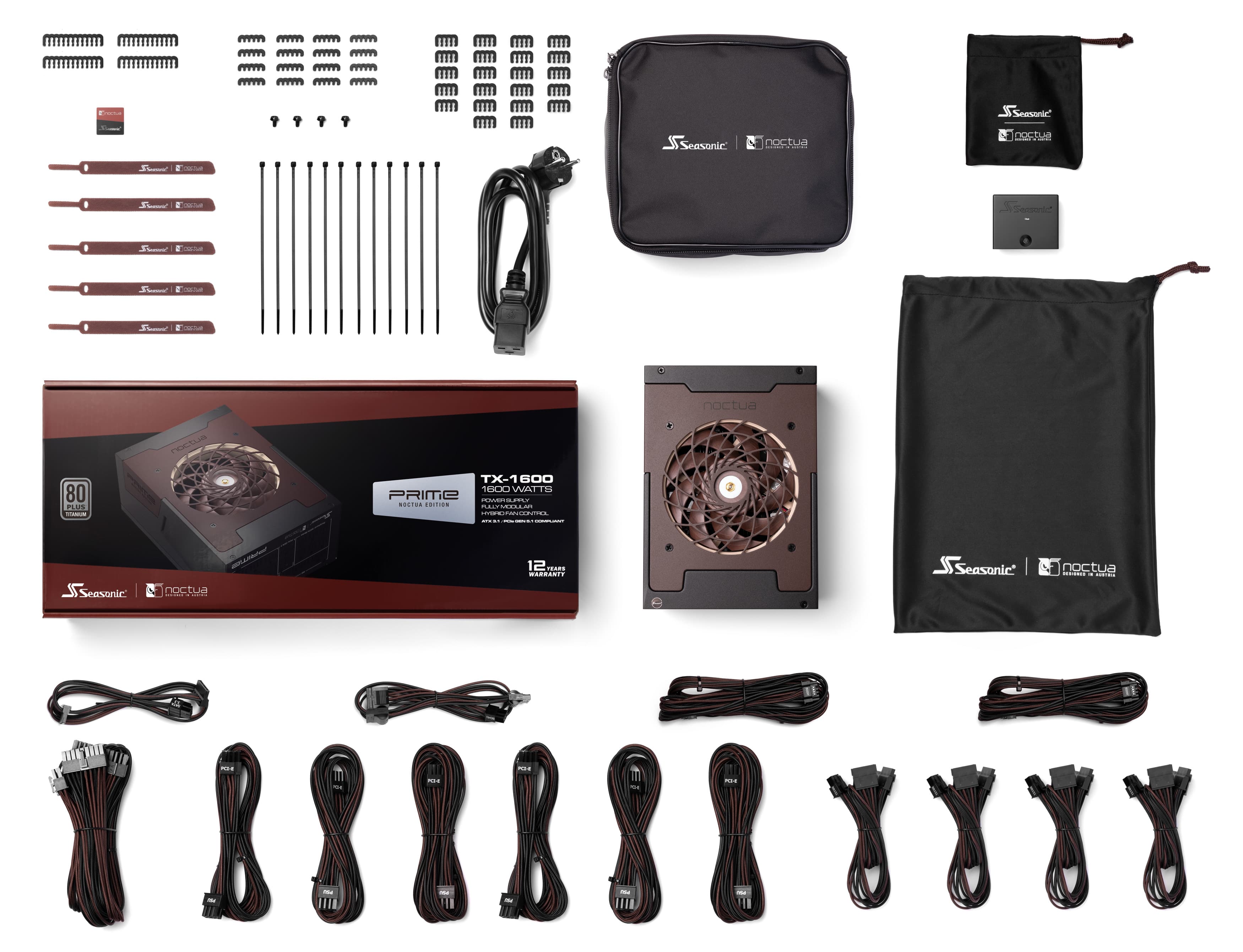

Scope of delivery
  • PRIME TX-1600 Noctua Edition power supply
  • Modular cables in Noctua Brown colour scheme
Fan: NF-A12x25 HS-PWM
Size (Form factor)
120 x 120 x 25 mm (square)
Speed range
0 2400 rpm
Airflow (max.)
117.6 m/h (69.22 CFM)
Acoustical noise (max.)
28.8 dB(A)
Static pressure (max.)
3.28 mm HO
Rated voltage
12 V
Connector
4-pin
Colour
Brown
Warranty
6 years
Mechanical specifications
Form factor
ATX / EPS
Dimensions
210 x 150 x 86 mm
Connectors
1x 20/24-pin (MB), 2x 12V-2x6 (12+4 Pins to 12+4 Pins), 3x 4/8-pin ATX12V, 6x 6/8-pin PCIe, 18x S-ATA, 3x P-ATA (IDE)
Cable management
fully modular
Cable type
Individually Sleeved Black and Brown Cables
Electrical specifications
Input voltage range
100~240 V AC
Input frequency
50-60 Hz
Input current range
10~15A
Max. combined power
1600W (+12V), 125W (3.3V+5V), 6W (-12V), 15W (5Vsb)
Average efficiency
94 %
Safety, compliance & environmental specifications
ATX specification
ATX 3.1 & PCIe 5.1
80 PLUS
80 PLUS Titanium
Cybenetics
ETA-Titanium (115V / 230V), Lambda A++ (115V / 230V))
Operating temperature
0-50 C
MTBF @ 25 C, excl. fan
> 100,000 h
Protection features
OCP (Over current protection), OPP (Over power protection), OTP (Over temperature protection), OVP (Over voltage protection), SCP (Short-circuits protection), UVP (Under voltage protection)
Safety and EMC
cTVus, TV, CB, CCC, BSMI, CE, FCC, UKCA
Environmental compliance
REACH, RoHS, Energy Star, ErP Lot 6, WEEE
