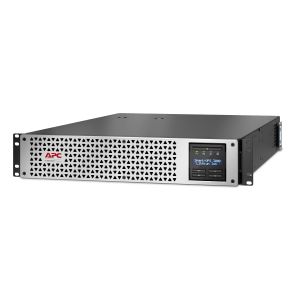

APC APC Smart-UPS Line Interactive 3000VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect, w/Network Management Card, AVR, LCD

IMG 1 of 4
Our Price:
$5,362.80
RRP:
$6,325.00
You Save:
$962.20
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557273
(?) Brand:
APC Web Site
Manuf No:
SMTL3000RMI2UCNC
Shipping Weight:
41.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SMTL3000RMI2UCNC, UPASMTL3000RMI2UCNC, UPA-SMTL3000RMI2UCNC, 731304643180, 5943236
3000VA/2700W line interactive sine wave 2U rackmount UPS
Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
Cloud-based remote power monitoring via SmartConnect Ethernet Port
1-Year Secure Network Management Card subscription included

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Overview
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 270-2700 W
5min 19s
Max. Capacity Used
100 %
Product or component typeUninterruptible power supply (UPS)
Complementary
Communication port typeSmartConnect Ethernet port
Software packageSmartConnect software for remote power monitoring feature availability varies by terms of use
Mounting modeRack-mounted with included kit
UPS connectivitySerial port
USB port
SmartConnect port
Pre-installed network management card 3
Battery typeLi-Ion (Lithium-Ion) internal included
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLi-Ion (Lithium-Ion)
Battery graph commentsThis graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime0
Battery recharge time2 h
Number of battery replacement quantity1
Battery design life810 year(s)
Battery charger power216 W rated
General
Provided equipmentRack mounting brackets
Rack mounting support rails
Screw
Washer
USB cable
Ethernet patch cable
Number of power module0
product web sub-familyCloud-enabled monitoring
RedundantNo
Physical
Number of rack unit2U
ColourBlack with silver front bezel
Height86 mm
Width432 mm
Depth683 mm
Net weight33.3 kg
Mounting preferenceLower
Mounting modeRack-mounted
USB compatibleYes
Input
Main Input Voltage230 V AC 1 phase
Other Input Voltage220 V
240 V
Input Connection TypeIEC 60320 C20
Input protection typeCircuit breaker
Input voltage limits160...286 V
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Output
Main Output Voltage230 V AC 1 phase
Other Output Voltage220 V
240 V
Rated power in W2700 W
rated power in VA3000 VA
output connection type8 IEC 60320 C13
1 IEC 60320 C19
Crest factor3 : 1
Maximum configurable power in VA3000 VA
Maximum configurable power in W2700 W
Transfer time6 ms typical : 10 ms maximum
UPS typeLine interactive
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certificationsUK PSTI
Environmental
Acoustic level55 dB
Operating altitude0...10000 ft
Ambient air temperature for operation040 C
Ambient air temperature for storage-1545 C
Storage altitude07620 m
IP degree of protectionIP20
Relative humidity095 % non-condensing
Storage Relative Humidity095 % non-condensing
Communications & Management
AlarmAudible and visible alarms
Control panelMultifunction LCD status and control console
Emergency power offYes
Free slots1
Preinstalled deviceNetwork management card 3 with environmental monitoring
Communication port supportSmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
AlarmAlarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rate739 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height45.8 cm
Package 1 Width60 cm
Package 1 Length98 cm
Package 1 Weight41.5 kg
Contractual warranty
Warranty (in months)60
