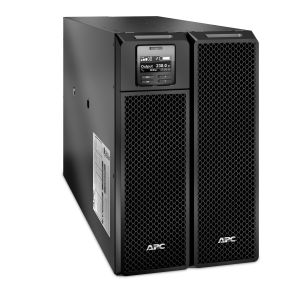

APC APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A IEC outlets, Network Card+SmartSlot, Extended runtime, W/ custom PDU, W/ rail kit

IMG 1 of 1
Our Price:
$14,278.80
RRP:
$16,940.00
You Save:
$2,661.20
or quickly purchase this product
Backorder
Part Number:
557274
(?) Brand:
APC Web Site
Manuf No:
SRT10RMXLIX806
Shipping Weight:
130 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SRT10RMXLIX806, UPASRT10RMXLIX806, UPA-SRT10RMXLIX806, 4343572, 731304334507
Replacement battery (1)is available
10kVA/10kW double-conversion on-line pure sine wave 6U rackmount UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit included)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192RMBP2) for extended runtime

Specifications

Overview
PresentationProven Industrial UPS power protection for control applications and harsh environments.
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 1000-10000 W
3min 45s
Max. Capacity Used
100 %
Main Input Voltage230 V
400 V 3 phases
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
240 V
380 V
415 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
Rated power in W10000 W
rated power in VA10000 VA
output connection type4 IEC 60309 32 A
Output connector typeHard wire 3-wire (H N + E) for 1 zone(s)
Number of rack unit6U
Provided equipmentCD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
USB cable
Warranty card
Web/SNMP management card
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLead-acid battery
Extended runtime1
Number of battery filled slots0
Battery recharge time1.5 h
Number of battery replacement quantity2
Battery life35 year(s)
Replacement battery
APCRBC140
Battery charger power1195 W rated
General
Number of power module filled slots0
Number of power module free slots0
product web sub-familyHigh density
RedundantNo
UPS typeDouble conversion online
Physical
ColourBlack
Height263 mm
Width432 mm
Depth715 mm
Net weight111.82 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted
Two post mountable0
USB compatibleYes
Input
Input voltage limits100...275 V adjustable (half load)
173...476 V adjustable (half load)
Number of input connectors1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
Network frequency40...70 Hz auto-sensing
Output
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Harmonic distortionLess than 2 %
Maximum configurable power in VA10000 VA
Maximum configurable power in W10000 W
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certificationsCE
EAC
IRAM
RCM
VDE
MarkingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level55 dBA
Heat dissipation1947 Btu/h
Operating altitude0...10000 ft
Ambient air temperature for operation040 C
Ambient air temperature for storage-1545 C
Storage altitude015240 m
IP degree of protectionIP20
Relative humidity095 % non-condensing
Storage Relative Humidity095 % non-condensing
Communications & Management
Emergency power offYes
Free slots1
AlarmAudible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate480 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height46.1 cm
Package 1 Width100 cm
Package 1 Length60 cm
Package 1 Weight130 kg
Contractual warranty
Warranty (in months)24 Battery|36 UPS
