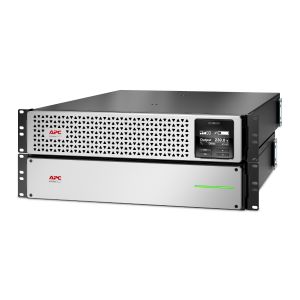

APC APC Smart-UPS On-Line, 1500VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included

IMG 1 of 8
Our Price:
$7,696.65
RRP:
$8,275.00
You Save:
$578.35
or quickly purchase this product
Backorder
Part Number:
557277
(?) Brand:
APC Web Site
Manuf No:
SRTL1500RM4UXLI
Shipping Weight:
40.7 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SRTL1500RM4UXLI, UPASRTL1500RM4UXLI, UPA-SRTL1500RM4UXLI, 731304508953, 5629788
Double Conversion On-Line Topology
1350W 1500VA
Lithium-ion Extended Long Runtime Battery Pack with Intelligent Battery Management System
Rack/Tower Convertible Form Factor
Switched Outlet Groups

Description

At 1350W/1500VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.

Specifications

Overview
PresentationHigh density, double-conversion on-line power protection with long runtime.
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 135-1350 W
1h 18min
Max. Capacity Used
100 %
Main Input Voltage230 V AC 1 phase
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
Main Output Voltage230 V AC 1 phase
Other Output Voltage220 V
Rated power in W1350 W
Rated power in VA1500 VA
Input Connection TypeIEC 60320 C14
output connection type8 IEC 60320 C13
Number of rack unit4U
Cable length1.8 m
Number of cables1
Range of productSmart-UPS On-Line
Complementary
Battery typeLi-Ion (Lithium-Ion) internal included
UPS connectivitySerial port
USB port
Mounting modeRack-mounted with included kit
Batteries & Runtime
Run Time
View Runtime Graph
Battery typeLi-Ion (Lithium-Ion)
Battery voltage48 V
Extended runtime1
Number of battery filled slots0
Number of battery free slots0
Battery life510 year(s)
Battery charger power103 W rated
General
Number of power module filled slots0
Number of power module free slots0
product web sub-familyLithium-Ion
RedundantNo
UPS typeDouble conversion online
Physical
ColourBlack with silver front bezel
Height85 mm
Width432 mm
Depth560 mm
Net weight13.7 kg
Mounting preferenceNo preference
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes
Mounting positionHorizontal
Vertical
Input
Input voltage limits160...275 V
Network frequency40...70 Hz auto-sensing
Output
Bypass typeBuilt-in bypass
Crest factor3 : 1
Harmonic distortionLess than 2 %
Maximum configurable power in VA1500 VA
Maximum configurable power in W1350 W
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certificationsCE
UK PSTI
MarkingCE Mark
Environmental
Acoustic level50 dBA
Heat dissipation450 Btu/h
Operating altitude0...10000 ft
Ambient air temperature for operation040 C
Ambient air temperature for storage-1545 C
Storage altitude015240 m
IP degree of protectionIP20
Relative humidity095 % non-condensing
Storage Relative Humidity095 % non-condensing
Communications & Management
Emergency power offYes
Free slots1
AlarmAudible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate340 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height24.5 cm
Package 1 Width60 cm
Package 1 Length81 cm
Package 1 Weight21 kg
Contractual warranty
Warranty (in months)60
